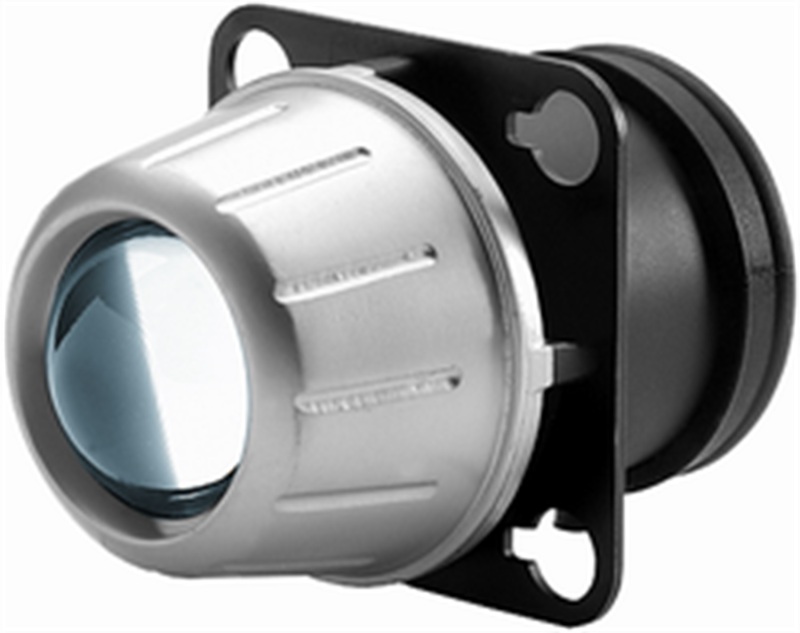

Hella Micro DE Premium Halogen H7 Low Beam 12V SAE Lo Headlamp w/ Bulb and Stone Shield
Hella Micro DE Premium Halogen H7 Low Beam 12V SAE Lo Headlamp w/ Bulb and Stone Shield
A$385.88
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
This headlamp series has been developed to provide top levels of light output with compact dimensions. A solution for a practical assembly was also important as was a distinctive appearance. We use lens systems in the low beam headlamp and fog lamp. The low beam has a pattern-free lens, while the fog lamp has the familiar structure of the Micro DE headlamp. The low beam and the fog lamp are realised in halogen design.
Product Overview
This headlamp series has been developed to provide top levels of light output with compact dimensions. A solution for a practical assembly was also important as was a distinctive appearance. We use lens systems in the low beam headlamp and fog lamp. The low beam has a pattern-free lens, while the fog lamp has the familiar structure of the Micro DE headlamp. The low beam and the fog lamp are realised in halogen design.
Features and Benefits
- Compact Modular 50mm System Design
- Universally usable
- Includes 3 Point Mounting Frame
- Adjustable From The Front And Rear Of The Lamp
- Modular Fog Lamp Also Available
Product Details
| Assy./disassy. by qualified personnel required!: | . |
|---|---|
| Assy/Disassy by Qualified Personnel Required!: | . |
| Bulb Color: | White |
| Bulb Technology: | Halogen |
| Bulb Type: | H7 |
| Bulbs Included: | Yes |
| California Proposition 65 Required: | No |
| Connector type: | Blade termils |
| Depth (in): | 5.08 |
| Depth (mm): | 129 |
| Depth [mm]: | 129 |
| Depth: | 129.00 |
| Description: | HELLA Headlight Assembly 009071081 |
| Diameter [mm]: | 80,2 |
| Fastening Type: | Three-point mounting |
| Fitting Position: | Left |
| Headlight Type: | Assembly |
| Height (in): | 3.15 |
| Height (mm): | 80 |
| Height [mm]: | 80 |
| Housing Color: | black |
| Housing Colour: | Black |
| Housing Type: | Aluminium Housing |
| IP Rating: | IP5KX/IPX4K/IPX9K |
| Illuminated Area (in): | 1.97 |
| Illuminated Area (mm): | 50 |
| Illuminated Area [mm]: | 50 |
| Illuminated Area: | 50 mm |
| Inspection Tag: | SAE |
| Lamp Type: | H7 |
| Left-hand/Right-hand Traffic: | for right-hand traffic |
| Lens Color: | transparent |
| Lens Colour: | transparent |
| Light Design: | Halogen |
| Light Function: | with low beam |
| Light Functions: | 1 |
| Lighting Compliance: | SAE |
| Material: | Metal |
| Mounting Hardware Included: | No |
| Mounting Type: | Fitting |
| Number of light functions: | 1 |
| Part Number: | hella009071081 |
| Plug Type: | Blade Terminal |
| Plug: | Blade Terminal |
| Protection Type (IP Code): | IP5KX |
| Rated Voltage [V]: | 12 |
| Registration Type: | SAE approved |
| Shape: | round |
| Street Legal: | Yes |
| Supplementary Article/Supplementary Info: | with bulb |
| Test Mark: | SAE |
| Voltage (V): | 12 |
| Voltage [V]: | 12 |
| Voltage: | 12.00 |
| WARNING CA Proposition 65: | No |
| Width (in): | 5.28 |
| Width (mm): | 134 |
| Width [mm]: | 134 |
Part Type
Headlight Assembly
Features
- Adjustable From The Front And Rear Of The Lamp
- Compact Modular 50mm System Design
- Includes 3 Point Mounting Frame
- Modular Fog Lamp Also Available
- Universally usable
Specifications
- Product Attributes - UPC
- 760687075714
- Product Attributes - Brand
- Hella
- Product Attributes - Watts
- 55.0 watts
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Bulb Type
- Halogen
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - Bulb Color
- Clear
- Product Attributes - Lens Color
- Clear
- Product Attributes - Light Type
- Driving/Fog light
- Product Attributes - Optics Style
- Driving
- Product Attributes - Product Line
- Hella Micro DE Series Lights
- Product Attributes - Housing Color
- Black/Silver
- Product Attributes - Diameter (in.)
- 3.150 in.
- Product Attributes - Light Pod Type
- Round
- Product Attributes - Relay Included
- No
- Product Attributes - Maximum Voltage
- 12 V
- Product Attributes - Housing Material
- Magnesium
- Product Attributes - Hardware Included
- No
- Product Attributes - Light Cover Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Manufacturer's Part Number
- 009071081
Reference Information
| Brand Name/s | Hella |
|---|---|
| StreetFX SKU | hella009071081 |
| SFX Item ID | 4520798 |
| Supplier Item Code | 4520798 |
| Manufacturer SKU | 009071081 |
| Manufacturer UPC | 760687075714 |
| Alternative References | hla-009071081, 12V |
