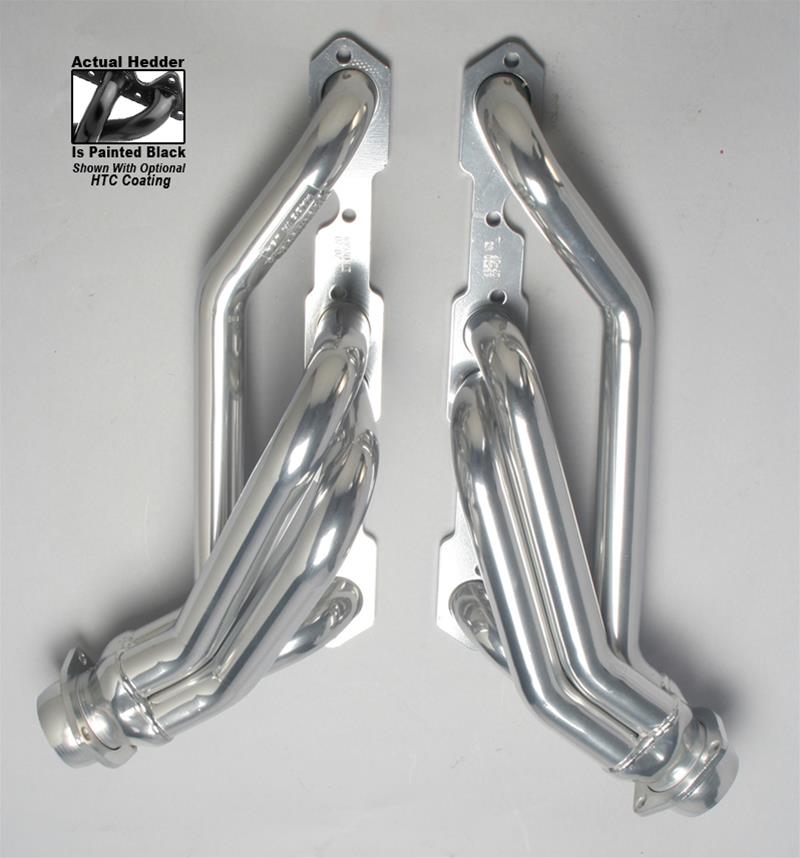

Hedman Hot Rodz Engine Swap Headers 69530 Headers, Swap, Mid-Length, Steel, Temporary Paint, Chevy, GMC, Small Block, Pair
Hedman Hot Rodz Engine Swap Headers 69530 Headers, Swap, Mid-Length, Steel, Temporary Paint, Chevy, GMC, Small Block, Pair
A$1,072.28
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Hot rodding has always been about taking two or more parts that were never designed to work together and make then work together seamlessly. It is a never-ending effort to shove as much horsepower and torque under a vehicle's hood as possible. Unfortunately, any project can come to a screeching halt when it comes to bolting up a set of headers.
Hedman Hot Rodz engine swap headers are specifically designed for non-factory engine and vehicle model combinations. Available in mild steel or stainless with 16-gauge header tubes uncoated and coated. The HTC silver and Black Maxx ceramic-metallic coatings offer superior heat insulation and anti-corrosion properties to protect your "Hedder" investment and retain more heat inside the header tubes for increased exhaust velocity and improved scavenging.
Part Type
Headers - 82-00 SBC S10 2WD
Specifications
- Product Attributes - Brand
- Hedman Hedders
- Product Attributes - Manufacturer's Part Number
- 69530
- Product Attributes - Part Type
- Headers
- Product Attributes - Product Line
- Hedman Hot Rodz Engine Swap Headers
- Product Attributes - UPC
- 732611695305
- Product Attributes - Header Style
- Mid-length
- Product Attributes - Header Material
- Steel
- Product Attributes - Primary Tube Outside Diameter (in.)
- 1 1/2 in.
- Product Attributes - Header Color
- Temporary non-high temperature paint
- Product Attributes - Flange Style
- Standard
- Product Attributes - Weld-Up
- No
- Product Attributes - Cylinder Head Port Shape
- Round
- Product Attributes - Collector Attachment
- Ball and socket flange
- Product Attributes - Collector Diameter (in.)
- 2.50
- Product Attributes - Collector Reducers Included
- Yes
- Product Attributes - Collector Reducer Exit Diameter
- 2.500 in.
- Product Attributes - Tuned
- No
- Product Attributes - Primary Tube Gauge
- 16-gauge
- Product Attributes - Spark Plug Position
- Angle
- Product Attributes - Flange Thickness (in.)
- 0.31 in.
- Product Attributes - Bolts/Studs Included
- Yes
- Product Attributes - Gaskets Included
- Yes
- Product Attributes - Crossover Pipe Included
- No
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Motor Mounts Included
- No
- Product Attributes - Transmission Mount Included
- No
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Notes
- Fits with angle plug heads (Chevy aluminum only). Other aftermarket aluminum angle plug head will require modification. The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Reference Information
| Brand Name/s | Hedman Hedders |
|---|---|
| StreetFX SKU | hed69530 |
| SFX Item ID | 5071062 |
| Supplier Item Code | 5071062 |
| Manufacturer SKU | 69530 |
| Manufacturer UPC | 732611695305 |
