Description

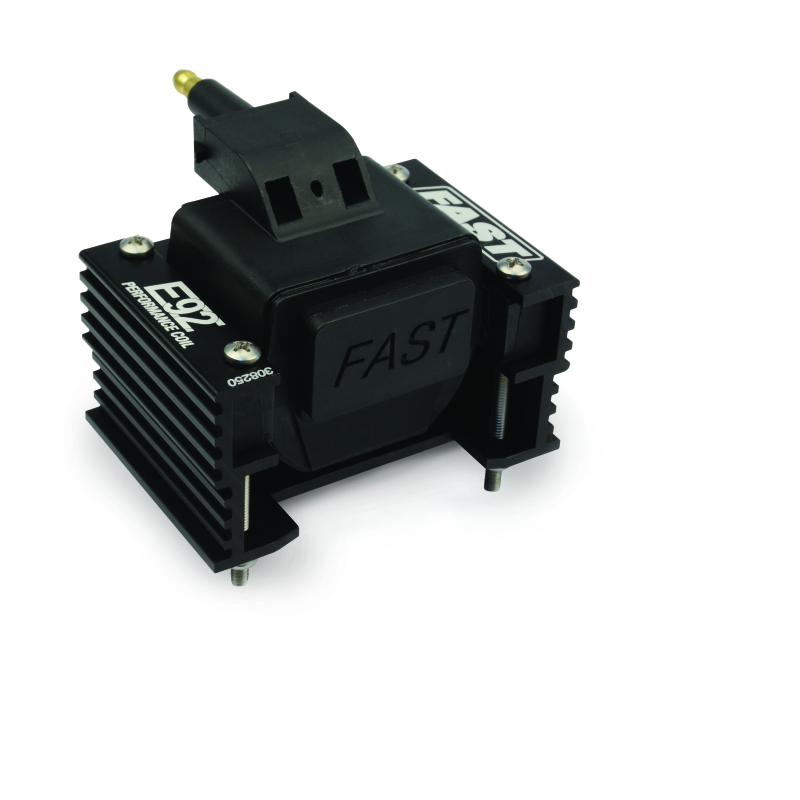

The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.
Part Type
Ignition Coil
Specifications
- Product Attributes - Brand
- FAST
- Product Attributes - Manufacturer's Part Number
- 308250
- Product Attributes - Part Type
- Ignition Coils
- Product Attributes - Product Line
- FAST E92 E-Core Ignition Coils
- Product Attributes - UPC
- 036584286448
- Product Attributes - Coil Style
- Remote mount
- Product Attributes - Primary Resistance
- 0.230 ohms
- Product Attributes - Coil Internal Construction
- Epoxy
- Product Attributes - Coil Wire Attachment
- Male/HEI
- Product Attributes - Coil Color
- Black
- Product Attributes - Maximum Voltage
- 48,500 V
- Product Attributes - Turns Ratio
- 60:1
- Product Attributes - Secondary Resistance
- 0.92K ohms
- Product Attributes - Inductance
- 1.70 mH
- Product Attributes - Peak Current
- 510 mA
- Product Attributes - Spark Duration
- 245 uS
- Product Attributes - Mounting Bracket Included
- Yes
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Ballast Resistor Included
- No
- Product Attributes - Coil Shape
- Square
- Product Attributes - Height (in.)
- 3.000 in.
- Product Attributes - Length (in.)
- 3.750 in.
- Product Attributes - Width (in.)
- 2.500 in.
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Fast |
|---|---|
| StreetFX SKU | fst308250 |
| SFX Item ID | 4084637 |
| Supplier Item Code | 4084637 |
| Manufacturer SKU | 308250 |
| Manufacturer UPC | 36584061687 |
| Alternative References | E92 |
