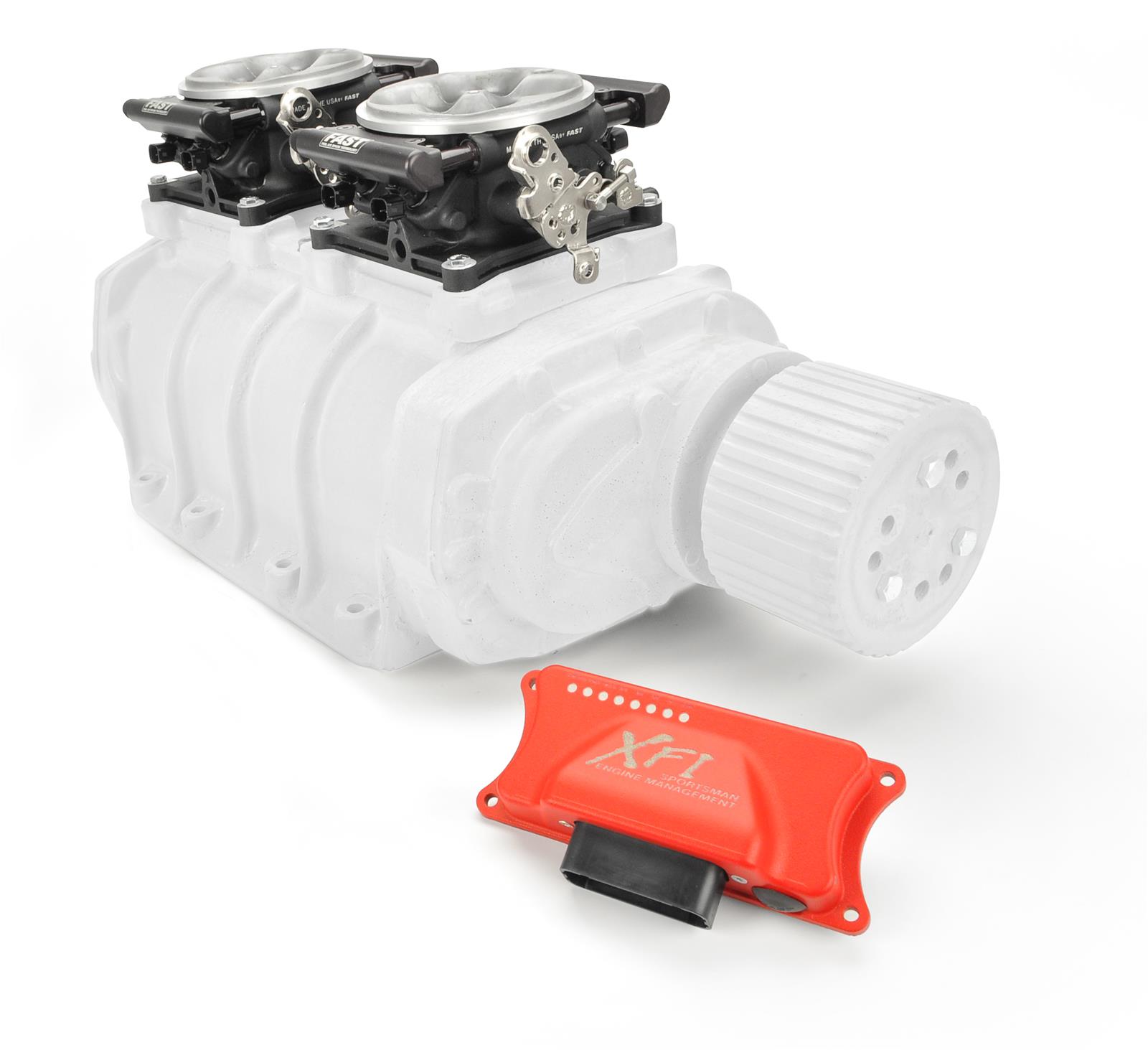

FAST XFI Sportsman Roots Blower Dual Quad EFI Systems 303002RB Fuel Injection Systems, Systems, Black Throttle Body, ECM, 4-barrel Square Bore Mounting, Gasoline, Kit
FAST XFI Sportsman Roots Blower Dual Quad EFI Systems 303002RB Fuel Injection Systems, Systems, Black Throttle Body, ECM, 4-barrel Square Bore Mounting, Gasoline, Kit
A$6,679.99
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The FAST XFI Sportsman roots blower dual quad EFI systems are a custom-tunable throttle body EFI that fills the gap between FAST EZ-EFI and XFI 2.0 systems. Designed specifically for roots blowers on muscle car, late model street, race and sportsman drag racing engines, the XFI Sportsman system is a fully software-tunable EFI setup. It requires a laptop for tuning and uses proven FAST C-Com software, which comes packaged along with the necessary USB connectivity cable. The system offers both load-indexed speed density or Alpha-N tuning strategies; most users will use speed density strategy which is self tuning, but the Alpha-N option is specifically added to serve Sportsman drag racers looking for absolute consistency.
The FAST XFI Sportsman roots blower dual quad EFI system features full tables to monitor fueling, acceleration fuel, timing and air/fuel targets. A user-configurable auxiliary input channel and full-function data logging are also included. Built-in CAN network support for the EZ-TCU, EZ-LS, XIM, and eDash means users can easily plug-and-play those components with the included CAN network wire. XFI Sportsman also features a Bosch wide-band oxygen sensor, utilizes built-in diagnostic LEDs, a waterproof ECU enclosure, and includes a premium, mesh-type wire loom multi-port harness. Plug-and-play with FAST distributors, EZ-LS or XIM for electronic timing control--or it can be used with an EFI distributor of your choice and a FAST crank trigger. The system can be used to control fuel only and be used with a standard carb-type distributor where timing is set manually.
The dual quad throttle bodies feature commonly available late model OEM sensors for accuracy and durability--and support from stock to 1,000 hp engines. It flows more air than the first generation EZ-EFI throttle bodies due to an improved inlet, while a new secondary shaft throttle stop adjustment provides even more precise idle airflow adjustment and balance. Meanwhile, an industry exclusive and unique-to-FAST integrated fuel pulse damper creates ultra-precise fuel control and allows return or return-less style fuel systems to be used. This throttle body also incorporates needle-bearing supported shafts instead of bushings and an integrated fuel rail design with crossover for tighter packaging. Setup includes the market's fewest connection wires.
FAST XFI Sportsman roots blower dual quad EFI systems are designed to be one of the most flexible systems available. It does matter if you are a weekend cruiser or the most demanding Sportsman class racer: FAST has you covered.
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- FAST
- Product Attributes - Manufacturer's Part Number
- 303002RB
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- FAST XFI Sportsman Roots Blower Dual Quad EFI Systems
- Product Attributes - UPC
- 036584300472
- Product Attributes - Fuel Injection Style
- Throttle body
- Product Attributes - Fuel Injection System Type
- Dual 4-Barrel Throttle Bodies (4150 Flange)
- Product Attributes - Maximum Horsepower with Gas
- 1,000
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- None
- Product Attributes - Ignition System Included
- None
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 6 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- Dual 4-barrel square bore
- Product Attributes - Venturi Quantity
- 8
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Black
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 87 lbs./hr.
- Product Attributes - Calibration Module Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Kit supports up to 15 psi of boost and 1000 hp on gasoline. Features C-Com software, fuel pressure sensor kit, and two throttle body assemblies.
Reference Information
| Brand Name/s | Fast |
|---|---|
| StreetFX SKU | fst303002RB |
| SFX Item ID | 5015051 |
| Supplier Item Code | 5015051 |
| Manufacturer SKU | 303002RB |
| Manufacturer UPC | 36584300472 |
| Alternative References | 4-barrel |
