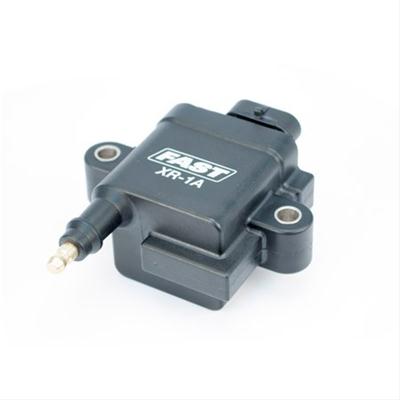

FAST Coil Only w/ FAST Logo, LS Series Engine
FAST Coil Only w/ FAST Logo, LS Series Engine
A$215.85
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The XR-1A High-Output Ignition Coil Set is designed specifically for high-compression naturally aspirated, boosted or nitrous-equipped applications making more than 1,000 horsepower, far beyond the capabilities of OEM coils. The spark energy of these coils is comparable to CDI (capacitive discharge ignition) systems without the need to convert. The Smart Coil design also requires no ignitor module. It delivers up to 44,000 volts, 103mJ of energy, and supports a maximum of 19 amps of current and 17 volts. Works with all OEM equipment, as well as FAST products that support coil-near-plug applications such as the XIM and EZ-LS ignition controllers. Able to be used in coil per cylinder applications.
Part Type
Ignition Coil
Specifications
- Product Attributes - Brand
- FAST
- Product Attributes - Manufacturer's Part Number
- 30260-1
- Product Attributes - Part Type
- Ignition Coils
- Product Attributes - Product Line
- FAST XR-1A High-Output Ignition Coils
- Product Attributes - UPC
- 00021174050943
- Product Attributes - Coil Style
- Coil pack
- Product Attributes - Coil Internal Construction
- Epoxy
- Product Attributes - Coil Wire Attachment
- Male/HEI
- Product Attributes - Coil Color
- Black
- Product Attributes - Maximum Voltage
- 44,000 V
- Product Attributes - Peak Current
- 19 amps
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Ballast Resistor Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- For use when remote mounting ignition coils and SBC or other non-LS plug wires.
Reference Information
| Brand Name/s | Fast |
|---|---|
| StreetFX SKU | fst30260-1 |
| SFX Item ID | 4085022 |
| Supplier Item Code | 4085022 |
| Manufacturer SKU | 30260-1 |
| Manufacturer UPC | 36584262428 |
