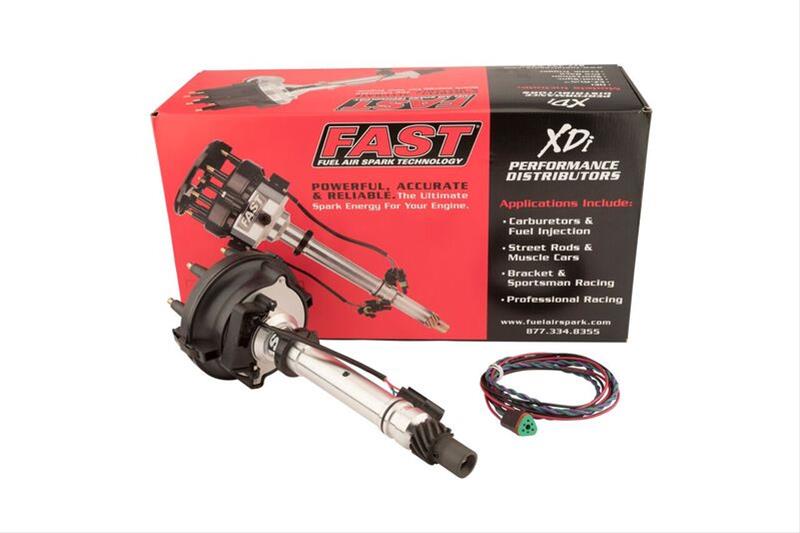

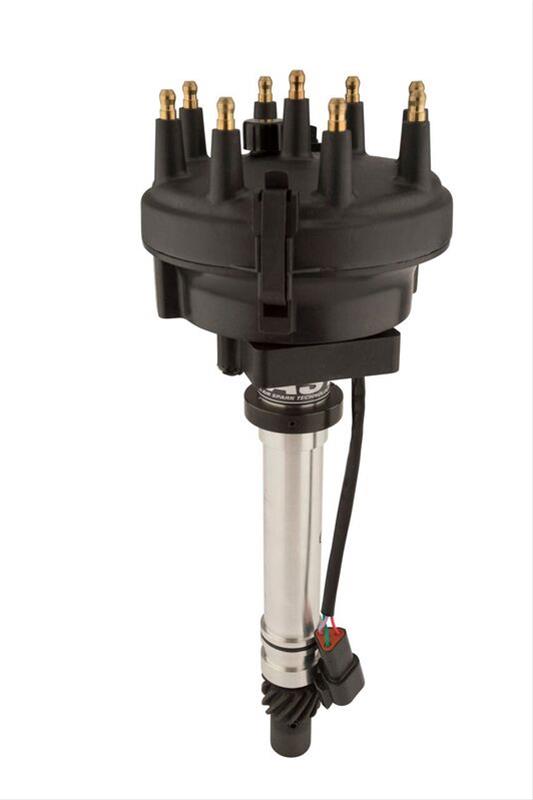

FAST XDi Sportsman Distributors 1000-1510 Distributor, Sportsman, Billet, Magnetic Trigger, Locked Advance, Large Cap, Chevy, Big/Small Block, Each
FAST XDi Sportsman Distributors 1000-1510 Distributor, Sportsman, Billet, Magnetic Trigger, Locked Advance, Large Cap, Chevy, Big/Small Block, Each
A$1,161.17
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The FAST XDi Sportsman Distributors were designed to deliver the most accurate trigger signal possible throughout the entire RPM range of your race engine. This is accomplished through the use of an advanced Hall-effect style pickup which is then converted to a signal that most CD ignition controls accept. The benefit of a Hall-effect pickup is there is no retard, commonly called magnetic pickup compensation, so you can ensure your timing remains stable from idle to race RPM. Inside the CNC-machined billet housing is a polished stainless steel shaft that is supported with sealed ball bearing on the top and a long bushing on the bottom. FAST also has gone through great strides to reduce end play in the distributor to take out any timing variations and damage to the gear. Each distributor is supplied with a high-quality rotor and distributor cap. A FAST Ignition Control (E6 or E7 series) must be used. Note that there is no mechanical advance, the timing is locked out. XDi Sportsman Distributors are available with a large diameter Ford style cap or smaller diameter GM points size cap with HEI terminals.
Part Type
Race Billet Distributor Chevy V8 Large Cap
Specifications
- Product Attributes - Brand
- FAST
- Product Attributes - Manufacturer's Part Number
- 1000-1510
- Product Attributes - Part Type
- Distributors
- Product Attributes - Product Line
- FAST XDi Sportsman Distributors
- Product Attributes - UPC
- 021174041491
- Product Attributes - Distributor Cap Included
- Yes
- Product Attributes - Distributor Cap Style
- Male/HEI
- Product Attributes - Distributor Cap Type
- Large cap
- Product Attributes - Ignition Coil Included
- No
- Product Attributes - Ignition Module Included
- Yes
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Trigger Style
- Hall effect
- Product Attributes - Advance Type
- Computer-controlled
- Product Attributes - Ignition Box Required
- Yes
- Product Attributes - Mechanical Tach Drive
- No
- Product Attributes - Slip Collar
- Yes
- Product Attributes - Distributor Gear Material
- Steel
- Product Attributes - Distributor Gear Rotation
- Standard
- Product Attributes - Distributor Cap Color
- Black
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Housing Finish
- Natural
- Product Attributes - Marine Use
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Large cap, 5 3/8 in.
Reference Information
| Brand Name/s | Fast |
|---|---|
| StreetFX SKU | fst1000-1510 |
| SFX Item ID | 5014914 |
| Supplier Item Code | 5014914 |
| Manufacturer SKU | 1000-1510 |
| Manufacturer UPC | N/A |
