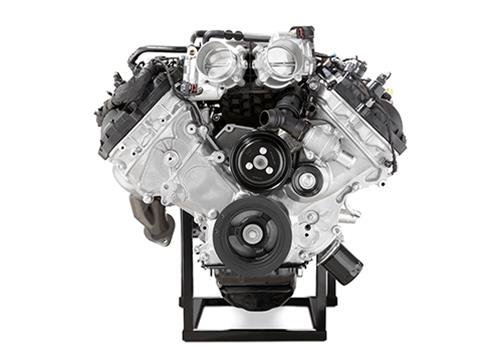

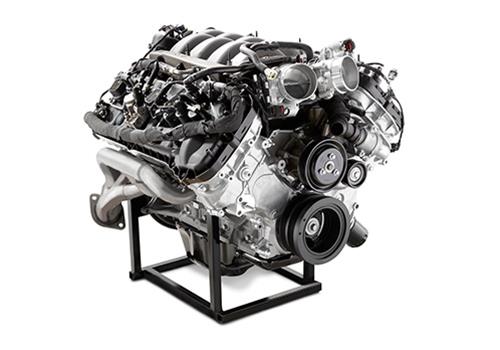

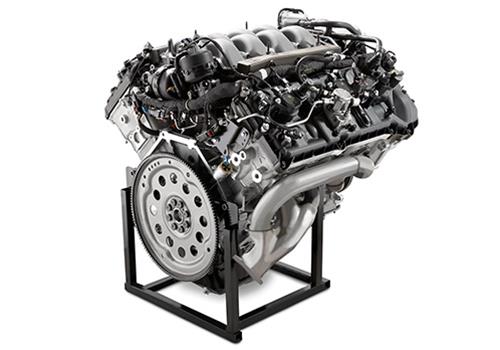

Ford Racing Mustang 5.0L Coyote Gen 4 480hp Automatic Transmission Crate Engine (No Cancel/Returns)
Ford Racing Mustang 5.0L Coyote Gen 4 480hp Automatic Transmission Crate Engine (No Cancel/Returns)
A$26,852.40
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Ford Performance Parts is pleased to announce the latest 5.0L Coyote all-aluminum crate engine from the 2024 Mustang GT. This modern 5.0L 32-valve DOHC V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies, and a heightened compression ratio to deliver 480 horsepower and 415 lb.-ft. of torque (with premium fuel). The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.
Product Overview
Ford Performance Parts is pleased to announce the latest 5.0L Coyote all-aluminum crate engine from the 2024 Mustang GT. This modern 5.0L 32-valve DOHC V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies, and a heightened compression ratio to deliver 480 horsepower and 415 lb.-ft. of torque (with premium fuel). The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.
Features and Benefits
- Hypereutectic Aluminum Pistons
- Aluminum block which features plasma transferred wire arc spray weld liner coating
- Longer 12 mm head bolts for higher clamp load
- Twin 80 mm single bore drive by wire electronic throttle bodies with variable runner control
- Longer High-flow aluminum cylinder heads DOHC 4 valves per cylinder variable intake/exhaust camshaft timing.
- Includes engine harness and production flexplate
- Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
Product Details
| Compression Ratio: | 12.0:1 |
|---|---|
| Description: | Crate Engine |
| Engine Make/Size: | Ford 5.0L/302 |
| Horsepower Rating: | 425-480 |
| Part Number: | frpM-6007-M50DAUTO |
| Prop 65 Yes/No: | No |
| Title: | Ford Performance - 5.0L Gen 4 Mustang Crate Engine-Auto - M-6007-M50DAUTO |
| WARNING CA Proposition 65: | No |
Additional Information
use w/ Auto Trans
Part Type
Engine Complete Assembly
Features
- Aluminum block which features plasma transferred wire arc spray weld liner coating
- Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
- Hypereutectic Aluminum Pistons
- Includes engine harness and production flexplate
- Longer 12 mm head bolts for higher clamp load
- Longer High-flow aluminum cylinder heads DOHC 4 valves per cylinder variable intake/exhaust camshaft timing.
- Twin 80 mm single bore drive by wire electronic throttle bodies with variable runner control
Specifications
- Product Attributes - Brand
- Ford Performance Parts
- Product Attributes - Manufacturer's Part Number
- M-6007-M50DAUTO
- Product Attributes - Part Type
- Crate Engines
- Product Attributes - Product Line
- Ford Performance Parts 2024 Gen 4 5.0L 480 HP Coyote Long Block Crate Engines
- Product Attributes - UPC
- 756122019351
- Product Attributes - Crate Engine Family
- Ford Modular
- Product Attributes - Actual Engine Displacement
- 5.0L/302
- Product Attributes - Crate Engine Cylinder Head Material
- Aluminum
- Product Attributes - Engine Block Material
- A-355 aluminum
- Product Attributes - Advertised Compression Ratio
- 12.0:1
- Product Attributes - Assembled
- Yes
- Product Attributes - Cam Style
- DOHC
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Intake Manifold Style
- Fuel Injection
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Carburetor Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Distributor Included
- No
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- Yes
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Flexplate Included
- Yes
- Product Attributes - Flywheel Included
- No
- Product Attributes - Air Cleaner Included
- No
- Product Attributes - Spark Plugs Included
- Yes
- Product Attributes - Spark Plug Wires Included
- No
- Product Attributes - Computer Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Supercharger Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Ford Racing |
|---|---|
| StreetFX SKU | frpM-6007-M50DAUTO |
| SFX Item ID | 4303729 |
| Supplier Item Code | 4303729 |
| Manufacturer SKU | M-6007-M50DAUTO |
| Manufacturer UPC | 756122019351 |
| Alternative References | FMS-S0043, FRDM6007-M50DAUTO, 5.0L, 480hp |
