FiTech Go Port EFI Standalone System Fuel In-Tank Pump/Go-Spark Injection Master Kits 96463 With & Spark CDI Box Kit
FiTech Go Port EFI Standalone System Fuel In-Tank Pump/Go-Spark Injection Master Kits 96463 With & Spark CDI Box Kit
A$3,676.29
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

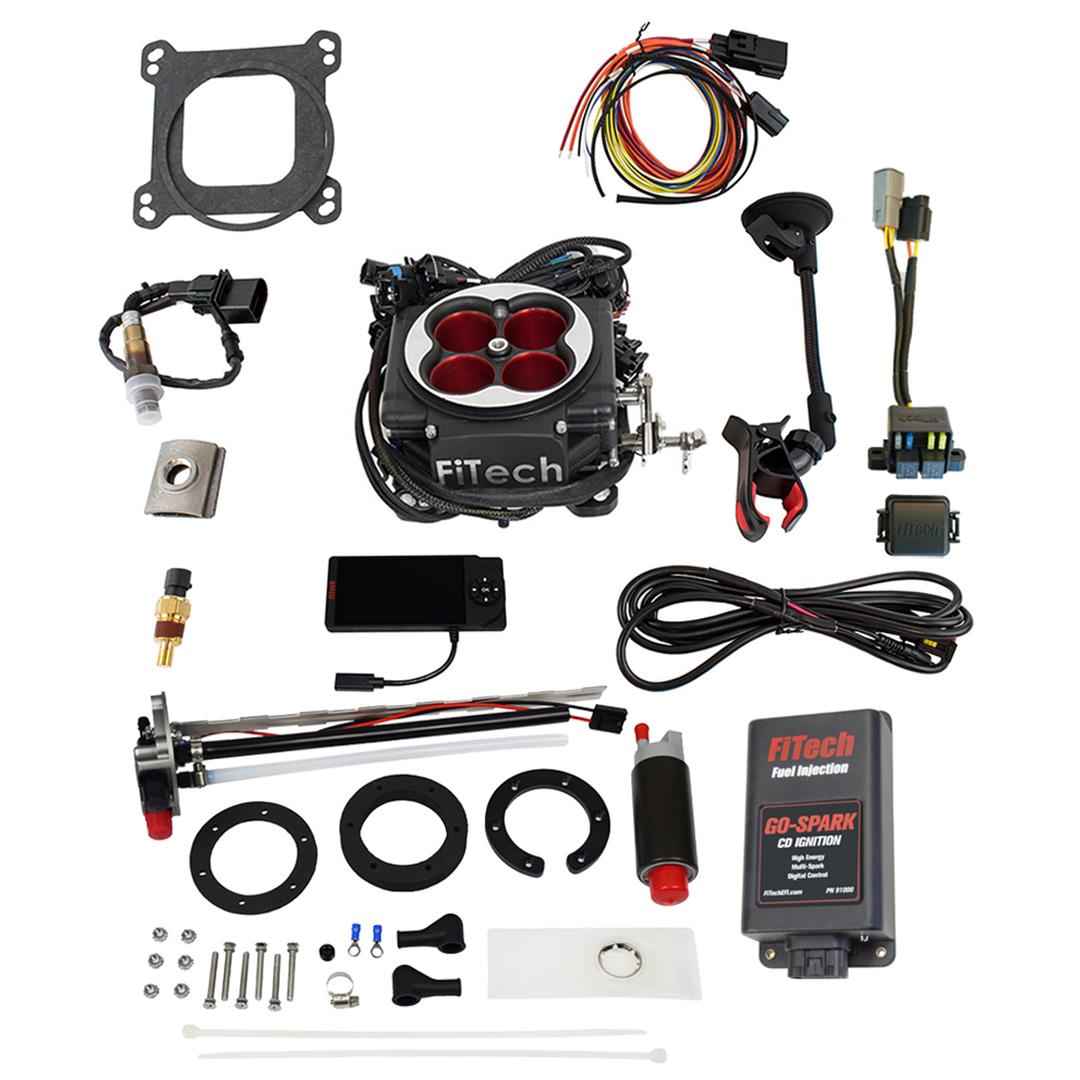

FiTech Go Port EFI standalone system Go Fuel in-tank pump/Go-Spark fuel injection master kits combine a high-flow (850 cfm) FiTech throttle body with an integrated ECU, plus a fuel delivery system that makes converting your carbureted engine to EFI easier and an upgrade to high-powered sparks for improved combustion and power output.
The Go Port EFI standalone system supplies everything needed to adapt your intake and fuel rails--sensors, harness, gaskets, and a hand-held touch screen controller.
FiTech Go Fuel in-tank pump module can be used on tanks with a depth of 6 in. to 15 in. The billet top assembly is designed with the supply and return ports in a parallel position to help route the fuel lines easily and evenly, and the vent port is on the other side to ease routing the line near the fill tube. The two fuel ports are threaded to accept -6 AN O-ring boss fittings for a secure, leak-free connection. Gaskets, terminals, and clamps are included.
Go-Spark CD ignition produces a series of multiple sparks below 2,500 rpm to improve starting, idle quality and throttle response. At higher rpm, the CD technology continues to deliver full energy sparks through racing rpm to ensure complete combustion of the fuel mixture. Designed for 4-, 6-, and 8-cylinder engines equipped with a distributor, it accepts the trigger signal from an HEI, amplifier, points, or 2-wire nonmagnetic pickup distributors. A separate 12 V square wave tach output can be used to trigger the EFI system and/or a tachometer.
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- FiTech Fuel Injection
- Product Attributes - Manufacturer's Part Number
- 96463
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- FiTech Go Port EFI Standalone System Go Fuel In-Tank Pump/Go-Spark Fuel Injection Master Kits
- Product Attributes - UPC
- 810128300438
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Fuel Injection System Type
- Single 4-Barrel Throttle Body (4150 Flange)
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- In-tank fuel pump module, returnless
- Product Attributes - Ignition System Included
- Ignition box
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 4.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- 4-barrel square bore
- Product Attributes - Venturi Quantity
- 4
- Product Attributes - Venturi Diameter (mm)
- 44.00mm
- Product Attributes - Airflow Rate (cfm)
- 850 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Black
- Product Attributes - Injectors Included
- No
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fuel injection system includes: 340 lph universal in-tank pump module, CDI ignition.
Reference Information
| Brand Name/s | Fitech Fuel Injection |
|---|---|
| StreetFX SKU | fif96463 |
| SFX Item ID | 5179001 |
| Supplier Item Code | 5179001 |
| Manufacturer SKU | 96463 |
| Manufacturer UPC | 810128300438 |
