Fitech Fuel Injection

FiTech Ultimate Rebel LS 750 HP EFI Loaded Intake Manifold Kits 70069 Manifolds, Loaded, Short Cathedral, Aluminum, Black Anodized, Throttle Body, Injectors, Sensors, Chevy, Kit

SKU: FIF70069

Intake Manifolds, Fuel Injected
FiTech Ultimate Rebel LS 750 HP EFI Loaded Intake Manifold Kits 70069 Manifolds, Loaded, Short Cathedral, Aluminum, Black Anodized, Throttle Body, Injectors, Sensors, Chevy, Kit

Fitech Fuel Injection

FiTech Ultimate Rebel LS 750 HP EFI Loaded Intake Manifold Kits 70069 Manifolds, Loaded, Short Cathedral, Aluminum, Black Anodized, Throttle Body, Injectors, Sensors, Chevy, Kit

SKU: FIF70069

Intake Manifolds, Fuel Injected
A$2,628.46
BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

The FiTech Ultimate Rebel LS 750 hp EFI loaded intake manifold kits are a popular choice for enthusiasts looking to upgrade their LS engine's performance and aesthetics. These kits offer several benefits for LS engine conversions, including increased horsepower potential, improved airflow, and a cleaner engine bay appearance. The kits are designed for ease of installation and optimal performance, supporting up to 750 horsepower and offering features like E85 compatibility and boost/nitrous readiness, which makes them suitable for high-performance applications.

Key benefits and advantages:

* Modern engine management utilizes speed density metering for optimal performance
* Billet fuel rails and 55 lb. injectors ensure reliable and consistent fuel flow
* Boost/Nitrous compatibility—the system can handle boosted and nitrous applications, making it suitable for high-performance builds
* E85 compatibility—supports E85 fuel, offering flexibility for different fuel preferences
* Visual appeal—the low-profile intake manifold and redesigned fuel rail bracket enhance the overall appearance of the engine bay

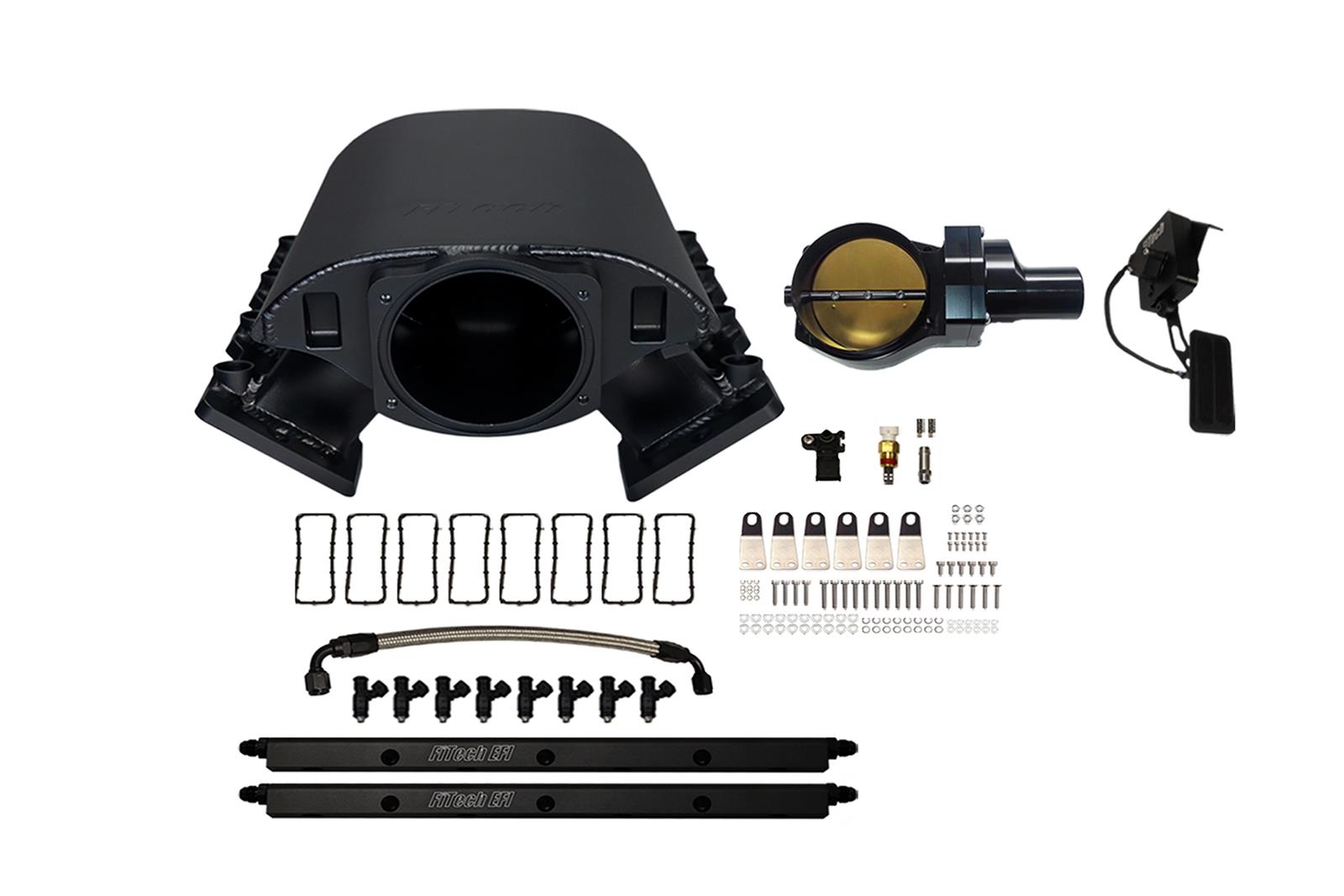

Kit components:

* LS1/LS2/LS6 FiTech Rebel LS Fabricated Short Manifold (manifold, gaskets and hardware)
* Ultimate LS 102mm throttle body with sensors
* 55 lb. injectors
* 3 Bar MAP sensor allows for boost and nitrous applications, expanding the performance potential of the engine
* IAT sensor
* Throttle cable bracket with round hole for new style LS intake
* Throttle cable bracket with stock GM cable notch for new style LS intake with cable barrel clamp

Part Type

Intake Manifolds, Fuel Injected

Data: v4.2 - Upd: 2026-10-14 08:57:20

Specifications

Product Attributes - Brand
FiTech Fuel Injection
Product Attributes - Manufacturer's Part Number
70069
Product Attributes - Part Type
Intake Manifolds, Fuel Injected
Product Attributes - Product Line
FiTech Ultimate Rebel LS 750 HP EFI Loaded Intake Manifold Kits
Product Attributes - UPC
812061030045
Product Attributes - Cylinder Head Configuration
Cathedral Port LS1/LS2/LS6
Product Attributes - Fuel Injection Style
Multi-port
Product Attributes - Basic Operating RPM Range
1,500-6,500
Product Attributes - Intake Section Included
Complete
Product Attributes - Throttle Body Bore Size
102mm
Product Attributes - Engine Block Deck Height
Standard deck
Product Attributes - Injectors Included
Yes
Product Attributes - Multi-Port Fuel Rails Included
Yes
Product Attributes - EGR
No
Product Attributes - Aftermarket Fuel Rail Required
Yes
Product Attributes - Throttle Body Included
Yes
Product Attributes - Supplemental Bosses Cast-In
No
Product Attributes - Supplemental Bosses Machined
Yes
Product Attributes - Supplemental Boss Quantity
Eight
Product Attributes - Runners Included
Yes
Product Attributes - Runners Removable
No
Product Attributes - Plenum Material
Aluminum
Product Attributes - Plenum Finish
Black anodized
Product Attributes - Base Material
Aluminum
Product Attributes - Base Color
Black anodized
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold as a kit.
Product Attributes - Notes
Short manifold. Kit includes 55lb. injectors.

Reference Information

Brand Name/s Fitech Fuel Injection
StreetFX SKU fif70069
SFX Item ID 5179013
Supplier Item Code 5179013
Manufacturer SKU 70069
Manufacturer UPC N/A

Compatibility

Application Data
  • MakeCHEVROLET
    Beginning Year1997
    Ending Year2004
    Engine TypeV8
    Engine FamilyCHEVY SMALL BLOCK GEN III/IV LS V8 GAS
    Engine Size5.7L/350
  • MakeCHEVROLET
    Beginning Year1999
    Ending Year2007
    Engine TypeV8
    Engine FamilyCHEVY SMALL BLOCK GEN III/IV LS V8 GAS
    Engine Size4.8L/294
  • MakeCHEVROLET
    Beginning Year1999
    Ending Year2007
    Engine TypeV8
    Engine FamilyCHEVY SMALL BLOCK GEN III/IV LS V8 GAS
    Engine Size5.3L/325
  • MakeCHEVROLET
    Beginning Year1999
    Ending Year2007
    Engine TypeV8
    Engine FamilyCHEVY SMALL BLOCK GEN III/IV LS V8 GAS
    Engine Size6.0L/364
  • MakeCHEVROLET
    Beginning Year2005
    Ending Year2014
    Engine TypeV8
    Engine FamilyCHEVY SMALL BLOCK GEN III/IV LS V8 GAS
    Engine Size5.3L/325
  • MakeCHEVROLET
    Beginning Year2005
    Ending Year2017
    Engine TypeV8
    Engine FamilyCHEVY SMALL BLOCK GEN III/IV LS V8 GAS
    Engine Size4.8L/294
  • MakeCHEVROLET
    Beginning Year2005
    Ending Year2019
    Engine TypeV8
    Engine FamilyCHEVY SMALL BLOCK GEN III/IV LS V8 GAS
    Engine Size6.0L/364
