FiTech Ultra Ram EFI 650 HP In-Tank Pump/Regulator Fuel Injection Master Kits 36331 System, 650HP Self-Tuning, Throttle Body, ECM, Chevrolet, Small Block, Kit
FiTech Ultra Ram EFI 650 HP In-Tank Pump/Regulator Fuel Injection Master Kits 36331 System, 650HP Self-Tuning, Throttle Body, ECM, Chevrolet, Small Block, Kit
A$4,912.40
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
FiTech's Ultra Ram EFI 650 hp in-tank pump/regulator fuel injection master kits feature their outstanding Ultra Ram with aggressive looking sheet metal intake manifold along with an in-tank fuel delivery system. Also included in these packages is a Go Fuel Tight Fit regulator with gauge. Designed for the do-it-yourself hot rodder to the professional EFI tuner, these kits are ready to go with everything you need to convert your carbureted engine to top-of-the-line EFI FiTech self-learning technology.

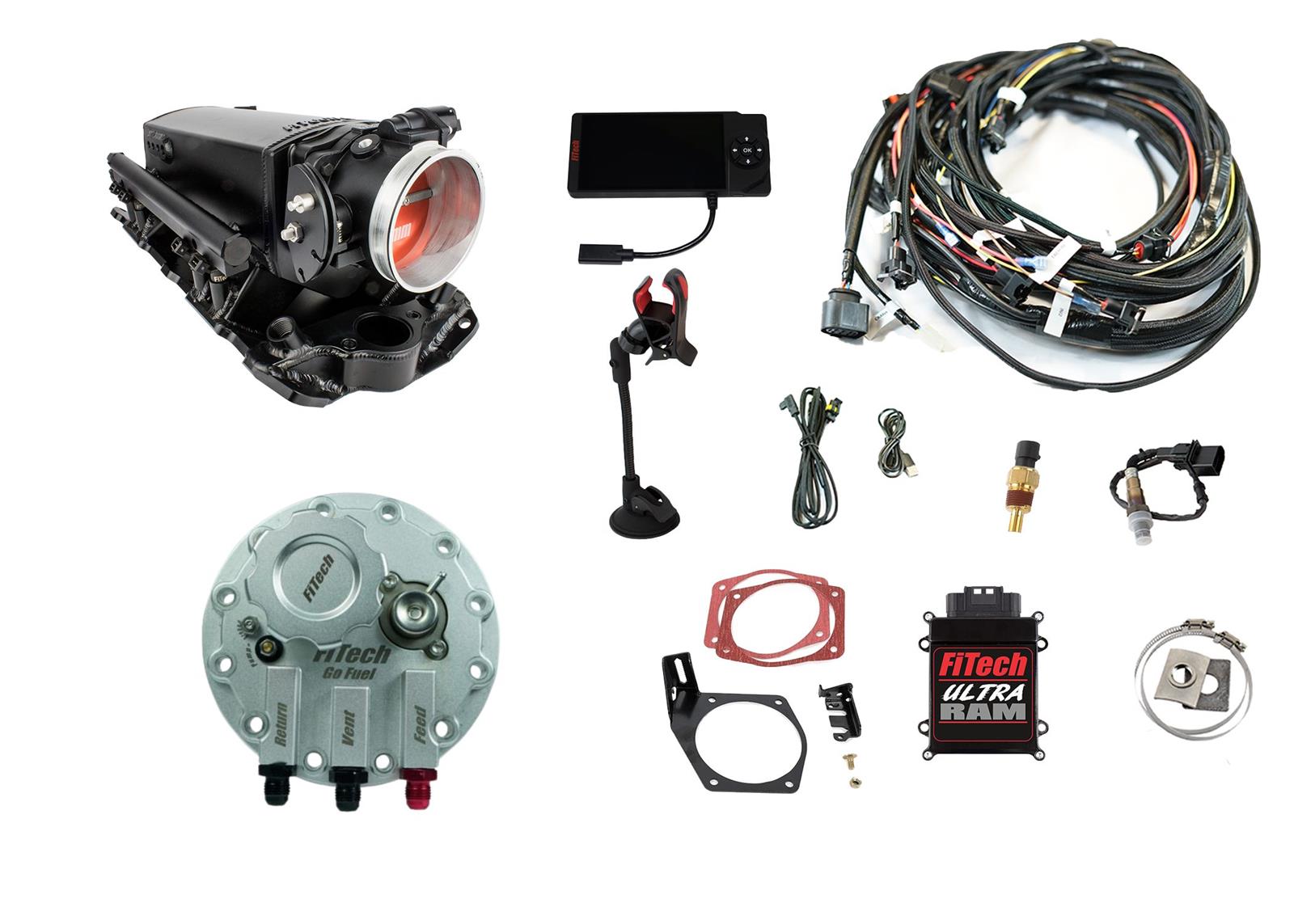

These Ultra Ram EFI systems will support up to 650 hp and come out of the box with the injectors and fuel rails installed. The robust ECU is easy to mount and handles the air/fuel mixture targets and you only need to input a few engine specs into the color touch screen monitor to get the engine to rev up. Ultra Ram is supplied with a sheet metal intake, cast aluminum 92mm throttle body, remote mount ECU, main harness, handheld controller, cable and windshield mount, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty info.
For fuel delivery, these FiTech Ultra Ram master kits include either a Go Fuel in-tank 255, 340, or 440 lph pump module. They can be used on tanks with a depth of 6 to 15 in. and feature a billet top assembly designed with the supply and return ports in a parallel position to help route the fuel lines easily and evenly. A vent port is on the other side to ease routing the line near the fill tube. The two fuel ports are threaded to accept -6 AN O-ring boss fittings for a secure, leak-free connection.
The Go Fuel Tight Fit regulator can be adjusted from 30 to 70 psi and will support up to 1,000 hp. It is crafted from billet aluminum, features -6 ORB ports along with a vacuum/boost port, and includes a gauge.
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- FiTech Fuel Injection
- Product Attributes - Manufacturer's Part Number
- 36331
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- FiTech Ultra Ram EFI 650 HP In-Tank Pump/Regulator Fuel Injection Master Kits
- Product Attributes - UPC
- 812061036634
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Fuel Injection System Type
- Multi-port Throttle Body
- Product Attributes - Maximum Horsepower with Gas
- 800
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- In-tank fuel pump module, returnless
- Product Attributes - Fuel Pump Flow Rating (lph)
- 340
- Product Attributes - Ignition System Included
- None
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 4.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - Intake Color
- Black
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Venturi Quantity
- 1
- Product Attributes - Venturi Diameter (mm)
- 92.00mm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Black
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Fitech Fuel Injection |
|---|---|
| StreetFX SKU | fif36331 |
| SFX Item ID | 5178292 |
| Supplier Item Code | 5178292 |
| Manufacturer SKU | 36331 |
| Manufacturer UPC | 812061036634 |
| Alternative References | 650HP |
