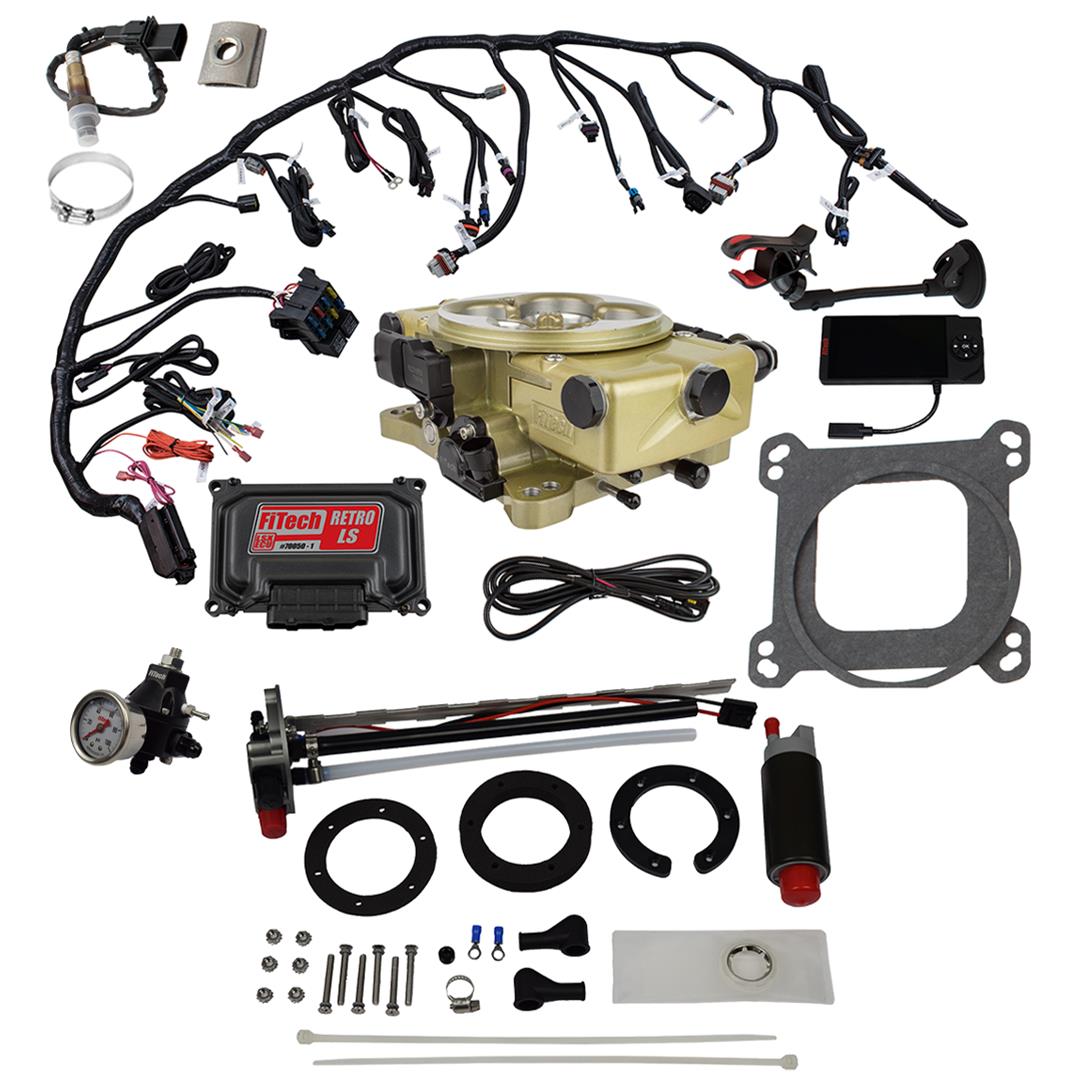

FiTech Retro LS TBI 650 HP System In-Tank Pump/Regulator Fuel Injection Master Kits 36271 Classic Gold EFI With Kit
FiTech Retro LS TBI 650 HP System In-Tank Pump/Regulator Fuel Injection Master Kits 36271 Classic Gold EFI With Kit
A$4,223.54
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
FiTech Retro LS TBI 650 hp system in-tank/regulator fuel injection master kits deliver old school looks and modern EFI performance for your hot rod.
These kits feature a FiTech classic carburetor-gold throttle body with transmission control and a pre-terminated wiring harness with specific LS engine sensors, including the factory knock sensors to complement the built-in timing control. The remote ECU can control the transmission shift points and characteristics of the popular 4L60/65/80E transmissions. No laptop is required, and the system will work on 24x or 58x cam sensors. Also supplied with the Retro LS TBI is a handheld touch screen controller, cable and windshield mount, WBO2 sensor, bung kit, gaskets, mini USB cable, instructions, and warranty info.
For fuel delivery, these FiTech Retro LS master kits pair the TBI with either a 255 or 340 lph Go Fuel in-tank pump and a Tight Fit regulator with gauge. Both can be used on tanks with a depth of 6 to 15 in and feature a billet top assembly designed with the supply and return ports in a parallel position to help route the fuel lines easily and evenly. The vent port is on the other side to ease routing the line near the fill tube. The two fuel ports are threaded to accept -6 AN O-ring boss fittings for a secure, leak-free connection. Gaskets, terminals, and clamps are included. The Tight Fit regulator can be adjusted from 30 to 70 psi and will support up to 1,000 hp. Made from billet aluminum, it features -6 ORB ports along with a vacuum/boost port. Choose your preferred fuel delivery system.
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- FiTech Fuel Injection
- Product Attributes - Manufacturer's Part Number
- 36271
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- FiTech Retro LS TBI 650 HP System In-Tank Pump/Regulator Fuel Injection Master Kits
- Product Attributes - UPC
- 812061039192
- Product Attributes - Fuel Injection Style
- Throttle body
- Product Attributes - Fuel Injection System Type
- Single 4-Barrel Throttle Body (4150 Flange)
- Product Attributes - Maximum Horsepower with Gas
- 650
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- In-tank fuel pump module, return
- Product Attributes - Ignition System Included
- None
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 4.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- 4-barrel square bore
- Product Attributes - Venturi Quantity
- 4
- Product Attributes - Venturi Diameter (mm)
- 44.00mm
- Product Attributes - Airflow Rate (cfm)
- 950 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Gold
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 80 lbs./hr.
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fuel injection system includes: 340 lph universal in-tank pump module, regulator with pressure gauge.
Reference Information
| Brand Name/s | Fitech Fuel Injection |
|---|---|
| StreetFX SKU | fif36271 |
| SFX Item ID | 5178365 |
| Supplier Item Code | 5178365 |
| Manufacturer SKU | 36271 |
| Manufacturer UPC | 812061039192 |
