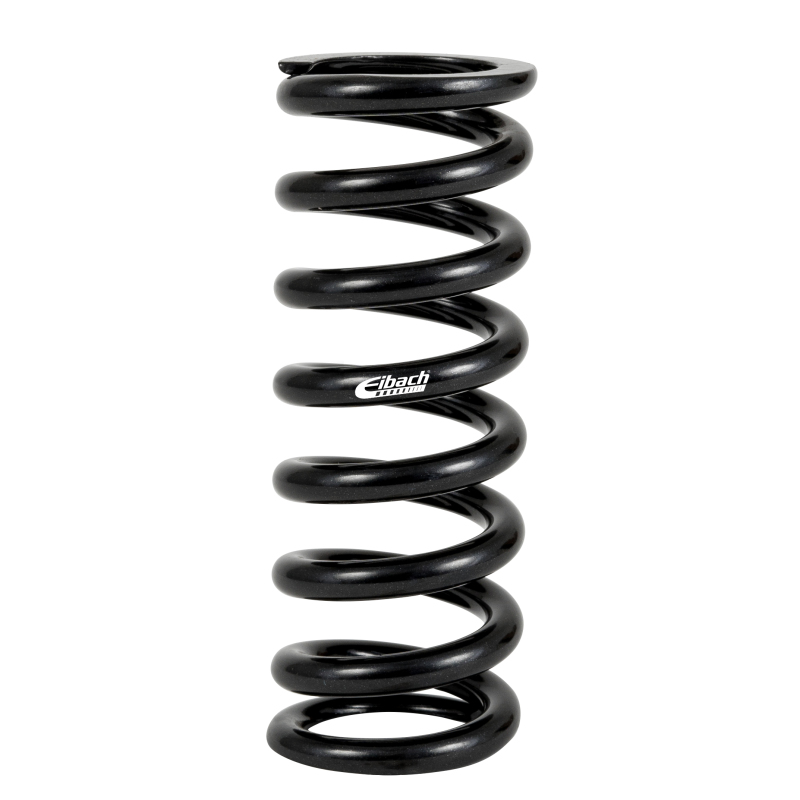

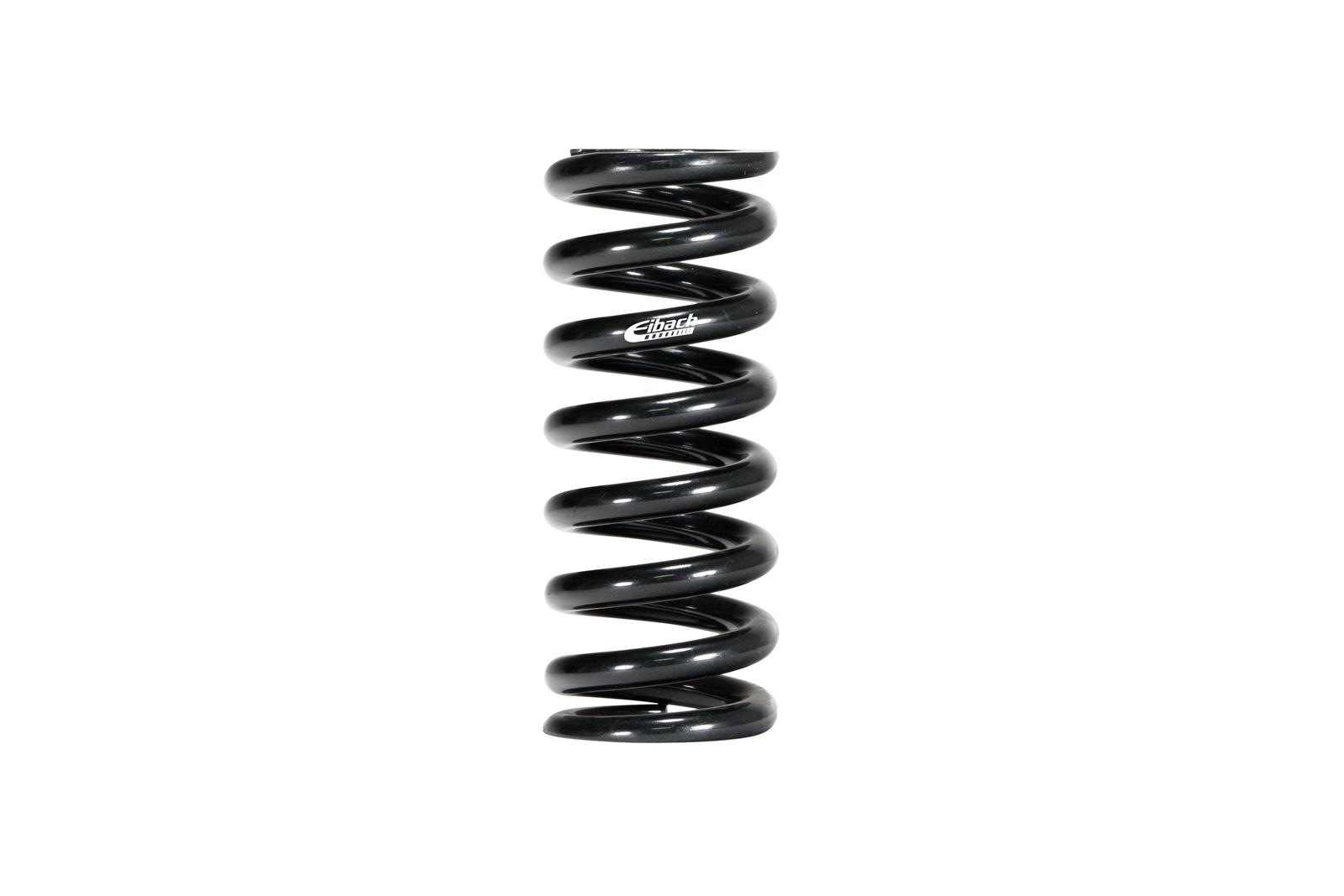

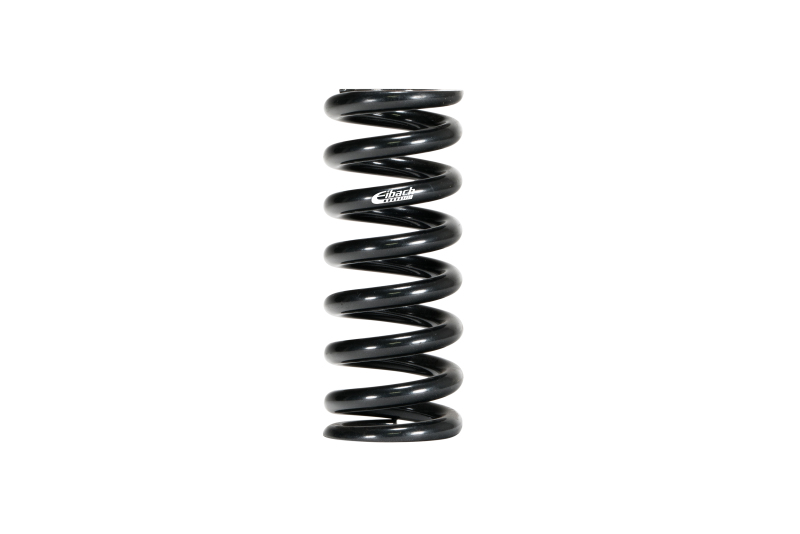

Eibach ERS F3 Spring (Standard)
Eibach ERS F3 Spring (Standard)
A$226.45
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
ERS Coilover Springs are produced to motorsport-grade tolerances, retaining consistent rate and static height.
Product Overview
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Product Details
| Color: | Black |
|---|---|
| Description: | Single Spring |
| End 1 Type: | Flat Ground |
| Finish: | Powder Coated |
| Maximum Inside Diameter: | 36 |
| Part Number: | eib54588 |
Part Type
Coil Spring
Features
- 36mm I.D. Formula Springs Available in a Full Range of Rates
- Each Spring Individually Tested and Rated
- Lowest Side Loads with Load Center Ideally Located Relative to the Spring Axis
- Maximum Travel in Combination with Smallest Block Heights
Specifications
- Product Attributes - Brand
- Eibach
- Product Attributes - Manufacturer's Part Number
- 54588
- Product Attributes - Part Type
- Coilover Springs
- Product Attributes - Product Line
- Eibach Formula Springs
- Product Attributes - UPC
- 803050385178
- Product Attributes - Coilover Spring Inside Diameter (in.)
- 1.420 in.
- Product Attributes - Coilover Spring Inside Diameter (mm)
- 36.07mm
- Product Attributes - Coilover Spring Length (in.)
- 2.400 in.
- Product Attributes - Coilover Spring Length (mm)
- 60.96mm
- Product Attributes - Progressive Rate Spring
- No
- Product Attributes - Coilover Spring Rate (lbs/in)
- 1,200 lbs./in.
- Product Attributes - Spring Finish
- Black
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Eibach |
|---|---|
| StreetFX SKU | eib54588 |
| SFX Item ID | 4420431 |
| Supplier Item Code | 4420431 |
| Manufacturer SKU | 54588 |
| Manufacturer UPC | 803050385178 |
