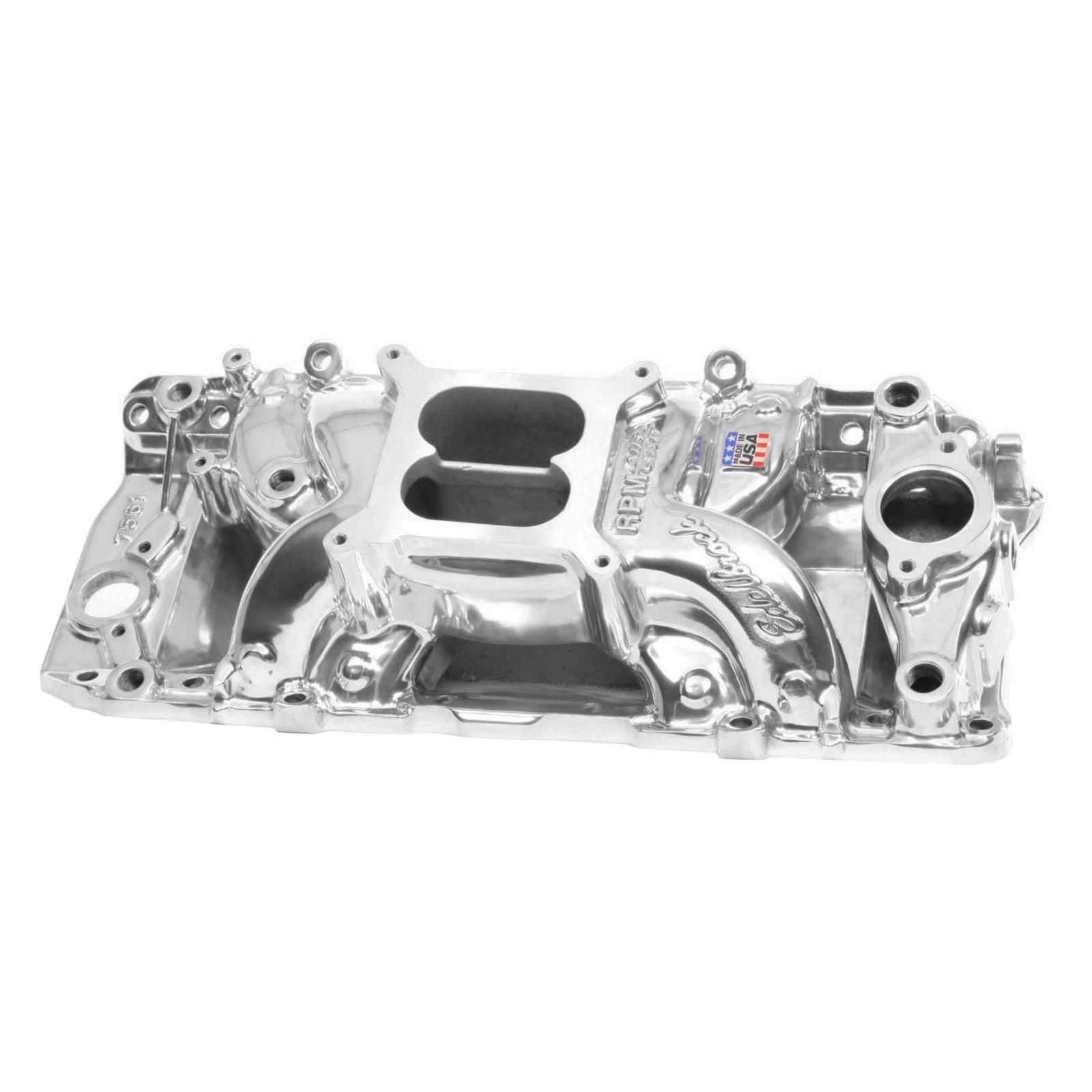

Edelbrock Polished B/B Chevy O-Port RPM Air-Gap Manifold
Edelbrock Polished B/B Chevy O-Port RPM Air-Gap Manifold
A$1,919.48
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Will not fit under the stock hood of a Corvette, 1965-67 Chevelle or 1967-81 Camaro.
Edelbrock part #75611 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. The RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover. This manifold offers a polished finish for a brilliant shine and classic look.
Product Overview
Edelbrock part #75611 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. The RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover. This manifold offers a polished finish for a brilliant shine and classic look.
Features and Benefits
- Larger Plenum and Runners Maximizes Other Upgrades
Product Details
| Basic Operating RPM Range: | 1500-6500 |
|---|---|
| CNC Ported: | No |
| Center Maximum Height: | 5.220 |
| Cylinder Head Type: | Oval Port- Large |
| Description: | RPM Air-Gap 2-0 Intake Manifold |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Chevy Big Block (396-502) |
| Finish: | Polished |
| Flange Type: | 4150 |
| Front Maximum Height: | 4.450 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | One |
| Part Number: | ede75611 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Rear Maximum Height: | 6.000 |
| Series: | RPM Air-Gap |
| Single Or Dual Plane Type: | Dual |
| Usage: | Street/Hi-Performance |
| Vehicle Model: | Chevrolet |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Big-Block:396 (6.5L)-502 (8.2L)
Part Type
Engine Intake Manifold
Features
- Larger Plenum and Runners Maximizes Other Upgrades
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 75611
- Product Attributes - Part Type
- Intake Manifolds, Carbureted
- Product Attributes - Product Line
- Edelbrock Performer RPM Air-Gap Intake Manifolds
- Product Attributes - UPC
- 085347756117
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Carburetor Quantity
- One
- Product Attributes - Intake Style
- Dual plane
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Intake Manifold Height
- 5.220 in.
- Product Attributes - Intake Color
- Polished
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - EGR
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Will not fit under the stock hood of a Corvette, 1965-67 Chevelle or 1967-81 Camaro.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede75611 |
| SFX Item ID | 4236933 |
| Supplier Item Code | 4236933 |
| Manufacturer SKU | 75611 |
| Manufacturer UPC | 85347756117 |
| Alternative References | edl-75611, EDB75611 |
Brochures
Compatibility
Chevrolet:Big-Block:396 (6.5L)-502 (8.2L)
