Edelbrock Performer Tbi Manifold 4 3 V-6
Edelbrock Performer Tbi Manifold 4 3 V-6
A$1,281.13
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

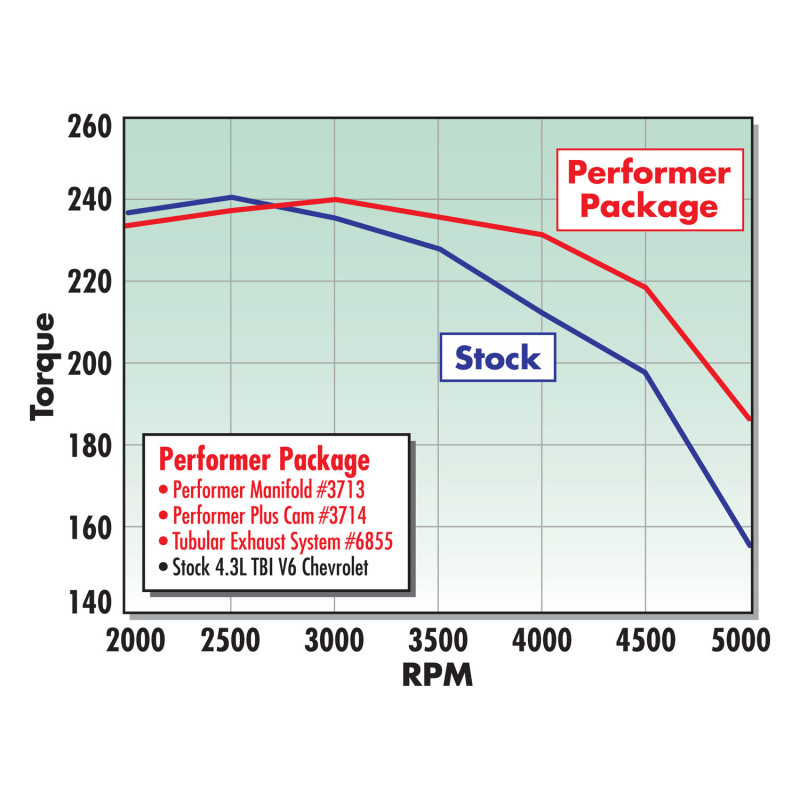

Edelbrock part #3713 Performer 4.3L T.B.I V6 intake manifold is designed for street 1987-94 Chevrolet 4.3L V6 with factory Throttle Body Injection. The Performer 4.3L intake manifold provides outstanding throttle response and torque increases from idle to 5500 rpm. Accepts all factory accessories/hardware. Throttle body unit remains in stock location. Not for 1994 and later engines equipped with flash memory computer. Flash memory ECM is located underhood. A computer chip is available at no charge. Return postage paid card comes with the manifold to receive the chip.
Product Overview
Edelbrock part #3713 Performer 4.3L T.B.I V6 intake manifold is designed for street 1987-94 Chevrolet 4.3L V6 with factory Throttle Body Injection. The Performer 4.3L intake manifold provides outstanding throttle response and torque increases from idle to 5500 rpm. Accepts all factory accessories/hardware. Throttle body unit remains in stock location. Not for 1994 and later engines equipped with flash memory computer. Flash memory ECM is located underhood. A computer chip is available at no charge. Return postage paid card comes with the manifold to receive the chip.
Features and Benefits
- Stock Throttle Body Remains in Stock Position
Product Details
| Basic Operating RPM Range: | Idle-5500 |
|---|---|
| CNC Ported: | No |
| Center Maximum Height: | 4.540 |
| Cylinder Head Type: | Standard |
| Description: | Performer Series Intake Manifold |
| EGR Port: | Yes |
| Emission: | With EGR |
| Engine Make/Size: | Chevy 200-262 (90 Degree) |
| Finish: | Satin |
| Flange Type: | Factory T.B.I. |
| Front Maximum Height: | 3.930 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | None; For Fuel Injection |
| Part Number: | ede3713 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | Idle-6000 |
| Rear Maximum Height: | 5.150 |
| Series: | Performer |
| Single Or Dual Plane Type: | Dual |
| Usage: | Street/Hi-Performance |
| Vehicle Model: | Chevrolet |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block 90 Deg V6:262 (4.3L)
Part Type
Engine Intake Manifold
Features
- Stock Throttle Body Remains in Stock Position
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 3713
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Edelbrock Performer 4.3L T.B.I. V6 Intake Manifolds
- Product Attributes - UPC
- 085347037131
- Product Attributes - Cylinder Head Configuration
- Stock
- Product Attributes - Fuel Injection Style
- Throttle body
- Product Attributes - Basic Operating RPM Range
- Idle-5,500
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - EGR
- Yes
- Product Attributes - Aftermarket Fuel Rail Required
- No
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- No
- Product Attributes - Supplemental Bosses Machined
- No
- Product Attributes - Runners Included
- No
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Natural
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Engines with a counter shaft will have clearance issues with this manifold. This intake manifold is not compatible on vehicles with flash memory ECM's. Please see the "charts and guides" tab for a comparison of square bore vs spread bore.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede3713 |
| SFX Item ID | 4236602 |
| Supplier Item Code | 4236602 |
| Manufacturer SKU | 3713 |
| Manufacturer UPC | 85347037131 |
| Alternative References | edl-3713, V-6, thunder;?3714;, 4.3l;, EDB3713 |
Brochures
Compatibility
Chevrolet:Small-Block 90 Deg V6:262 (4.3L)
