Edelbrock LS1 Carbureted Manifold Only

SKU: EDE29087

Intake Manifolds, Carbureted

EDE Victor Intake Manifold...

Edelbrock

Edelbrock LS1 Carbureted Manifold Only

SKU: EDE29087

Intake Manifolds, Carbureted

EDE Victor Intake Manifold...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

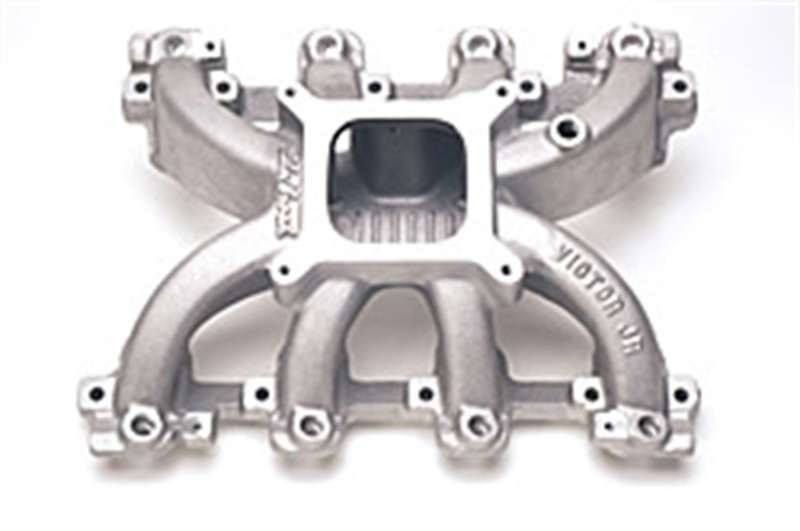

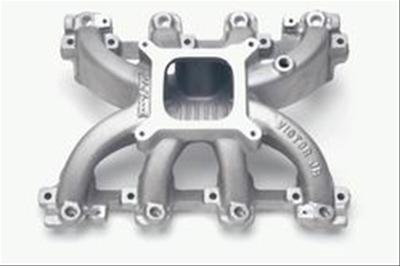

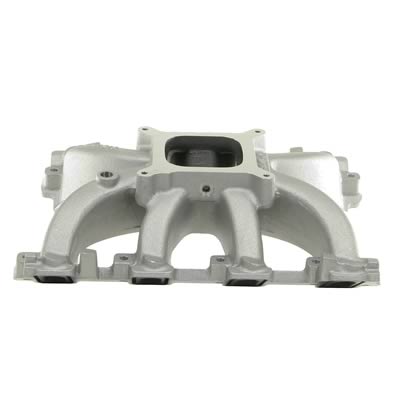

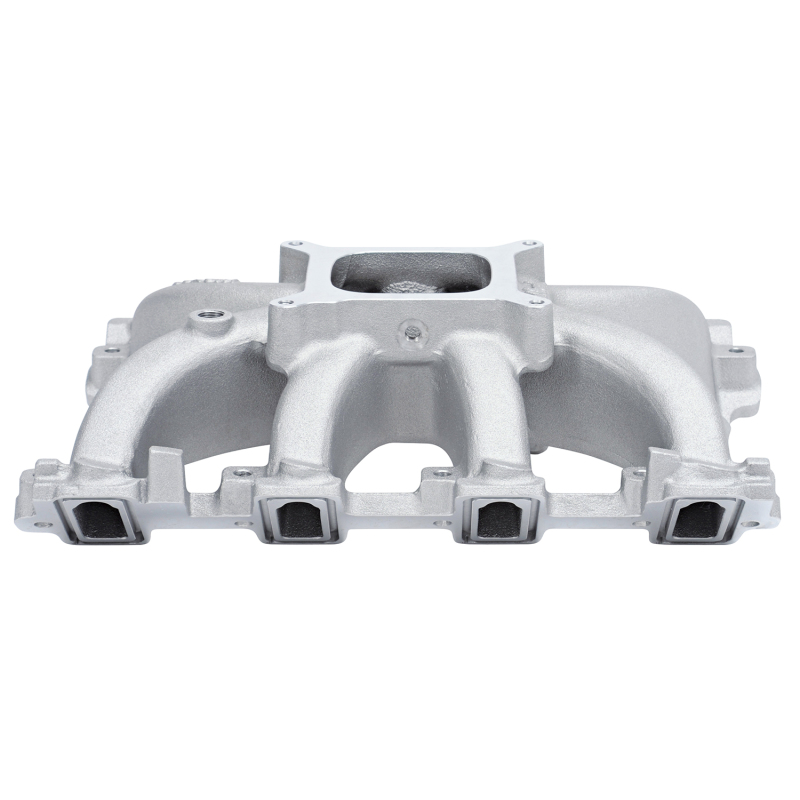

Edelbrock part #29087 Victor Jr. LS1 intake manifold is a high-rise single-plane intake capable of supporting up to 600 hp. The Victor Jr. LS1 features a flange that accepts a square-bore carburetors. It can be used on LS2 applications when matched with MSD's #6012 LS2 ignition controller (available through MSD Performance). Includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Most applications will require hood modification.

Product Overview

Features and Benefits

Use OEM Factory O-Rings for Intake Gasket

Product Details

Basic Operating RPM Range:	3500-7500
CNC Ported:	No
Center Maximum Height:	4.950
Cylinder Head Type:	Standard
Description:	Victor Jr. Series Intake Manifold
EGR Port:	No
Emission:	Without EGR
Engine Make/Size:	Chevy Small Block LS1
Finish:	Satin
Flange Type:	4150
Front Maximum Height:	4.950
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Number of Carbs:	One
Part Number:	ede29087
Position:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	3500-7500
Rear Maximum Height:	4.950
Series:	Victor
Single Or Dual Plane Type:	Single
Usage:	Racing
Vehicle Model:	Chevrolet
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Small-Block LC9:325 (5.3L);Chevrolet:Small-Block LH8:325 (5.3L);Chevrolet:Small-Block LMF:325 (5.3L);Chevrolet:Small-Block LMG:325 (5.3L);Chevrolet:Small-Block LY5:325 (5.3L);Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-15 10:06:30

Features

Use OEM Factory O-Rings for Intake Gasket

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 29087
Product Attributes - Part Type: Intake Manifolds, Carbureted
Product Attributes - Product Line: Edelbrock Victor Jr. Carbureted Intake Manifolds
Product Attributes - UPC: 085347290871
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Carburetor Quantity: One
Product Attributes - Intake Style: Single plane
Product Attributes - Basic Operating RPM Range: 3,500-7,500
Product Attributes - Intake Manifold Height: 6.070 in.
Product Attributes - Intake Color: Natural
Product Attributes - Intake Material: Aluminum
Product Attributes - EGR: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede29087
SFX Item ID	4237395
Supplier Item Code	4237395
Manufacturer SKU	29087
Manufacturer UPC	85347290871
Alternative References	edl-29087, EDB29087, LS1
