Edelbrock Heat Exchanger Single Pass Single Row 31 000 Btu/Hr 22In W X 16 5In H X 1 5In D Black

SKU: EDE15405

Heat Exchangers

EDE Heat Exchanger...

Edelbrock

Edelbrock Heat Exchanger Single Pass Single Row 31 000 Btu/Hr 22In W X 16 5In H X 1 5In D Black

SKU: EDE15405

Heat Exchangers

EDE Heat Exchanger...

LOW STOCK! Est Ship 3-5 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

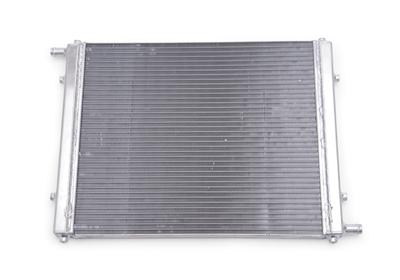

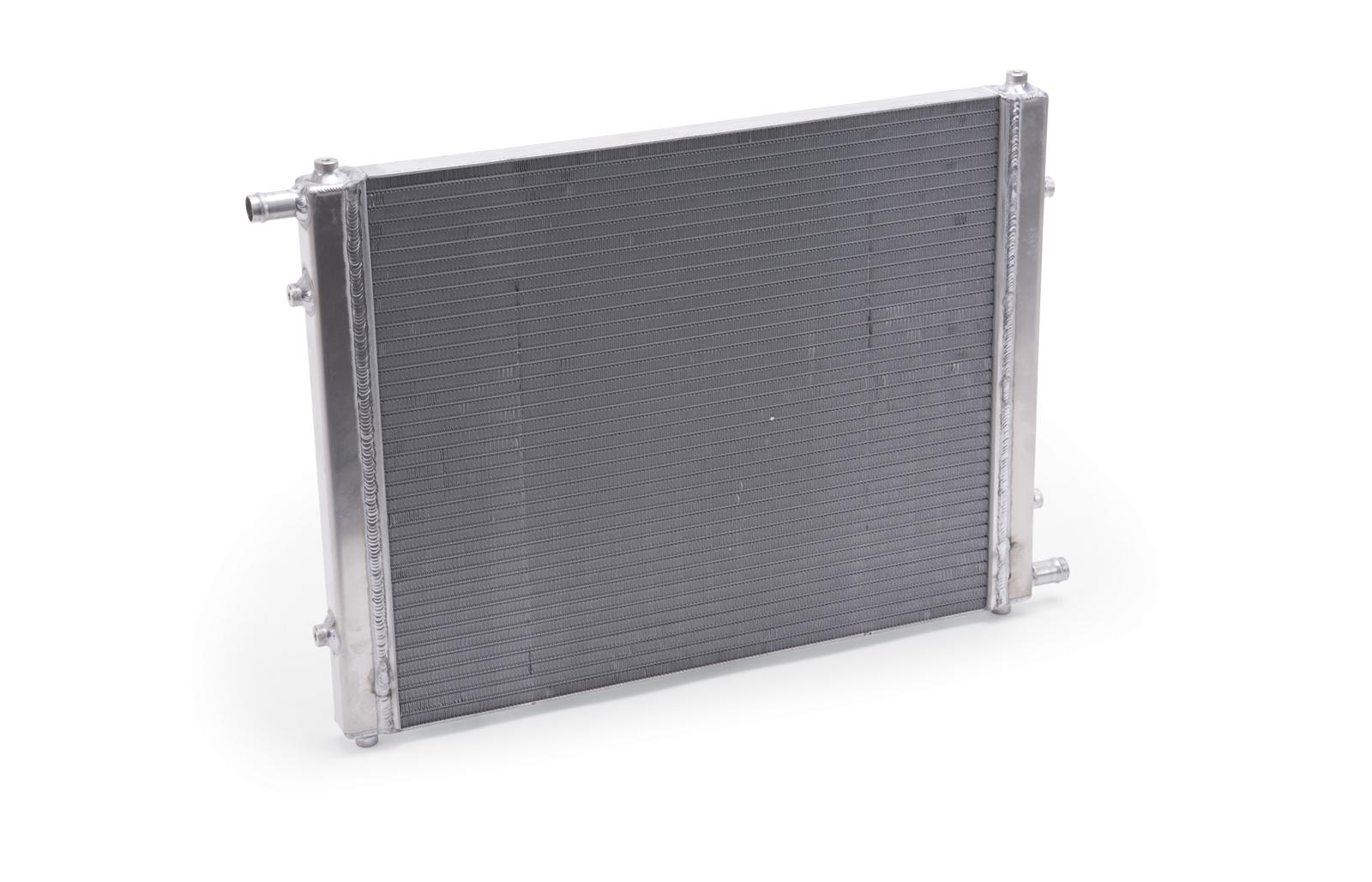

Edelbrock heat exchanger part #15405 is a single pass/single row design and delivers 31,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat Exchanger part #15405 is a Single Pass/Single Row Universal Heat Exchanger with the following dimensions (22in. W x 16.5in. H x 1.5in. D) and has 8 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.

Product Overview

Features and Benefits

3/4 Inch Barbed Inlet And Outlet

Product Details

BTU Rating:	31000 btu/hr
Construction:	Single Pass
Description:	Supercharger Heat Exchanger
Finish:	Natural
Grade Type:	Performance
Inlet Port Outside Diameter:	0.75
Inlet Port Quantity:	1
Length:	22
Material:	Aluminum
Mounting Hardware Included:	No
Mounting Hole Diameter:	M6 x 1.0
Mounting Hole Quantity:	8
Outlet Port Outside Diameter:	0.75
Outlet Port Quantity:	1
Part Number:	ede15405
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Row Quantity:	Single
Thickness:	1.5
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes
Width:	16.41

Part Type

Supercharger Heat Exchanger

Data: v4.2 - Upd: 2026-10-14 02:07:09

Features

3/4 Inch Barbed Inlet And Outlet

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 15405
Product Attributes - Part Type: Heat Exchangers
Product Attributes - Product Line: Edelbrock E-Force Heat Exchangers
Product Attributes - UPC: 085347154050
Product Attributes - Heat Exchanger Type: Single pass
Product Attributes - Heat Exchanger Material: Aluminum
Product Attributes - Heat Exchanger Color: Black
Product Attributes - Width (in.): 22.000 in.
Product Attributes - Height (in.): 16.410 in.
Product Attributes - Depth (in.): 1.500 in.
Product Attributes - Heat Exchanger Inlet Size: 0.750 in.
Product Attributes - Inlet Attachment: Hose barb
Product Attributes - Heat Exchanger Outlet Size: 0.750 in.
Product Attributes - Outlet Attachment: Hose barb
Product Attributes - Fan Included: No
Product Attributes - Mounting Brackets Included: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Single pass, single row design that provides 31,000 btu/hr. of heat transfer. It also features eight 6mm x1.0 threaded bungs, one at every corner, for easy installation.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede15405
SFX Item ID	4236413
Supplier Item Code	4236413
Manufacturer SKU	15405
Manufacturer UPC	85347154050
Alternative References	edl-15405, ls1;, ls3;, f-150;, EDB15405, 22In
