Edelbrock
Edelbrock Carburetor Performer Series 4-Barrel 600 CFM Electric Choke Satin Finish
ede1406
A$1,054.71

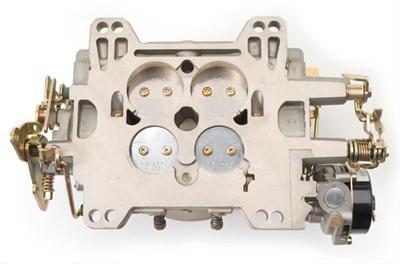

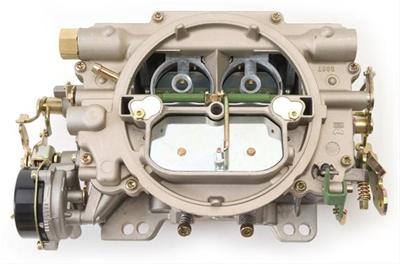

Edelbrock Carburetor Marine 4-Barrel 600 CFM Electric Choke
Edelbrock Carburetor Marine 4-Barrel 600 CFM Electric Choke
A$1,328.95
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The Edelbrock 1409 Marine Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1409 Marine Series 600 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for trouble-free operation.
Product Overview
The Edelbrock 1409 Marine Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1409 Marine Series 600 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for trouble-free operation.
Features and Benefits
- Installation And Tuning DVD Included With Every New Carb
Product Details
| Barrel Quantity: | 4 Barrel |
|---|---|
| Barrel: | Four |
| Body Height: | 3.25 |
| Booster Type: | annular |
| Bore Diameter: | Primary Bore 1.44; Secondary Bore 1.69 |
| CFM: | 600 |
| Choke Type: | Electric |
| Choke: | Electrical |
| Condition: | New |
| Description: | Marine Series Carburetor |
| EGR Port: | No |
| Emission: | Without EGR |
| Finish: | Zinc-Dichromate |
| Flange Shape: | Square |
| Flange: | Square Bore |
| Gasket Or Seal Included: | Yes |
| Main Venturi Diameter: | 1.19 |
| Material: | Aluminum |
| Maximum Flow Rating: | 600 |
| Metering Rod Size: | .068 x .047 |
| Part Number: | ede1409 |
| Primary Jet Diameter: | 0.098 |
| Primary Power Valve: | N/A |
| RGL: | WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Jet Diameter: | 0.101 |
| Series: | Marine |
| Spring Force: | 5" Hg (Orange) |
| Type: | Marine |
| Usage: | Marine |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Part Type
Carburetor
Features
- Installation And Tuning DVD Included With Every New Carb
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 1409
- Product Attributes - Part Type
- Carburetors
- Product Attributes - Product Line
- Edelbrock Marine Carburetors
- Product Attributes - UPC
- 085347014095
- Product Attributes - CFM
- 600
- Product Attributes - Fuel Category
- Gasoline
- Product Attributes - Remanufactured
- No
- Product Attributes - Number of Barrels
- 4
- Product Attributes - Carburetor Flange
- Square bore
- Product Attributes - Choke
- Electric
- Product Attributes - Secondary Type
- Mechanical
- Product Attributes - Fuel Inlet
- Single
- Product Attributes - Carburetor Color
- Gold iridited
- Product Attributes - Ford Kickdown
- No
- Product Attributes - Throttle Linkage Type
- Universal
- Product Attributes - Carburetor Height (in.)
- 3.250 in.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for marine performance in small-block V8 engines with a variety of manifolds including Edelbrock Performer, Performer RPM, RPM Air-Gap, Torker II and other brands of similar design. Also ideal for Chevy 4.3L V6 engines with a Performer manifold (see Manifold Section) and Calibration Kit #1485. By design, this does not have a fast idle adjustment screw. Please see the charts and guides tab for a comparison of square bore vs spread bore.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1409 |
| SFX Item ID | 4236493 |
| Supplier Item Code | 4236493 |
| Manufacturer SKU | 1409 |
| Manufacturer UPC | 85347014095 |
| Alternative References | edl-1409, 4-Barrel, EDB1409 |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
