Edelbrock 1Pr SBF Cyl Head E-205 2 08 Intake Complete Assembled w/ Springs
Edelbrock 1Pr SBF Cyl Head E-205 2 08 Intake Complete Assembled w/ Springs
A$4,825.06
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

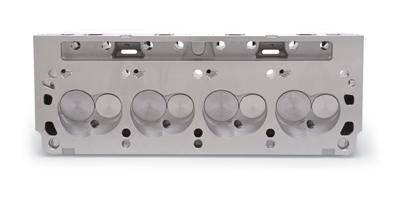

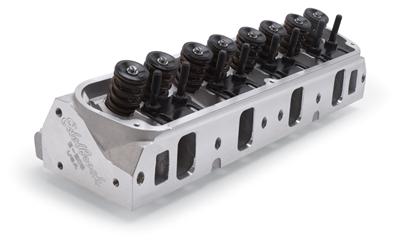

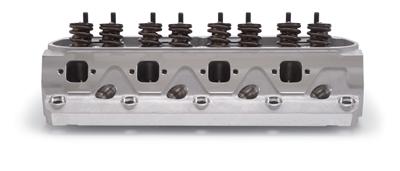

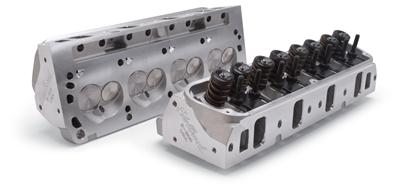

The Edelbrock #5027 E-Series Cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Street Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
Product Overview
The Edelbrock #5027 E-Series Cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Street Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
Features and Benefits
- Made In U.S.A.
Product Details
| CNC Ported: | No |
|---|---|
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 60 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | E-Series E-205 Cylinder Head |
| Emission: | Non-Emissions |
| Engine Make/Size: | Ford Small Block |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 62 |
| Exhaust Valve Diameter: | 1.60 |
| Family: | E-Series |
| Finish: | Polished |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Head Casting Number: | N/A |
| Horsepower: | 400-525 |
| Intake Runner Volume: | 205 |
| Intake Valve Diameter: | 2.08 |
| Material: | Aluminum |
| Part Number: | ede5027 |
| Preparation: | Bolt On (Not Required) |
| Push Rod Diameter: | (Suggested) 0.3125 |
| Quantity: | Set of 2 |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.375 |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | E-Series |
| Type: | Complete |
| Usage: | Racing |
| Valve Angle: | 20 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.55 |
| Valve Spring Maximum Lift: | 0.650 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)/351 (5.8L)
Part Type
Engine Cylinder Head
Features
- Made In U.S.A.
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 5027
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock E-205 Cylinder Heads
- Product Attributes - UPC
- 085347050277
- Product Attributes - Combustion Chamber Volume (cc)
- 60
- Product Attributes - Intake Runner Volume (cc)
- 205cc
- Product Attributes - Exhaust Runner Volume (cc)
- 62cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic roller
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 2.080 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Combustion Chamber Style
- Heart
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Square
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.600 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.650 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.460 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arm Nut Thread Size
- 3/8 in.-24
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 5/16 in.
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 20
- Product Attributes - Exhaust Valve Angle
- 20
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Powdered metal
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Notes
- Hardened pushrods required, use Edelbrock EDL-9632 (flat tappet only) for 302 applications. Will not accept rail rockers. 289-302 V8's require head bolt bushings EDL-9680 and either head bolt kit EDL-8552 (7/16") or stock head bolts. Bare heads will have valve guides and seats installed, but will require final sizing & a valve job to match the valves you will be using.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede5027 |
| SFX Item ID | 4235969 |
| Supplier Item Code | 4235969 |
| Manufacturer SKU | 5027 |
| Manufacturer UPC | 85347050277 |
| Alternative References | edl-5027, EDB5027, 1Pr, E-205 |
Brochures
Compatibility
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)/351 (5.8L)
