Edelbrock Pushrods BBC Retro Fit Hydraulic Roller Lifters

SKU: EDE9647

Pushrods, Valvetrain

EDE Pushrods...

Edelbrock

Edelbrock Pushrods BBC Retro Fit Hydraulic Roller Lifters

SKU: EDE9647

Pushrods, Valvetrain

EDE Pushrods...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

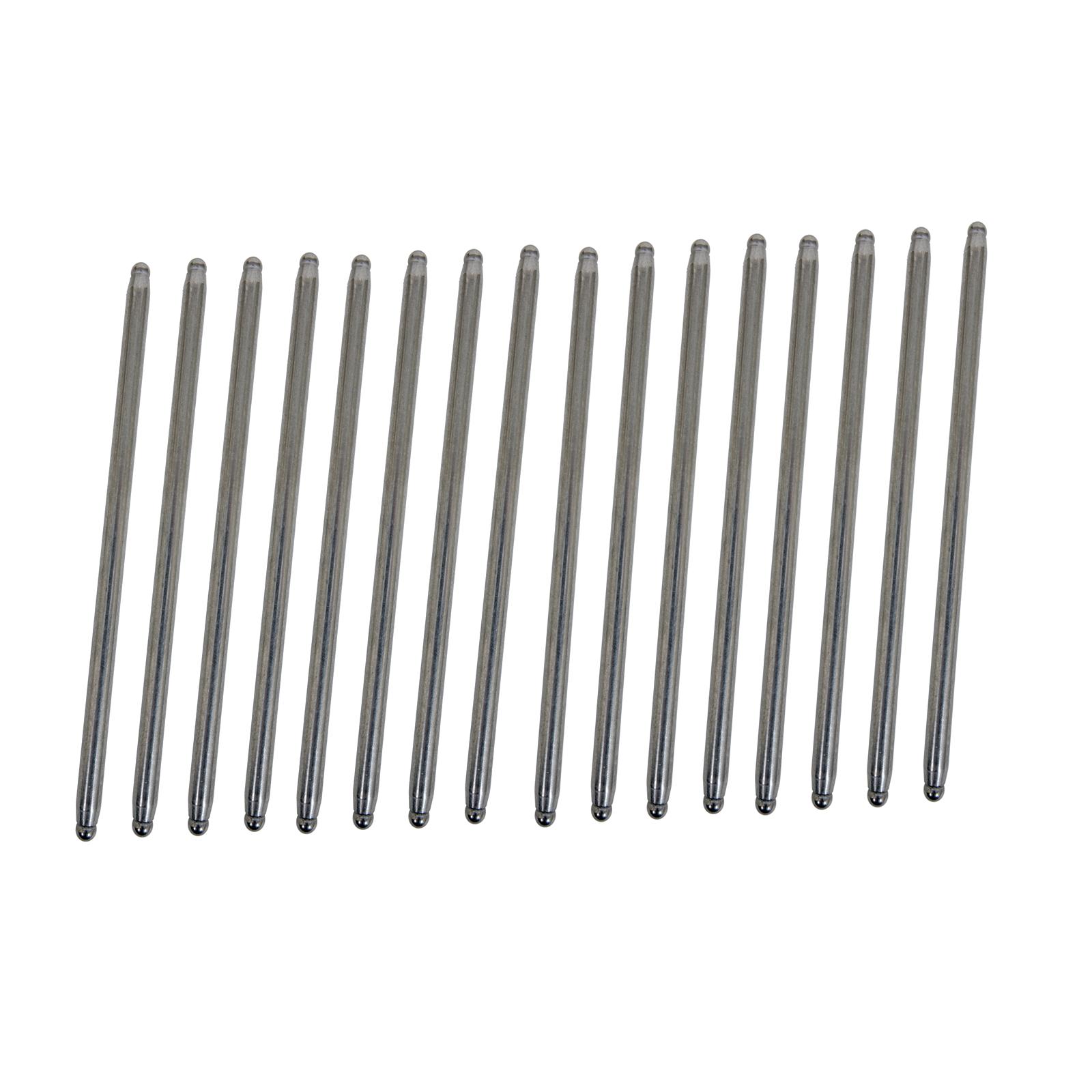

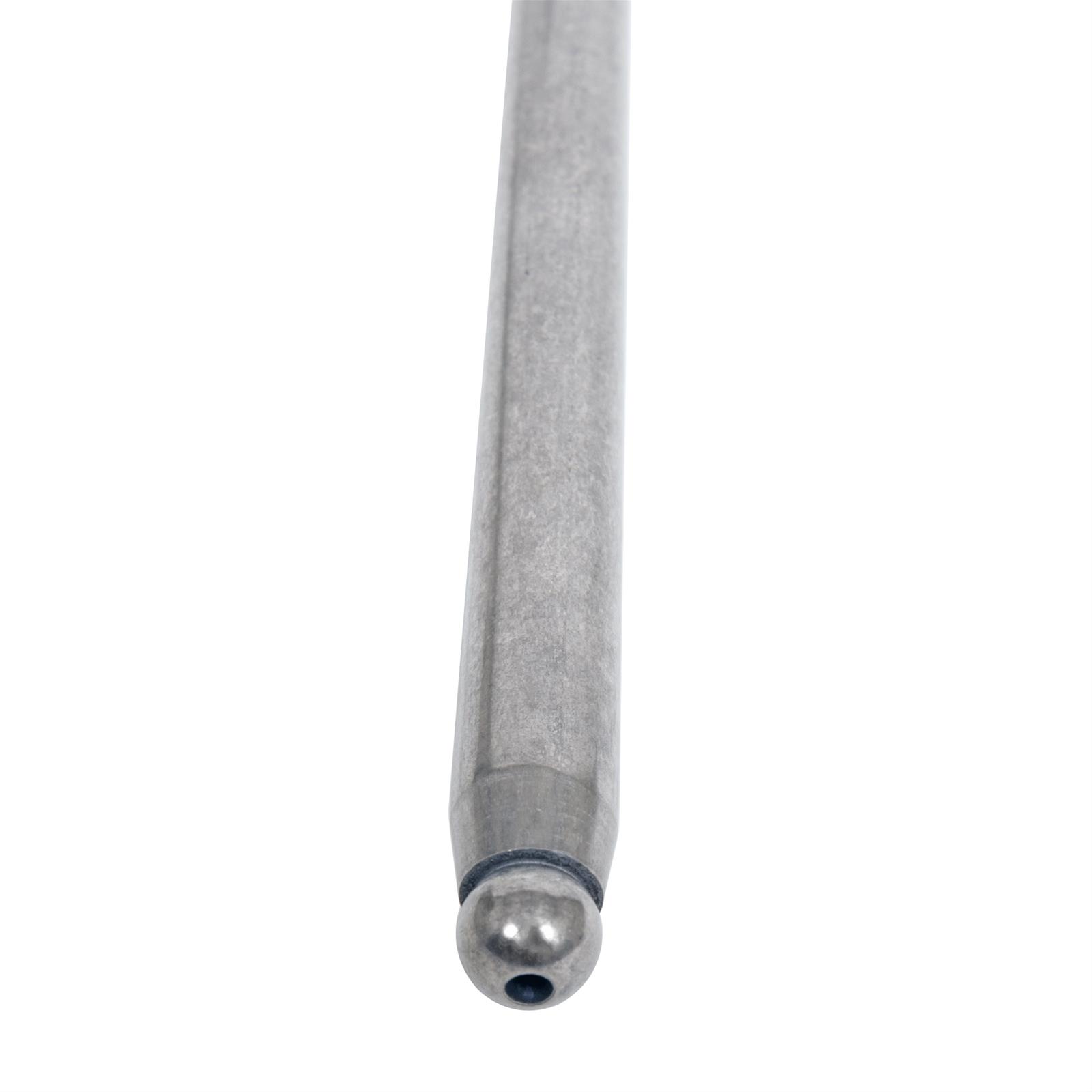

Edelbrock part #9647 Pushrods are designed for big-block Chevy V-8 engine applications. These one-piece pushrods are manufactured from high quality 4130 Chromoly steel tubing that has been surface hardened for maximum durability. They have precise formed wedged ends for a high quality fit with the cup seats. A black oxide finish is added for corrosion resistance.Pushrod Specifications:- For use with Edelbrock hydraulic roller lifters #97433- Outside Diameter: 3/8"- Length: 7.800"/8.800"

Product Overview

Edelbrock part #9647 Pushrods are designed for big-block Chevy V-8 engine applications. These one-piece pushrods are manufactured from high quality 4130 Chromoly steel tubing that has been surface hardened for maximum durability. They have precise formed wedged ends for a high quality fit with the cup seats. A black oxide finish is added for corrosion resistance. Pushrod Specifications: - For use with Edelbrock hydraulic roller lifters #97433 - Outside Diameter: 3/8" - Length: 7.800"/8.800"

Features and Benefits

Use With Or Without Hardened Steel Guide plates

Product Details

Bottom Tip Diameter:	0.375
Bottom Tip Type:	Ball
Description:	Pushrod Set
Diameter (in.):	0.375 in.
Diameter:	0.375
Engine Make/Size:	Chevy Big Block (396-502)
Finish:	Black Oxide
Length:	(8-Intake) 7.800 in, (8-Exhaust) 8.800
Material:	Chromoly
Overall Length (in.):	8.830 in.
Overall Length:	8.830 in.
Part Number:	ede9647
Quantity:	Set of 16
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Recommended Use:	For Use With Edelbrock Hydraulic Roller Lifters #97433
Top Tip Diameter:	0.375
Top Tip Type:	Ball
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes
Wall Thickness:	0.080

Application Summary

Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L)

Part Type

Engine Push Rod

Data: v4.2 - Upd: 2026-10-13 23:12:18

Features

Use With Or Without Hardened Steel Guide plates

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 9647
Product Attributes - Part Type: Pushrods, Valvetrain
Product Attributes - Product Line: Edelbrock Chromoly Pushrods
Product Attributes - UPC: 085347096473
Product Attributes - Assembled: Yes
Product Attributes - Compatible with Guideplates: Yes
Product Attributes - Pushrod Tube Diameter: 3/8 in.
Product Attributes - Pushrod Material: Chromoly
Product Attributes - Top Tip Style: Ball
Product Attributes - Bottom Tip Style: Ball
Product Attributes - Intake Overall Length (in.): 7.800 in.
Product Attributes - Exhaust Overall Length (in.): 8.800 in.
Product Attributes - One-Piece Pushrod: Yes
Product Attributes - Oiling: Yes
Product Attributes - Tapered: No
Product Attributes - Tip Attachment: Formed
Product Attributes - Top Tip Diameter: 3/8 in.
Product Attributes - Bottom Tip Diameter: 3/8 in.
Product Attributes - Wall Thickness (in.): 0.080 in.
Product Attributes - Heat-Treated: Yes
Product Attributes - Quantity: Sold as a set of 16.
Product Attributes - Notes: For use with Edelbrock hydraulic retro roller lifter kits EDL-97433.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede9647
SFX Item ID	4236872
Supplier Item Code	4236872
Manufacturer SKU	9647
Manufacturer UPC	85347096473
Alternative References	EDB9647, EDL-9647
