Edelbrock Sq Bore Heat Insulator
Edelbrock Sq Bore Heat Insulator
A$75.68
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

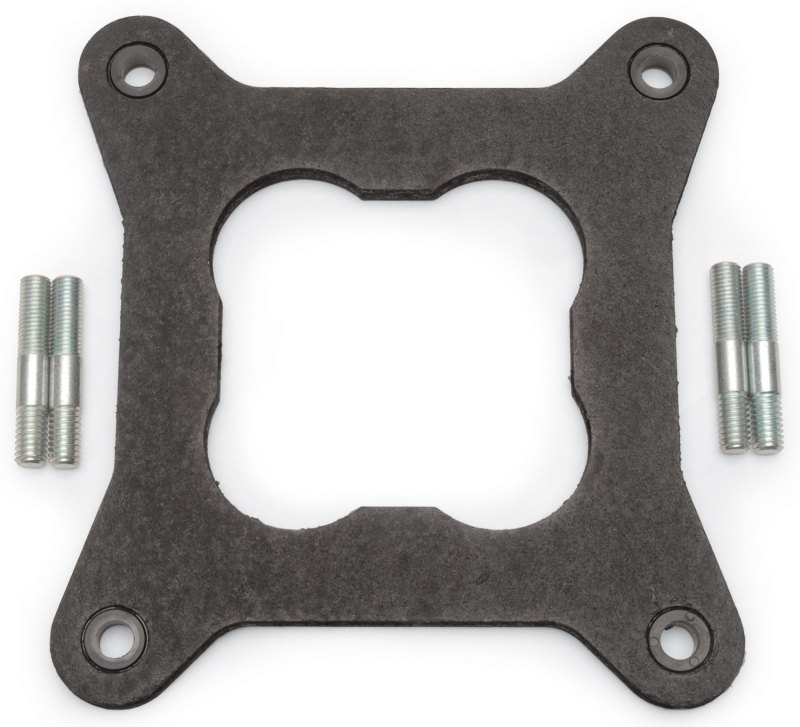

The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures. This gasket features an open center which will allow open plenum Torker and Victor style manifolds to seal properly to the carburetor. Prior to installation, check air cleaner-to-hood clearance to ensure that additional height of heat insulator gasket will not cause interference. Remove air cleaner and all attachments to the carburetor such as fuel line, throttle linkage, and vacuum lines. Be sure to note the position or tag each piece to facilitate re-installation. Remove the carburetor and set it aside, then remove the old base gasket and any additional plates, such as Edelbrock square-bore adapter #2732. Remove the short carb studs and install the longer studs. Install the #9265 heat insulator gasket directly against the manifold, then replace the carb and all other connections. Note that gasket #9265 is rigid enough to replace square-bore adapter plate #2732, if required.
Product Overview
The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures. This gasket features an open center which will allow open plenum Torker and Victor style manifolds to seal properly to the carburetor. Prior to installation, check air cleaner-to-hood clearance to ensure that additional height of heat insulator gasket will not cause interference. Remove air cleaner and all attachments to the carburetor such as fuel line, throttle linkage, and vacuum lines. Be sure to note the position or tag each piece to facilitate re-installation. Remove the carburetor and set it aside, then remove the old base gasket and any additional plates, such as Edelbrock square-bore adapter #2732. Remove the short carb studs and install the longer studs. Install the #9265 heat insulator gasket directly against the manifold, then replace the carb and all other connections. Note that gasket #9265 is rigid enough to replace square-bore adapter plate #2732, if required.
Features and Benefits
- Comes w/Extended Carb Studs
Product Details
| Barrel Quantity: | 4 |
|---|---|
| Description: | Carburetor Heat Insulator Gasket |
| Material: | Nitrile Rubber Composite |
| Part Number: | ede9265 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Recommended Use: | Edelbrock Carburetors |
| Shape: | Square Bore |
| Thickness: | 0.320 |
| Type: | Open Center |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Part Type
Carburetor Heat Insulator
Features
- Comes w/Extended Carb Studs
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 9265
- Product Attributes - Part Type
- Carburetor Base Plate Gaskets
- Product Attributes - Product Line
- Edelbrock Heat Insulator Gaskets
- Product Attributes - UPC
- 085347092659
- Product Attributes - Number of Barrels
- 4
- Product Attributes - Carburetor Flange
- Square bore
- Product Attributes - Gasket Opening Style
- Open center
- Product Attributes - Gasket Thickness (in.)
- 0.320 in.
- Product Attributes - Gasket Material
- Nitrile
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede9265 |
| SFX Item ID | 4237139 |
| Supplier Item Code | 4237139 |
| Manufacturer SKU | 9265 |
| Manufacturer UPC | 85347092659 |
| Alternative References | avs2;, EDB9265, EDL-9265 |
