Edelbrock Water Pump High Performance Pontiac 1969-79 389-455 CI V8 Engines Standard Length
Edelbrock Water Pump High Performance Pontiac 1969-79 389-455 CI V8 Engines Standard Length
A$924.53
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

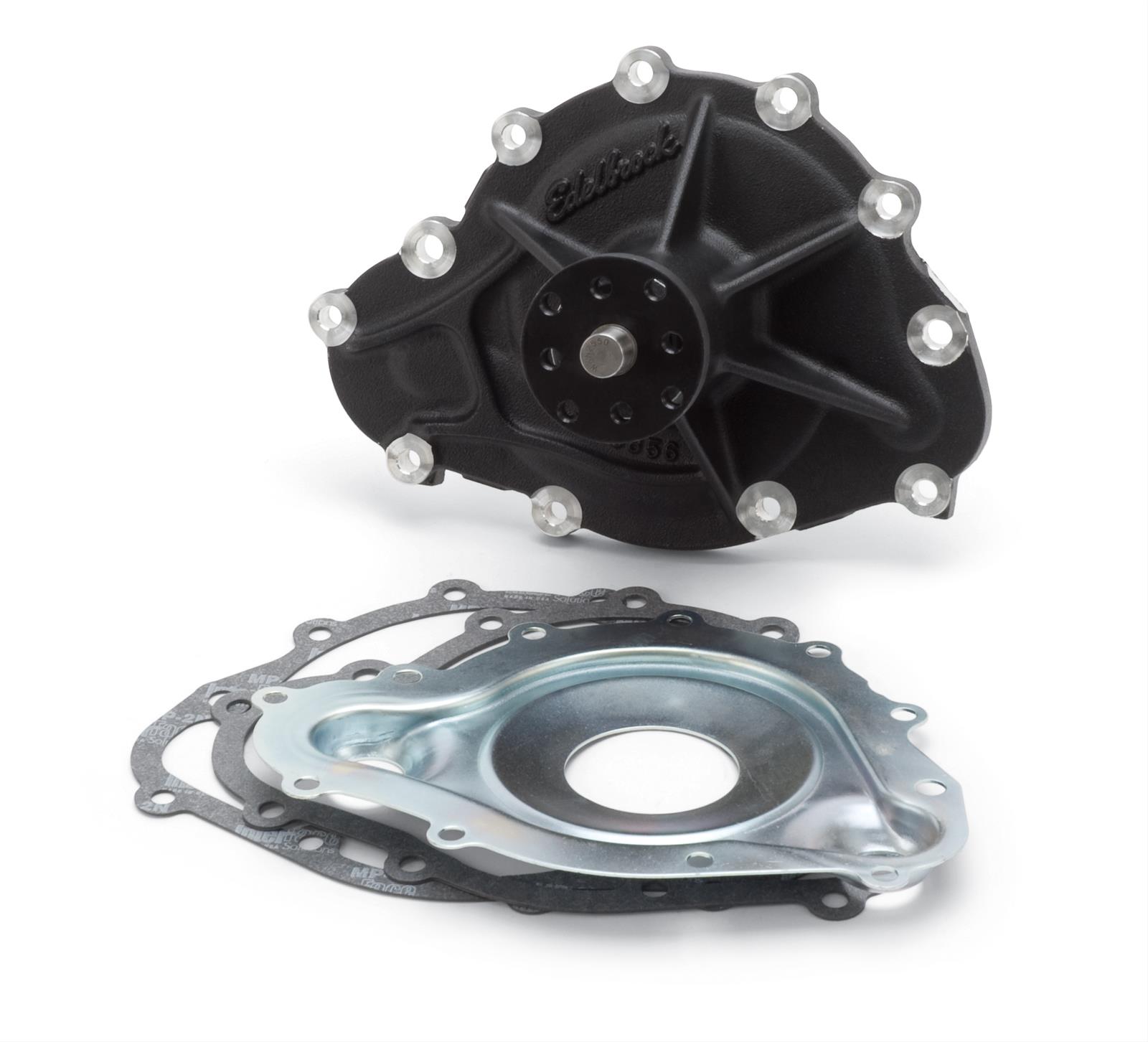

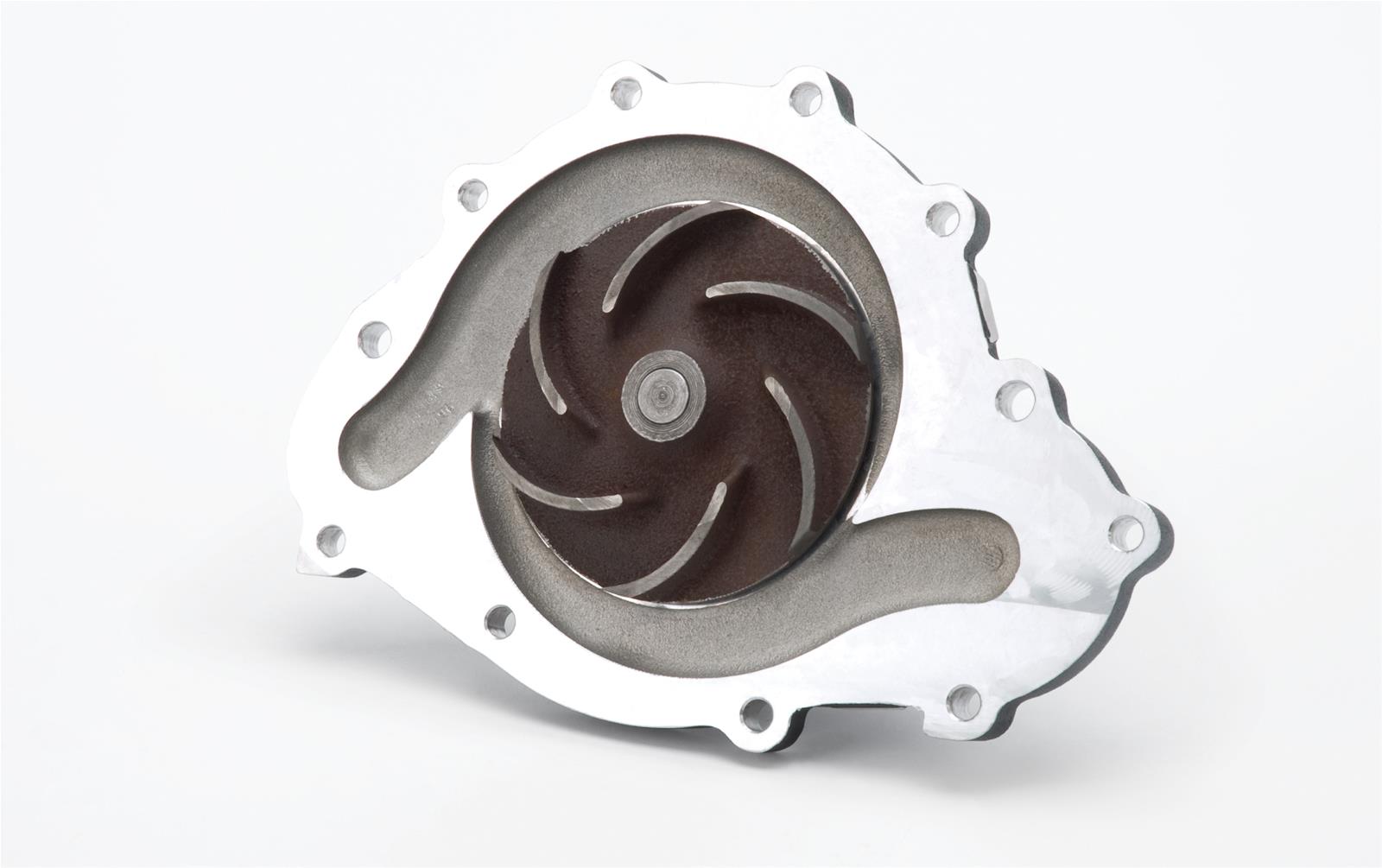

Edelbrock #88563 Water Pump Pontiac 389-455 standard rotation black ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Product Overview
Edelbrock #88563 Water Pump Pontiac 389-455 standard rotation black ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Features and Benefits
- Only Flows In One Direction For Optimum Efficiency
Product Details
| Casting Number: | 8856 |
|---|---|
| Description: | Victor Series Water Pump |
| Engine Make/Size: | Pontiac 350-455 |
| Fan Clutch Included: | No |
| Finish: | As Cast |
| Housing Material: | Aluminum |
| Hub Height: | 4.500 |
| Hub Hole Quantity: | 6 |
| Impeller Material: | Powdered Metal |
| Impeller Rotation: | Standard |
| Impeller Vane Quantity: | 6 |
| Includes Back Housing: | Yes |
| Installation Warnings: | Yes |
| Mounting Hardware Included: | No |
| Mounting Hole Quantity: | 10 |
| Outlet Quantity: | 1 |
| Part Number: | ede88563 |
| Pulley Included: | No |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Related Cooling Fan Components: | No |
| Style: | Street/High-Performance |
| Thermostat And Housing Included: | No |
| Type: | Mechanical |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
| Water Pump Drive Type: | V-Belt |
Application Summary
Pontiac:-:389 (6.4L)-455 (7.5L)
Part Type
Engine Water Pump
Features
- Equal coolant distribution to both sides of the block within 1% for better cooling efficiency
- Heavy-duty seal used for leak-proof operation and long life
- Heavy-duty, 0.75" internal ball/roller bearing used to withstand higher torsional loads at high rpm
- Only Flows In One Direction For Optimum Efficiency
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 88563
- Product Attributes - Part Type
- Water Pumps, Mechanical
- Product Attributes - Product Line
- Edelbrock Victor Series High Performance Street Mechanical Water Pumps
- Product Attributes - UPC
- 085347885633
- Product Attributes - Pump Flow
- High-volume
- Product Attributes - Water Pump Rotation
- Clockwise
- Product Attributes - Pump Material
- Aluminum
- Product Attributes - Pump Color
- Black
- Product Attributes - Water Pump Inlet Diameter (in.)
- 1.78
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Gaskets included. Fits engines with 11 bolt front timing cover with back plate. Has 3/4 in. ball/ball bearing. Dimension from block surface to hub 4 1/2 in.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede88563 |
| SFX Item ID | 4237451 |
| Supplier Item Code | 4237451 |
| Manufacturer SKU | 88563 |
| Manufacturer UPC | 85347885633 |
| Alternative References | EDB88563, EDL-88563 |
Brochures
Compatibility
Pontiac:-:389 (6.4L)-455 (7.5L)
