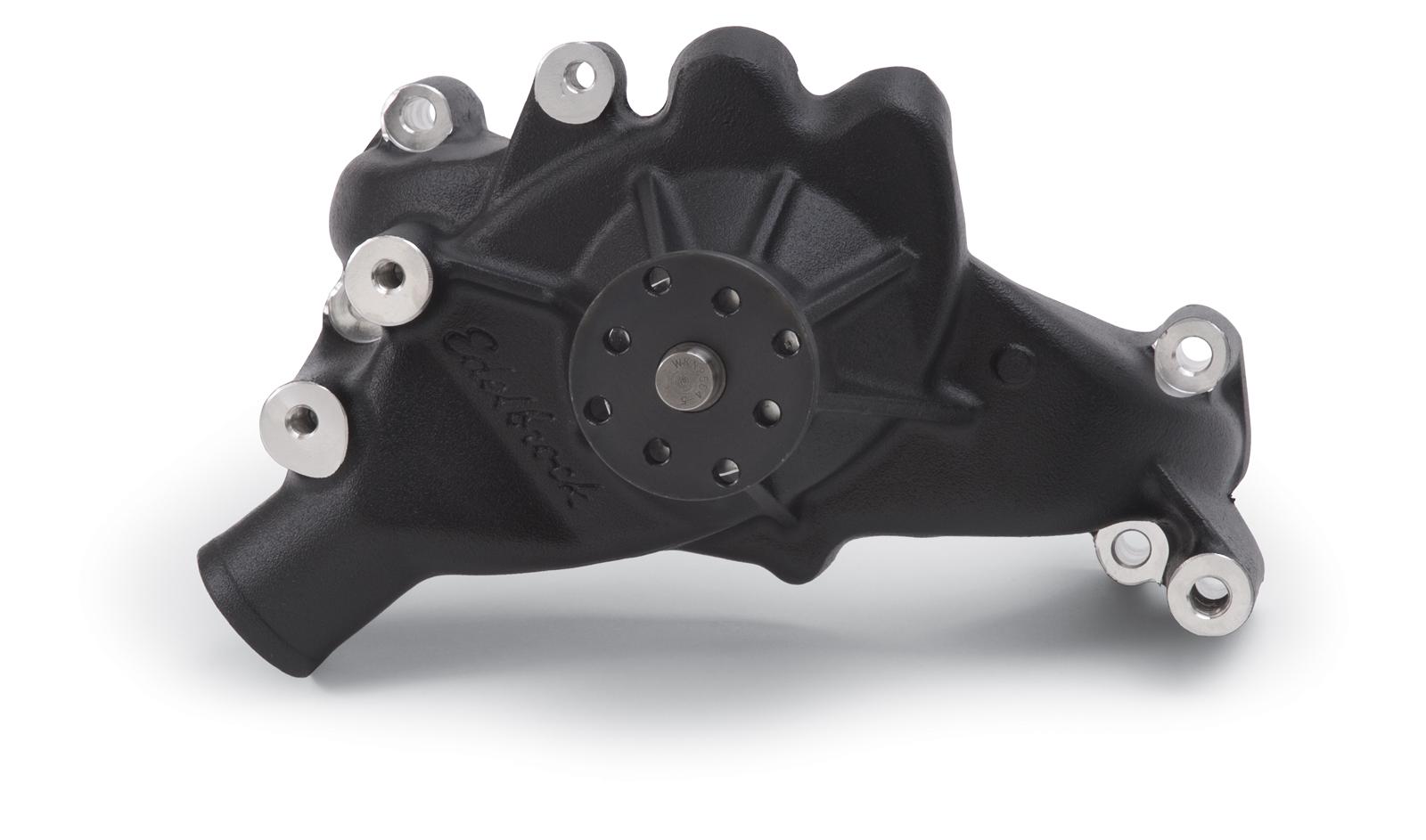

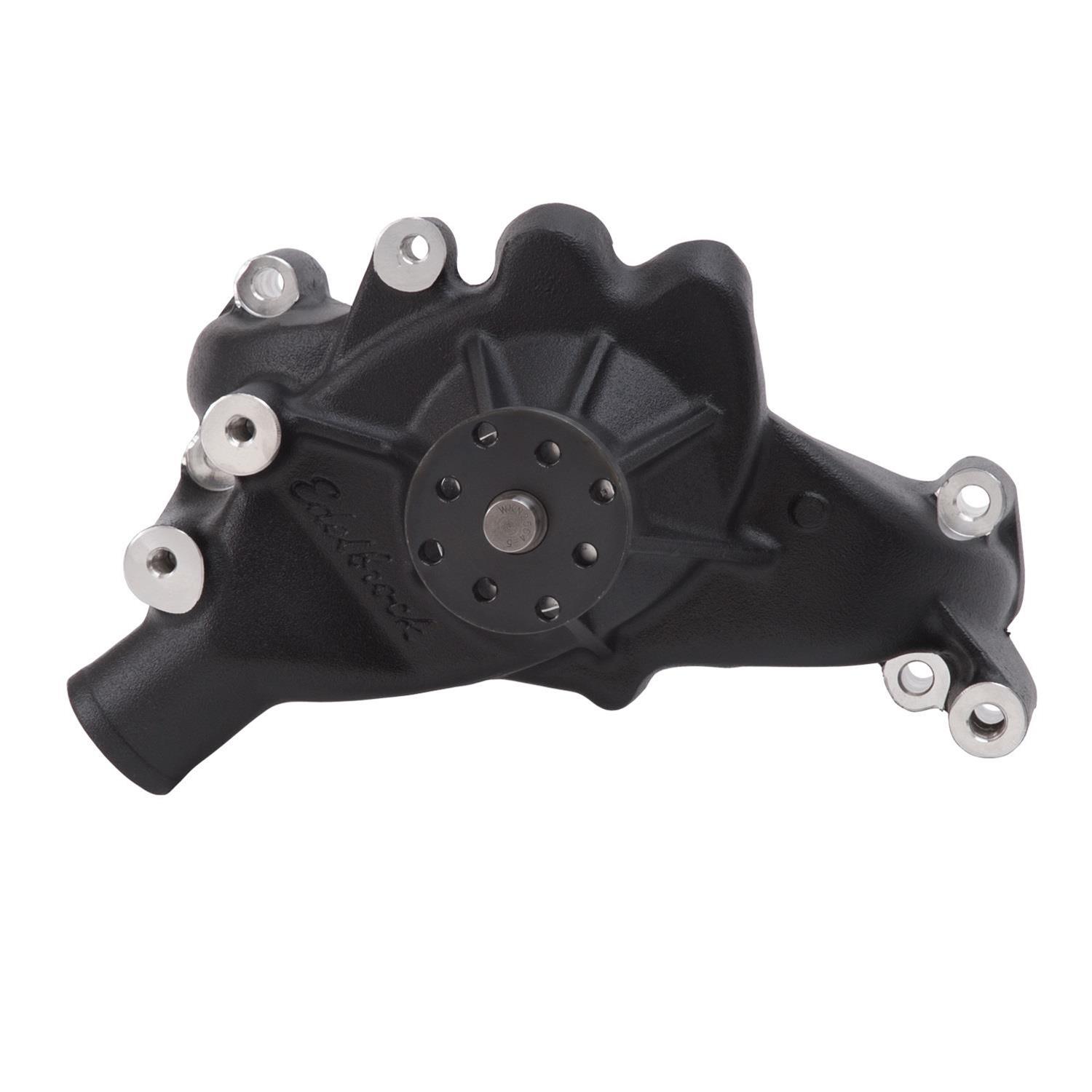

Edelbrock Water Pump High Performance Chevrolet 1969-87 396-502 CI V8

SKU: EDE88513

Mechanical Water Pumps

EDE Water Pump...

Edelbrock

Edelbrock Water Pump High Performance Chevrolet 1969-87 396-502 CI V8

SKU: EDE88513

Mechanical Water Pumps

EDE Water Pump...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

Edelbrock #88513 Water Pump big block Chevy long 1969-90 black ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.

Product Overview

Features and Benefits

Only Flows In One Direction For Optimum Efficiency

Product Details

Casting Number:	8851
Description:	Victor Series Water Pump
Engine Make/Size:	Chevy Big Block (396-454)
Fan Clutch Included:	No
Finish:	As Cast
Housing Material:	Aluminum
Hub Height:	7.500
Hub Hole Quantity:	6
Impeller Material:	Powdered Metal
Impeller Rotation:	Standard
Impeller Vane Quantity:	6
Includes Back Housing:	Yes
Installation Warnings:	Yes
Mounting Hardware Included:	Yes
Mounting Hole Quantity:	4
Outlet Quantity:	1
Part Number:	ede88513
Pulley Included:	No
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Related Cooling Fan Components:	No
Style:	Street/High-Performance
Thermostat And Housing Included:	No
Type:	Mechanical
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes
Water Pump Drive Type:	V-Belt

Application Summary

Chevrolet:Big-Block:396 (6.5L)-502 (8.2L)

Part Type

Engine Water Pump

Data: v4.2 - Upd: 2026-10-14 02:07:08

Features

Equal coolant distribution to both sides of the block within 1% for better cooling efficiency
Heavy-duty seal used for leak-proof operation and long life
Heavy-duty, 0.75" internal ball/roller bearing used to withstand higher torsional loads at high rpm
Only Flows In One Direction For Optimum Efficiency

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 88513
Product Attributes - Part Type: Mechanical Water Pumps
Product Attributes - Product Line: Edelbrock Victor Series Mechanical Water Pumps with PermaStar
Product Attributes - UPC: 085347885138
Product Attributes - Pump Flow: High-volume
Product Attributes - Water Pump Rotation: Clockwise
Product Attributes - Pilot Diameter (in.): 0.625 in.
Product Attributes - Pump Material: Aluminum
Product Attributes - Pump Color: Black
Product Attributes - Water Pump Style: Long
Product Attributes - Water Pump Inlet Diameter (in.): 1.88
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Gaskets included. Does not fit Corvette models or trucks over 1-ton.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede88513
SFX Item ID	4237485
Supplier Item Code	4237485
Manufacturer SKU	88513
Manufacturer UPC	85347885138
Alternative References	EDB88513, EDL-88513
