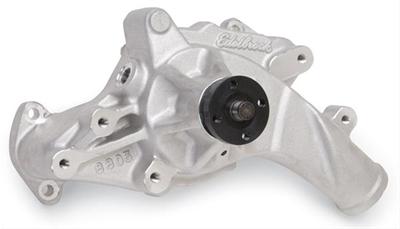

Edelbrock Water Pump High Performance Ford 1965-76 FE V8 Engines Standard Length Satin Finish
Edelbrock Water Pump High Performance Ford 1965-76 FE V8 Engines Standard Length Satin Finish
A$901.32
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
Water Pump Ford FE 352-428 1965-76 Ideal To Prevent Overheating In Street Rods And Street Machines, As Well As In Tow Rigs And Motorhomes. Using State-Of-The-Art Racing Technology, Edelbrock Has Designed These "Super Cooling" Water Pumps To Provide Maximum Flow, Maximum Pressure And Equal Distribution To Both Sides Of The Block Within 1%. Available For Most Popular Applications, These High Performance Pumps Flow In Only One Direction For Optimum Efficiency. The Casting's Computer-Designed Internal Passages And Precision Powdered Metal Impeller Produce The Maximum Flow Rate Possible.
Product Overview
Water Pump Ford FE 352-428 1965-76 Ideal To Prevent Overheating In Street Rods And Street Machines, As Well As In Tow Rigs And Motorhomes. Using State-Of-The-Art Racing Technology, Edelbrock Has Designed These "Super Cooling" Water Pumps To Provide Maximum Flow, Maximum Pressure And Equal Distribution To Both Sides Of The Block Within 1%. Available For Most Popular Applications, These High Performance Pumps Flow In Only One Direction For Optimum Efficiency. The Casting's Computer-Designed Internal Passages And Precision Powdered Metal Impeller Produce The Maximum Flow Rate Possible.
Features and Benefits
- Only Flows In One Direction For Optimum Efficiency
Product Details
| Casting Number: | 8805 |
|---|---|
| Description: | Victor Series Water Pump |
| Engine Make/Size: | Ford 332-428 FE |
| Fan Clutch Included: | No |
| Finish: | As Cast |
| Housing Material: | Aluminum |
| Hub Height: | 7.560 |
| Hub Hole Quantity: | 6 |
| Impeller Material: | Powdered Metal |
| Impeller Rotation: | Standard |
| Impeller Vane Quantity: | 6 |
| Includes Back Housing: | Yes |
| Installation Warnings: | Yes |
| Mounting Hardware Included: | No |
| Mounting Hole Quantity: | 4 |
| Outlet Quantity: | 1 |
| Part Number: | ede8805 |
| Pulley Included: | No |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Related Cooling Fan Components: | No |
| Style: | Street/High-Performance |
| Thermostat And Housing Included: | No |
| Type: | Mechanical |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
| Water Pump Drive Type: | V-Belt |
Application Summary
Ford:FE:352 (5.8L)-428 (7.0L)
Part Type
Engine Water Pump
Features
- Equal coolant distribution to both sides of the block within 1% for better cooling efficiency
- Heavy-duty seal used for leak-proof operation and long life
- Heavy-duty, 0.75" internal ball/roller bearing used to withstand higher torsional loads at high rpm
- Only Flows In One Direction For Optimum Efficiency
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 8805
- Product Attributes - Part Type
- Water Pumps, Mechanical
- Product Attributes - Product Line
- Edelbrock Victor Series High Performance Street Mechanical Water Pumps
- Product Attributes - UPC
- 085347088058
- Product Attributes - Pump Flow
- High-volume
- Product Attributes - Water Pump Rotation
- Clockwise
- Product Attributes - Pilot Diameter (in.)
- 0.625 in.
- Product Attributes - Pump Material
- Aluminum
- Product Attributes - Pump Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes

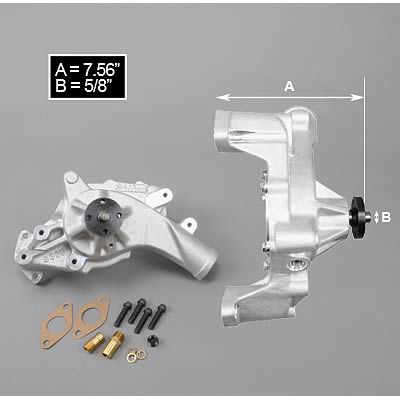

- Gaskets included. Designed for 1965-76 applications with 7.56 in. hub height. 5/8 in. pilot shaft.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede8805 |
| SFX Item ID | 4237446 |
| Supplier Item Code | 4237446 |
| Manufacturer SKU | 8805 |
| Manufacturer UPC | 85347088058 |
| Alternative References | EDB8805, EDL-8805 |
Brochures
Compatibility
Ford:FE:352 (5.8L)-428 (7.0L)
