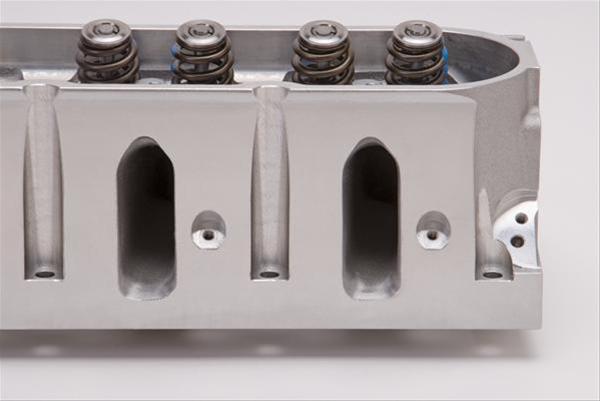

Edelbrock Cylinder Head E-Cnc 212 GM Gen IIi Ls Complete
Edelbrock Cylinder Head E-Cnc 212 GM Gen IIi Ls Complete
A$3,823.52
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The Edelbrock 79949 E-CNC Small Block Chevy GEN 3 & 4 LS cylinder head are designed for 1997 & later GEN 3 & 4 LS1/LS2 Chevy engines including 4.8L, 5.3L, 5.7L & 6.0L. The E-CNC Cylinder Head feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow. Dyno tests proved this head is capable of 457 hp & 438 ft-lbs. of torque. High-quality conical beehive springs are secured with steel retainers and valve locks for performance up to .600" valve lift. Match with any one of Edelbrock's LS series intake manifolds and camshafts for a dyno-proven performance combination. Rocker bolt kit #8597 includes 8 rocker bolts that are shorter than stock to prevent the bolts from protruding into the intake ports. E-CNC 215 head is 50-state street legal.
Product Overview
The Edelbrock 79949 E-CNC Small Block Chevy GEN 3 & 4 LS cylinder head are designed for 1997 & later GEN 3 & 4 LS1/LS2 Chevy engines including 4.8L, 5.3L, 5.7L & 6.0L. The E-CNC Cylinder Head feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow. Dyno tests proved this head is capable of 457 hp & 438 ft-lbs. of torque. High-quality conical beehive springs are secured with steel retainers and valve locks for performance up to .600" valve lift. Match with any one of Edelbrock's LS series intake manifolds and camshafts for a dyno-proven performance combination. Rocker bolt kit #8597 includes 8 rocker bolts that are shorter than stock to prevent the bolts from protruding into the intake ports. E-CNC 215 head is 50-state street legal.
Features and Benefits
- For High Performance Street/Light Duty Racing
Product Details
| 9040: | D-215-70 |
|---|---|
| CNC Ported: | Yes |
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 65 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | E-CNC 215 Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Chevy Small Block LS1 |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 76 |
| Exhaust Valve Diameter: | 1.57 |
| Family: | E-CNC |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Horsepower: | 400-500 |
| Intake Runner Volume: | 215 |
| Intake Valve Diameter: | 2.02 |
| Material: | Aluminum |
| Part Number: | ede79949 |
| Preparation: | Bolt On (Not Required) |
| Push Rod Diameter: | (Suggested) 0.3125 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | E-CNC |
| Type: | Complete |
| Usage: | Competition |
| Valve Angle: | 15 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.30 |
| Valve Spring Maximum Lift: | 0.680 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.314961 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen III LS1:346 (5.7L);Chevrolet:Small-Block Gen III LS2:364 (6.0L);Chevrolet:Small-Block Gen IV LS2:364 (6.0L)
Part Type
Engine Cylinder Head
Features
- For High Performance Street/Light Duty Racing
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 79949
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock E-CNC 215 Cylinder Heads
- Product Attributes - UPC
- 085347799497
- Product Attributes - Combustion Chamber Volume (cc)
- 65
- Product Attributes - Intake Runner Volume (cc)
- 212cc
- Product Attributes - Exhaust Runner Volume (cc)
- 76cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic roller
- Product Attributes - Intake Port Shape
- Cathedral
- Product Attributes - Intake Valve Diameter (in.)
- 2.020 in.
- Product Attributes - CNC-Machined Combustion Chamber
- Yes
- Product Attributes - CNC-Machined Intake Runner
- Yes
- Product Attributes - CNC-Machined Exhaust Runner
- Yes
- Product Attributes - Combustion Chamber Style
- Heart
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Round
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Angle
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.570 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.600 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.550 in./1.300 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 15
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese steel
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - CARB EO Number(s)
- D-215-70
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede79949 |
| SFX Item ID | 4235978 |
| Supplier Item Code | 4235978 |
| Manufacturer SKU | 79949 |
| Manufacturer UPC | 85347799497 |
| Alternative References | 5/16in., EDB79949, EDL-79949 |
Brochures
Compatibility
Chevrolet:Small-Block Gen III LS1:346 (5.7L);Chevrolet:Small-Block Gen III LS2:364 (6.0L);Chevrolet:Small-Block Gen IV LS2:364 (6.0L)
