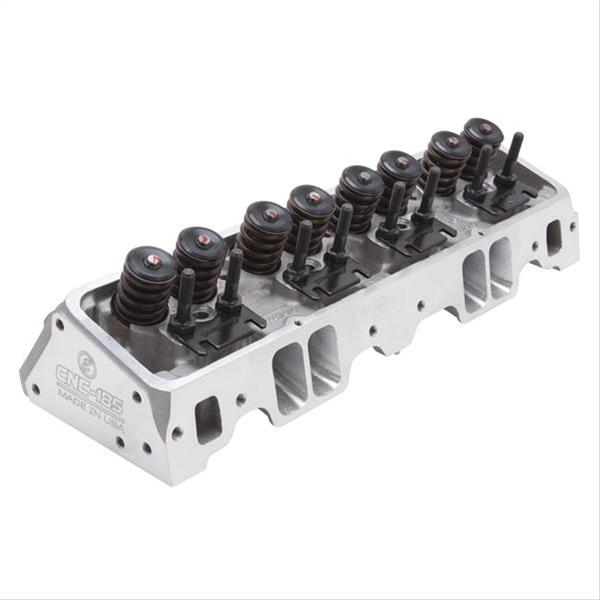

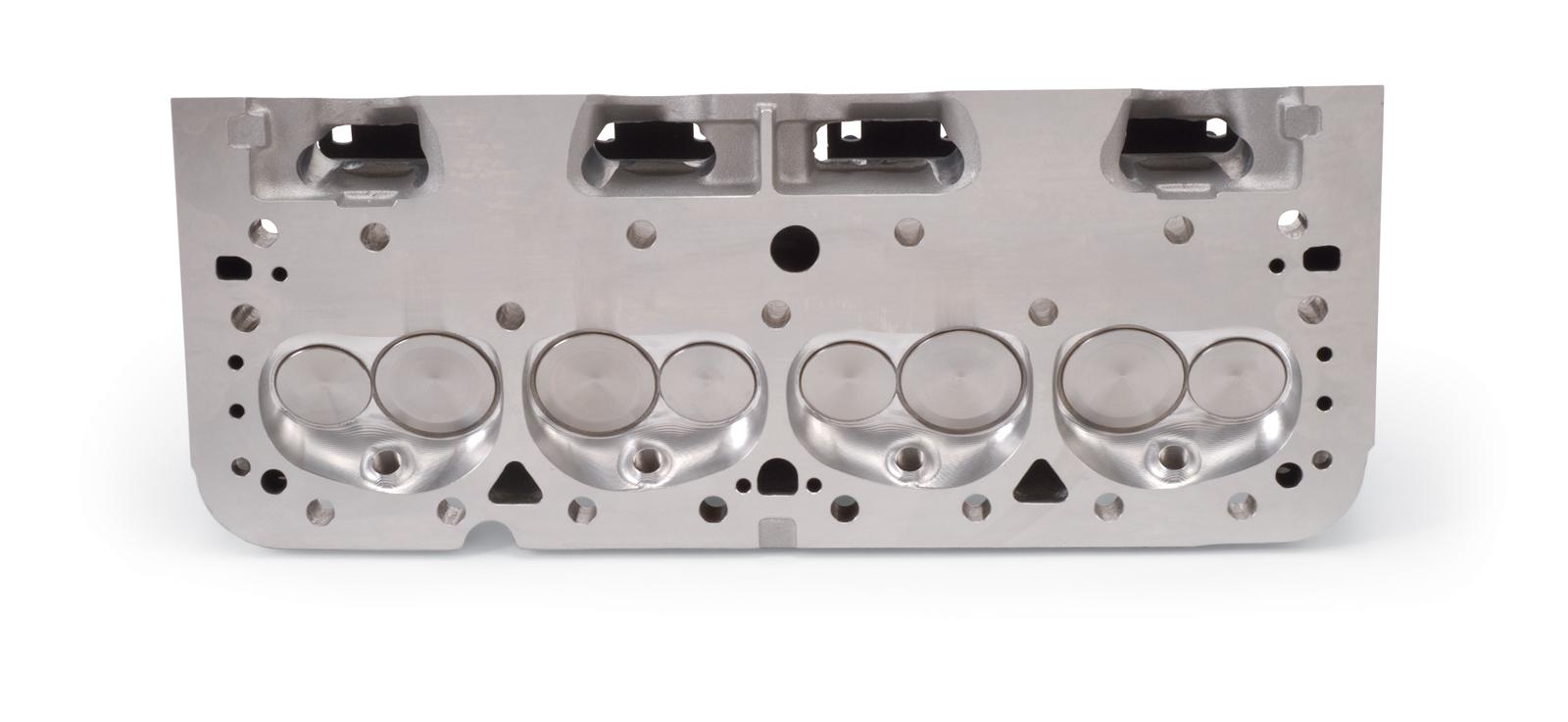

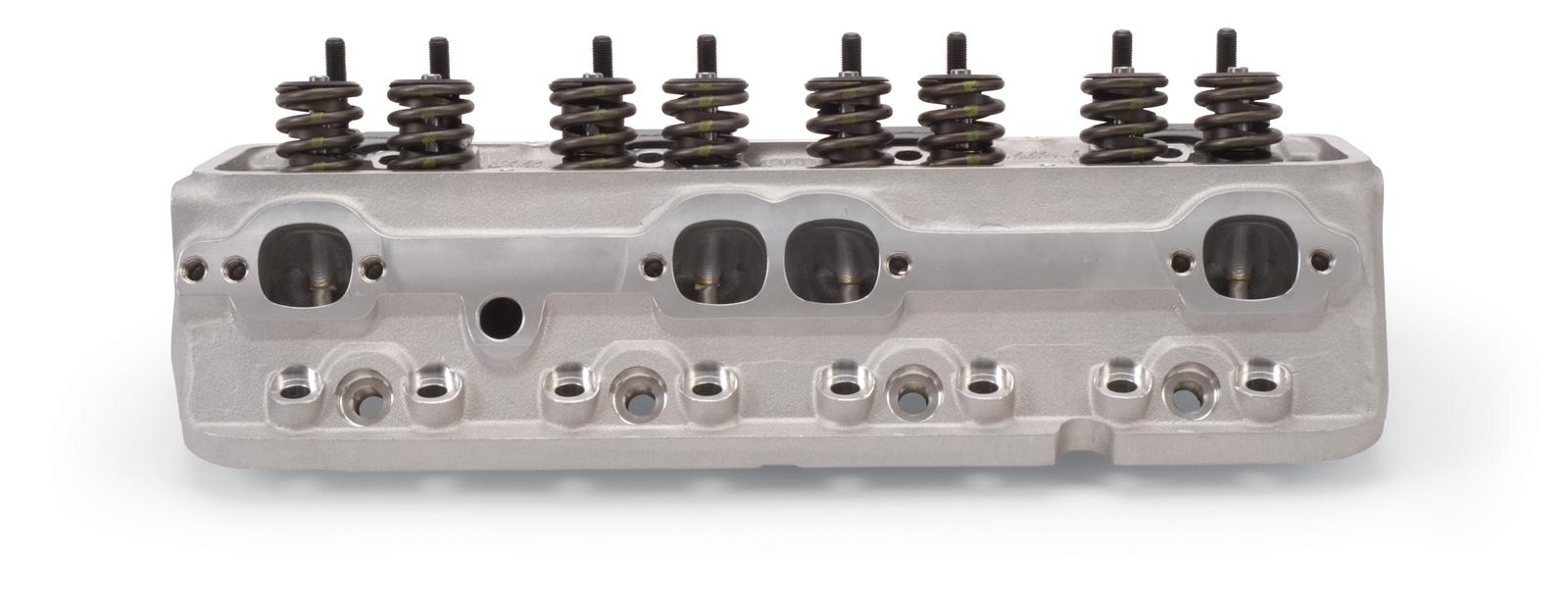

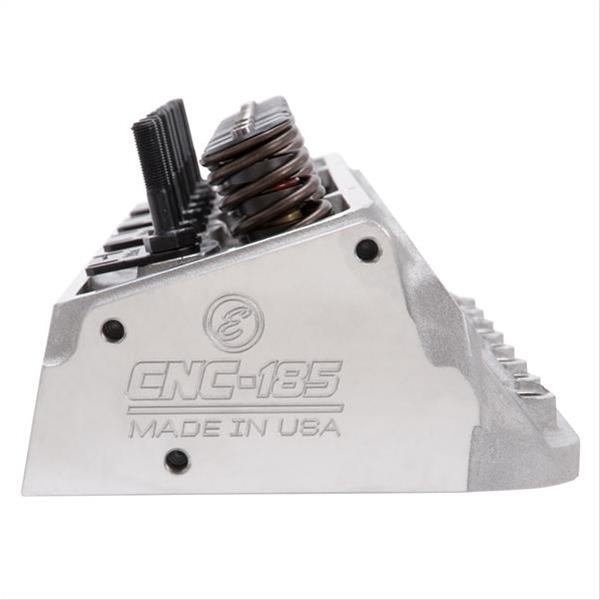

Edelbrock Cylinder Head SBC E-Cnc 185 64cc Straight Plug for Hydraulic Roller Cam Complete
Edelbrock Cylinder Head SBC E-Cnc 185 64cc Straight Plug for Hydraulic Roller Cam Complete
A$2,857.71
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The Edelbrock part #79895 Small Block Chevy E-CNC cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift.E-CNC S/B CHEVY FEATURES:- Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance- Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds- Delivers up to 30-60 horsepower over the Performer RPM Cylinder Head- #61205 & #61209 features 7/16" studs and angled spark plugs- Ideal for high Performance's street and racing applications
Product Overview
The Edelbrock part #79895 Small Block Chevy E-CNC cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over the Performer RPM Cylinder Head - #61205 & #61209 features 7/16" studs and angled spark plugs - Ideal for high Performance's street and racing applications
Features and Benefits
- Made In U.S.A.
Product Details
| CNC Ported: | No |
|---|---|
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 64 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.5625 |
| Description: | E-CNC 185 Cylinder Head |
| EGR Port: | No |
| Emission: | N/A |
| Engine Make/Size: | Chevy Small Block (262-400) |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 75 |
| Exhaust Valve Diameter: | 1.60 |
| Family: | E-CNC |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Head Casting Number: | N/A |
| Horsepower: | 400-500 |
| Intake Runner Volume: | 185 |
| Intake Valve Diameter: | 2.02 |
| Material: | Aluminum |
| Part Number: | ede79895 |
| Preparation: | Bolt On (Not Required) |
| Push Rod Diameter: | (Suggested) 0.3125 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.375 |
| Rotor Center Bore Inside Diameter: | Straight |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | E-CNC |
| Type: | Complete |
| Usage: | Competition |
| Valve Angle: | 23 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.46 |
| Valve Spring Maximum Lift: | 0.575 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3410 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L)
Part Type
Engine Cylinder Head
Features
- Made In U.S.A.
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 79895
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock E-CNC 185 Cylinder Heads
- Product Attributes - UPC
- 085347798957
- Product Attributes - Combustion Chamber Volume (cc)
- 64
- Product Attributes - Intake Runner Volume (cc)
- 185cc
- Product Attributes - Exhaust Runner Volume (cc)
- 75cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic roller
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 2.020 in.
- Product Attributes - CNC-Machined Combustion Chamber
- Yes
- Product Attributes - CNC-Machined Intake Runner
- Yes
- Product Attributes - CNC-Machined Exhaust Runner
- Yes
- Product Attributes - Combustion Chamber Style
- Kidney
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Round
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Straight
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.600 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.575 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.460 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arm Nut Thread Size
- 3/8 in.-24
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 5/16 in.
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 23
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Powdered metal
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede79895 |
| SFX Item ID | 4235967 |
| Supplier Item Code | 4235967 |
| Manufacturer SKU | 79895 |
| Manufacturer UPC | 85347798957 |
| Alternative References | t-6;, a356;, v8;, EDB79895, EDL-79895, 64cc |
Brochures
Compatibility
Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L)
