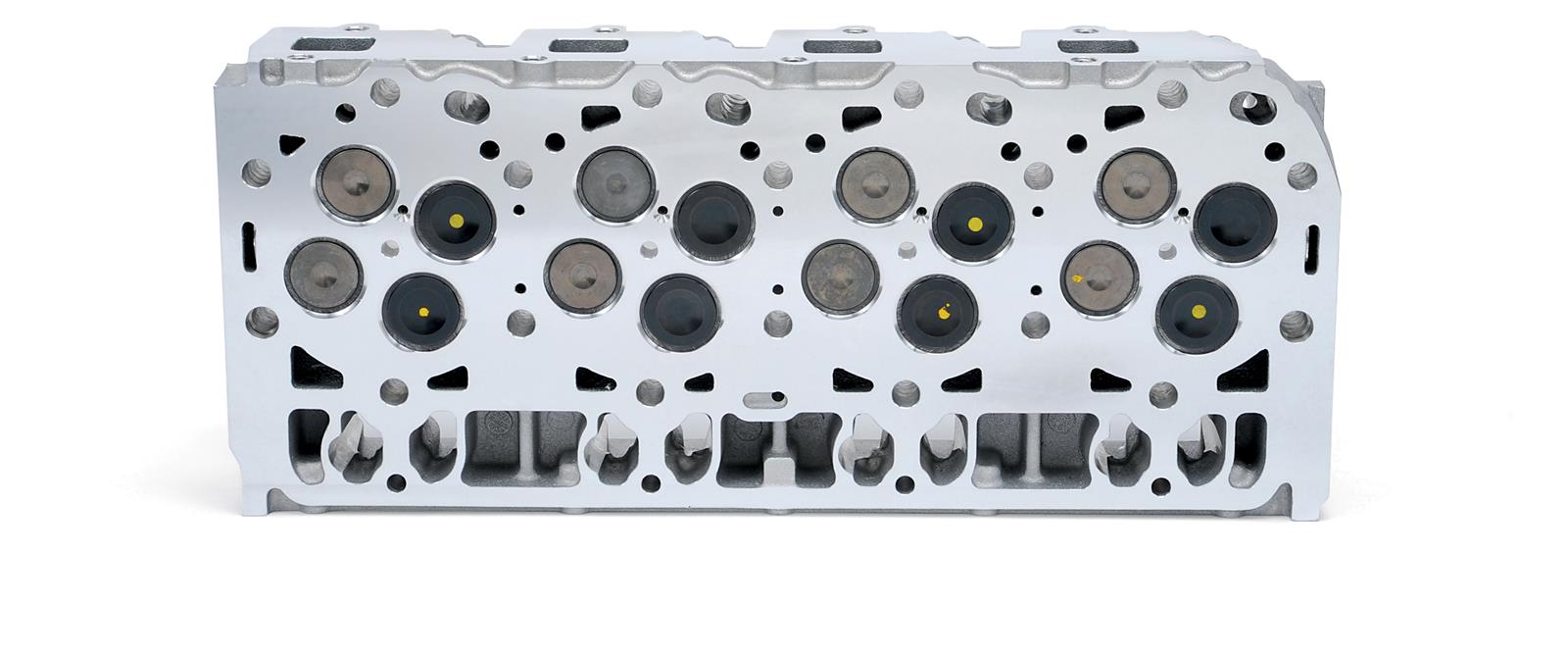

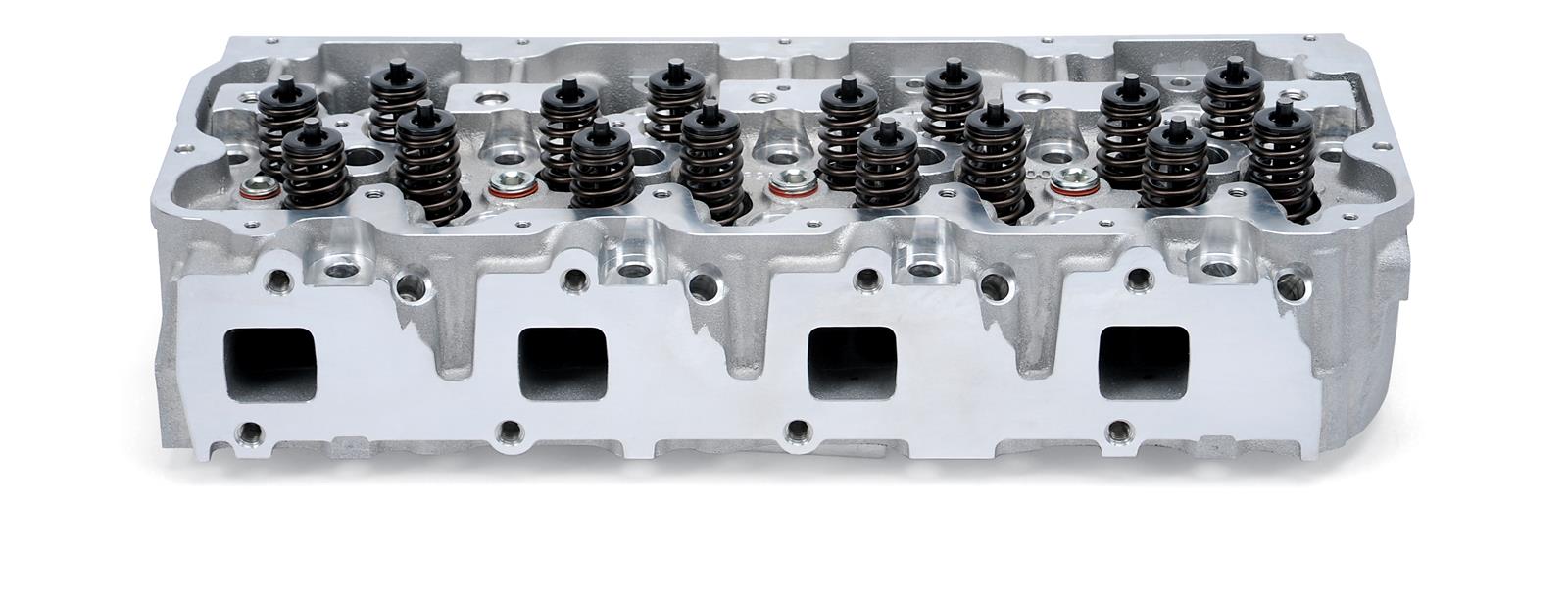

Edelbrock Cylinder Head 11-16 Chevy LML Duramax Diesel V8 6.6L Single Complete
Edelbrock Cylinder Head 11-16 Chevy LML Duramax Diesel V8 6.6L Single Complete
A$4,201.71
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
New Edelbrock Cylinder Head for GM 6.6L Duramax Diesel Engines. Edelbrock proudly introduces its first-ever high-performance cylinder head developed especially for the diesel engine market! The all-new Edelbrock Diesel Cylinder Head #79119 for 2011-2016 (LML) GM 6.6L Duramax V8 engines is a direct bolt-on replacement for any street or off-road application where higher levels of performance and durability are desired. This aluminum head comes complete and ready to run straight out of the box and are designed to fit all variations of the Duramax engine that was offered in the popular Silverado and Sierra pickup truck as well as Chevrolet and GMC 2500/3500 HD trucks between 2001 and 2016. Edelbrock's new Diesel Cylinder Head is compatible with all stock Duramax valvetrain components as well as valve covers, water crossover, injectors and plugs. Each A356 aluminum cylinder head casting is heat- and pressure-treated to reduce porosity while also increasing both strength and fatigue properties. Intake and exhaust runners are designed to optimize flow and swirl, but engine builders and head porters will also appreciate the extra deck and port wall material for custom porting and deck strength. Best of all, the new Edelbrock Diesel Head is CARB legal, making them the perfect choice for a street performance upgrade to your Chevy or GMC Duramax Diesel engine. Order Edelbrock part number 79119 for 2011-2016 LML Duramax V8 engines.
Product Overview
Edelbrock s first cylinder head for the diesel engine market is a direct bolt-on replacement for all 2001-2016 6.6L Duramax Diesel V8 engines that provides a significant advantage in performance and durability for street and off-road applications. But why are Edelbrock s new heads better for your Duramax-powered Chevy/GMC truck? Unlike cylinder heads for a gasoline engine; a direct-injected diesel like GM s 6.6L Duramax relies on the motion of air coming into the cylinder to make power. This motion is referred to as swirl; and our engineers not only managed to develop a head that yields greater volumetric efficiency than the factory Duramax head; but we did so with a swirl ratio similar to that of the factory to ensure a complete and clean burn to meet the stringent diesel emissions requirements. The result is a 50-state emissions-legal cylinder head for the 6.6L Duramax that lets you turn up the turbo boost because it is no longer the restriction in the system. Our new Diesel Cylinder Head for the 6.6L Duramax is cast from heat-and pressure-treated A356 aluminum to reduce porosity while also increasing both strength and fatigue properties. Intake and exhaust runners are designed to optimize flow and swirl; but engine builders and head porters will appreciate the extra deck and port wall material for custom porting and deck strength. Edelbrock Diesel Heads are ready to run right out of the box; making them the perfect choice for a street performance upgrade. Our heads are designed; manufactured and assembled in the USA to fit all variations of the Duramax engine that were offered in Silverado and Sierra pickups manufactured between 2001 and 2016. Order Edelbrock part number 79119 for 2011-2016 LML Duramax applications. MSRP: $1;944 •50-state CARB emissions legal (E.O. #D-215-102) •Castings are treated to Hot Isostatic Press (HIP) process for strength •Heat-treated to T7 for the extreme diesel operating environment •Compatible with factory Duramax
Features and Benefits
- Made In The U.S.A.
Product Details
| 9040: | D-215-102 |
|---|---|
| CNC Ported: | No |
| Camshaft Type: | Hydraulic Roller |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.629921 |
| Description: | Cylinder Head Chevy 2011-2015 LML Duramax Diesel V8 6.6L Single Complete |
| EGR Port: | No |
| Emission: | 50 State Legal |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 117 |
| Exhaust Valve Diameter: | 31 |
| Family: | Duramax |
| Finish: | Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Horsepower: | 400+ |
| Intake Runner Volume: | 230 |
| Intake Valve Diameter: | 33 |
| Material: | Aluminum |
| Part Number: | ede79119 |
| Preparation: | Bolt On (Not Required) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Duramax |
| Specialty: | Hot Isostatic Pressing (HIP) Processing and Heat-Treated To T7 Specification |
| Type: | Bare |
| Usage: | Street/Performance |
| Valve Angle: | 0 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 27 |
| Valve Spring Maximum Lift: | 0.600 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.275591 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Duramax (LML):403 (6.6L)
Part Type
Engine Cylinder Head
Features
- Made In The U.S.A.
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 79119
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Duramax Diesel Cylinder Heads
- Product Attributes - UPC
- 085347791194
- Product Attributes - Intake Runner Volume (cc)
- 230cc
- Product Attributes - Exhaust Runner Volume (cc)
- 117cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic roller
- Product Attributes - Intake Port Shape
- Square
- Product Attributes - Intake Valve Diameter (in.)
- 1.299 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Square
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.220 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.600 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.063 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Shimming of rocker arms on shaft for proper alignment to valve bridge recommended. These heads have a thicker deck and taller seats than stock or other aftermarket heads.
- Product Attributes - CARB EO Number(s)
- D-215-102
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede79119 |
| SFX Item ID | 4237570 |
| Supplier Item Code | 4237570 |
| Manufacturer SKU | 79119 |
| Manufacturer UPC | 85347791194 |
| Alternative References | usa;t-6;, a356;, v8;, EDB79119, EDL-79119, 6.6L |
Brochures
Compatibility
Chevrolet:Duramax (LML):403 (6.6L)
