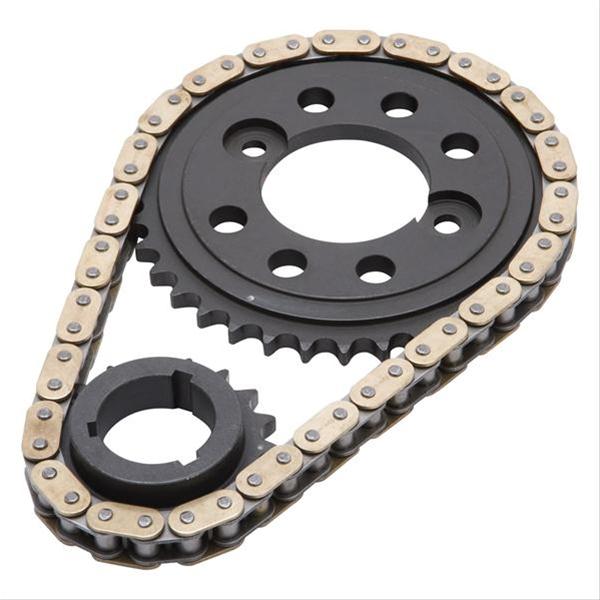

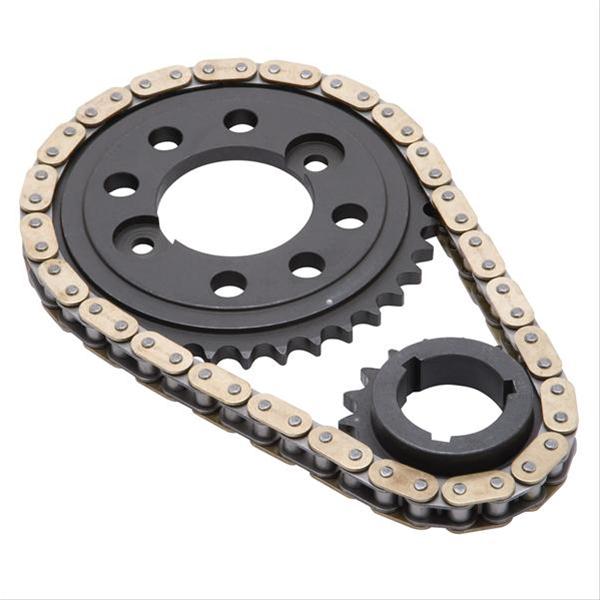

Edelbrock Timing Chain And Gear Set Buick 455

SKU: EDE7840

Timing Chain and Gear Sets

EDE Timing Chain...

Edelbrock

Edelbrock Timing Chain And Gear Set Buick 455

SKU: EDE7840

Timing Chain and Gear Sets

EDE Timing Chain...

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Edelbrock part #7840 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Product Overview

Edelbrock part #7840 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break

Features and Benefits

True Bearing Surface Rolls with the Sprockets

Product Details

Description:	Performer-Link Timing Chain Set
Engine Make/Size:	Buick 400-455
Keyway Adjustable:	Yes
Maximum Advance At Camshaft:	4
Maximum Retard At Camshaft:	4
Part Number:	ede7840
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Timing Chain Type:	Double Roller
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Buick:Big-Block:400 (6.6L)/430 (7.0L)/455 (7.5L)

Part Type

Engine Timing Set

Data: v4.2 - Upd: 2026-10-16 22:07:03

Features

True Bearing Surface Rolls with the Sprockets

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 7840
Product Attributes - Part Type: Timing Chain and Gear Sets
Product Attributes - Product Line: Edelbrock Performer-Link True Roller Timing Chain Sets
Product Attributes - UPC: 085347078400
Product Attributes - Timing Chain Included: Yes
Product Attributes - Timing Chain Style: Single roller
Product Attributes - Camshaft Gear Attachment: 2-bolt
Product Attributes - Maximum Advance/Retard at Camshaft: 2 degree
Product Attributes - Maximum Advance/Retard at Crankshaft: 4 degree
Product Attributes - Cam Gear Included: Yes
Product Attributes - Cam Gear Material: Iron
Product Attributes - Crank Gear Included: Yes
Product Attributes - Crank Gear Material: Billet steel
Product Attributes - VVT Gear Included: No
Product Attributes - Tensioner Included: No
Product Attributes - Thrust Bearing Included: No
Product Attributes - Bolts/Studs Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Offset Bushings Included: No
Product Attributes - Quantity: Sold as a set.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede7840
SFX Item ID	4237089
Supplier Item Code	4237089
Manufacturer SKU	7840
Manufacturer UPC	85347078400
Alternative References	EDB7840, EDL-7840
