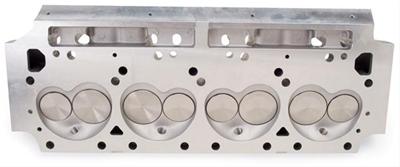

Edelbrock Cylinder Head Chrysler Victor Max Wedge for B/Rb Big Chrysler Engines Single Bare Casting
Edelbrock Cylinder Head Chrysler Victor Max Wedge for B/Rb Big Chrysler Engines Single Bare Casting
A$2,691.27
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
use recommended springs to match your camshaft - Exhaust flange is extended .300" from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts - Max Wedge intake ports are machined to match intake manifolds for B and RB competition big-block Chryslers - 72cc combustion chamber volume - Cylinder head part #77949 comes bare with valves only
Product Overview
The Edelbrock part #77949 Big Block Chrysler Max Wedge Victor Series cylinder head is used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is a competition ready cylinder head that features a cylinder head which is compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder head features raised runners, revised chambers and relocated valves for all-out competition.VICTOR B/B CHRYSLER MAX WEDGE FEATURES:- The best standard port location cylinder head available for competition big-block Chryslers- Intake ports are raised .650", exhaust ports are raised .250" for improved flow- The intake flange is extended .950" to eliminate the need for intake spacer plates- Cylinder head will fit Edelbrock Victor manifolds for both high and low deck engines- Sold without springs or retainers; use recommended springs to match your camshaft- Exhaust flange is extended .300" from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts- Max Wedge intake ports are machined to match intake manifolds for B and RB competition big-block Chryslers- 72cc combustion chamber volume- Cylinder head part #77949 comes bare with valves only
Features and Benefits
- Head Includes Valves
Product Details
| CNC Ported: | No |
|---|---|
| Combustion Chamber Volume: | 72 |
| Construction Type: | Bare With Valves |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | Victor Series Max Wedge Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Mopar 383-440 |
| Exhaust Port Location: | +.250 |
| Exhaust Runner Volume: | 100 |
| Exhaust Valve Diameter: | 1.81 |
| Family: | Victor |
| Finish: | Satin |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Intake Runner Volume: | 290 |
| Intake Valve Diameter: | 2.20 |
| Material: | Aluminum |
| Part Number: | ede77949 |
| Preparation: | Requires Professional Preparation (Bare) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | No |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Victor |
| Type: | Valves Only |
| Usage: | Racing |
| Valve Angle: | 15 |
| Valve Included: | Yes |
| Valve Springs Included: | No |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L);Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L)
Part Type
Engine Cylinder Head
Features
- Head Includes Valves
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 77949
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Victor Max Wedge Big Block Chrysler Cylinder Heads
- Product Attributes - UPC
- 085347779499
- Product Attributes - Combustion Chamber Volume (cc)
- 75
- Product Attributes - Intake Runner Volume (cc)
- 290cc
- Product Attributes - Exhaust Runner Volume (cc)
- 100cc
- Product Attributes - Cylinder Head Style
- Bare
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 2.200 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Port Location
- Raised
- Product Attributes - Exhaust Port Shape
- Rectangular
- Product Attributes - Exhaust Port Location
- Raised
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.810 in.
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 15
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through head
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede77949 |
| SFX Item ID | 4237312 |
| Supplier Item Code | 4237312 |
| Manufacturer SKU | 77949 |
| Manufacturer UPC | 85347779499 |
| Alternative References | EDB77949, EDL-77949 |
Brochures
Compatibility
Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L);Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L)
