Edelbrock Cylinder Head Glidden-Victor II Ford 351W Hipped Bare

SKU: EDE773169

Cylinder Heads

EDE Victor Cylinder Head...

Edelbrock

Edelbrock Cylinder Head Glidden-Victor II Ford 351W Hipped Bare

SKU: EDE773169

Cylinder Heads

EDE Victor Cylinder Head...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

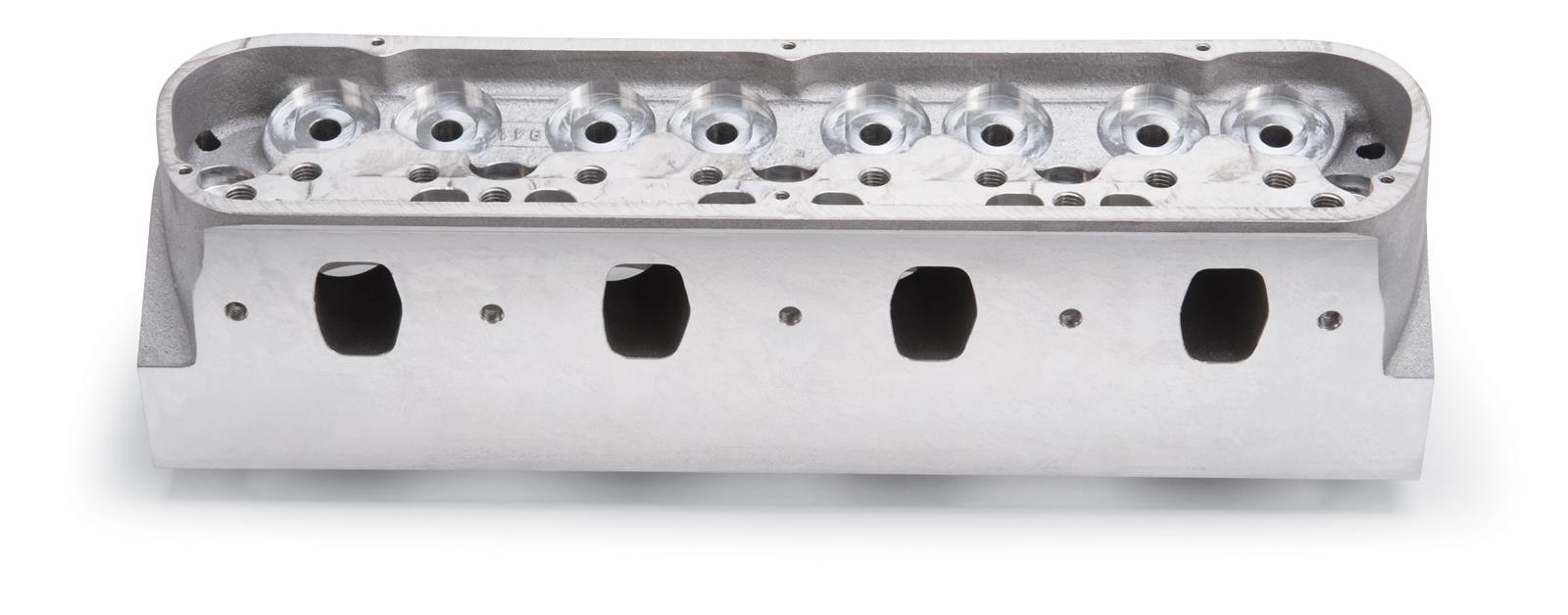

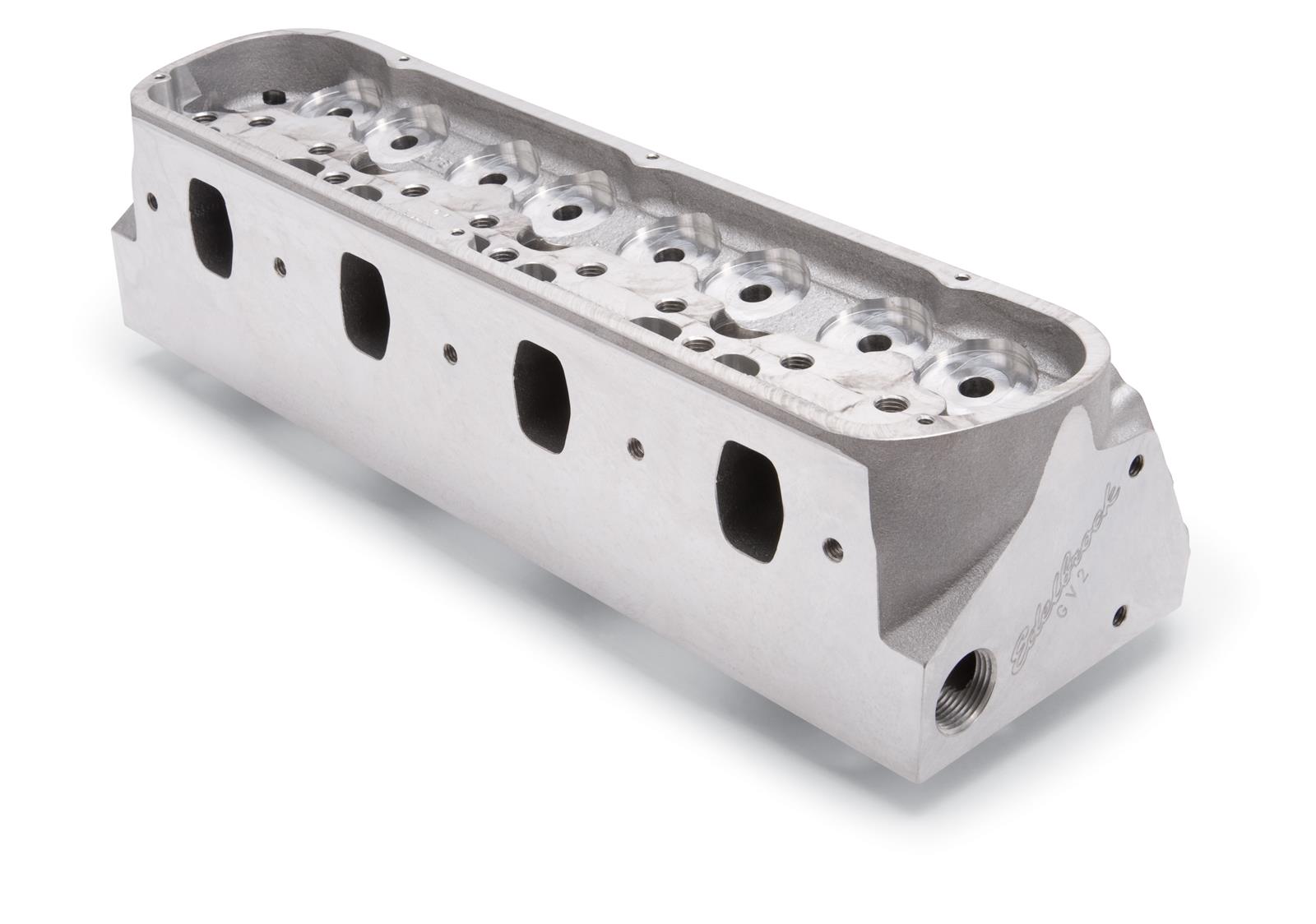

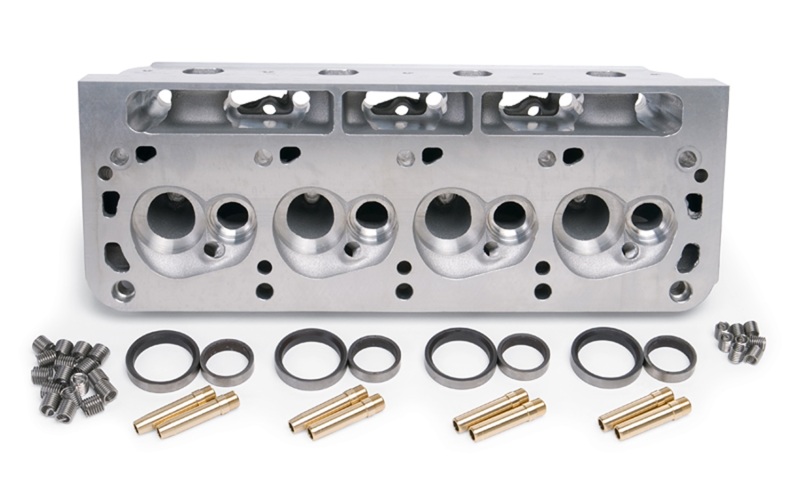

The Edelbrock 773169 Small Block Ford Glidden-Victor II Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included- Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Product Overview

The Edelbrock 773169 Small Block Ford Glidden-Victor II Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Features and Benefits

Designed to Work w/Ford D-3 Cylinder Heads

Product Details

CNC Ported:	No
Combustion Chamber Volume:	Possible 24
Construction Type:	Pro-Port Raw
Cylinder Head Type:	Standard
Deck Thickness:	0.625
Description:	Glidden Victor II Series Pro-Port™ Raw Cylinder Head
EGR Port:	No
Emission:	Non-Emissions
Engine Make/Size:	Ford Small Block
Exhaust Port Entry:	1.66 in x 1.43
Exhaust Valve Diameter:	(Suggested) 1.64
Exhaust Valve Pierce Points (X,Y)(C):	1.170 in, 0.0
Family:	Victor
Finish:	Cast Aluminum
Grade Type:	Performance
Guide Material:	Manganese Bronze
Guide Plates Included:	No
Head Casting Number:	N/A
Intake Port Entry:	1.34 in x 1.77
Intake Valve Diameter:	(Suggested) 2.24
Intake Valve Pierce Points (X,Y)(C):	-0.760 in, 0.0
Material:	Aluminum
Part Number:	ede773169
Preparation:	Requires Professional Preparation (Bare)
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Retainer Included:	No
Seat Angle:	Exhaust 45 deg/Intake 45
Seat Material:	Ductile Iron
Series:	Pro-Port
Specialty:	Hot Isostatic Pressing (HIP) Processing
Type:	Bare
Usage:	Racing
Valve Angle:	11.3
Valve Guides Included:	Yes
Valve Included:	No
Valve Seats Included:	Yes
Valve Spacing:	1.930
Valve Springs Included:	No
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Ford:Small-Block:289 (4.7L)-351W (5.8L)

Part Type

Engine Cylinder Head

Data: v4.2 - Upd: 2026-10-13 23:11:33

Features

Designed to Work w/Ford D-3 Cylinder Heads

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 773169
Product Attributes - Part Type: Cylinder Heads
Product Attributes - Product Line: Edelbrock Glidden Victor II Pro Port Raw Cylinder Heads
Product Attributes - UPC: 085347994373
Product Attributes - Combustion Chamber Volume (cc): 24
Product Attributes - Cylinder Head Style: Bare
Product Attributes - Cylinder Head Material: Cast aluminum
Product Attributes - Intake Valve Diameter (in.): 2.240 in.
Product Attributes - CNC-Machined Combustion Chamber: No
Product Attributes - CNC-Machined Intake Runner: No
Product Attributes - CNC-Machined Exhaust Runner: No
Product Attributes - Intake Valves Included: No
Product Attributes - Exhaust Valves Included: No
Product Attributes - Exhaust Valve Diameter (in.): 1.640 in.
Product Attributes - Valve Springs Included: No
Product Attributes - Damper Spring Included: No
Product Attributes - Retainers Included: No
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Rocker Arm Studs Included: No
Product Attributes - Rocker Arms Included: No
Product Attributes - Rocker Arm Nuts Included: No
Product Attributes - Guideplates Included: No
Product Attributes - Valve Cover Mounting Style: Perimeter bolt
Product Attributes - Accessory Bolt Holes Drilled: Yes
Product Attributes - Intake Valve Angle: 11.3
Product Attributes - Valve Guides Included: Yes
Product Attributes - Valve Guide Material: Manganese bronze
Product Attributes - Valve Seats Machined: No
Product Attributes - Valve Seat Material: Ductile iron
Product Attributes - Cylinder Head Color: Natural
Product Attributes - Steam Holes Drilled: No
Product Attributes - Oiling Style: Through pushrod
Product Attributes - Machined for O-Ring: No
Product Attributes - Heat Crossover: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Heads are Hot Isostatic Pressing or HIP processed for optimum strength. Seats and manganese-bronze valve guides are included, yet not installed. These heads can not be used without professional head preparation.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede773169
SFX Item ID	4237320
Supplier Item Code	4237320
Manufacturer SKU	773169
Manufacturer UPC	85347994373
Alternative References	v8;, EDB773169, EDL-773169, 351W
