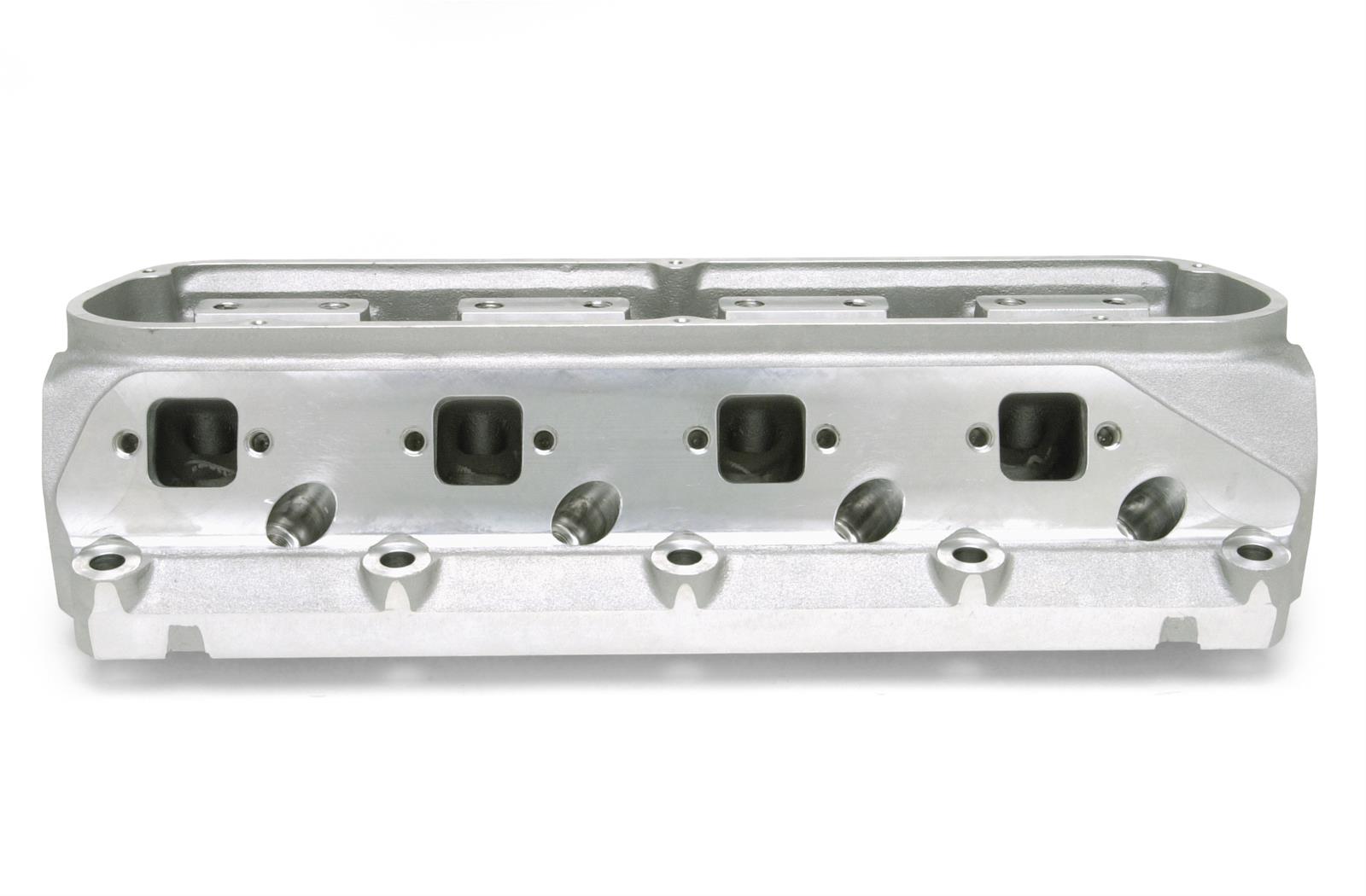

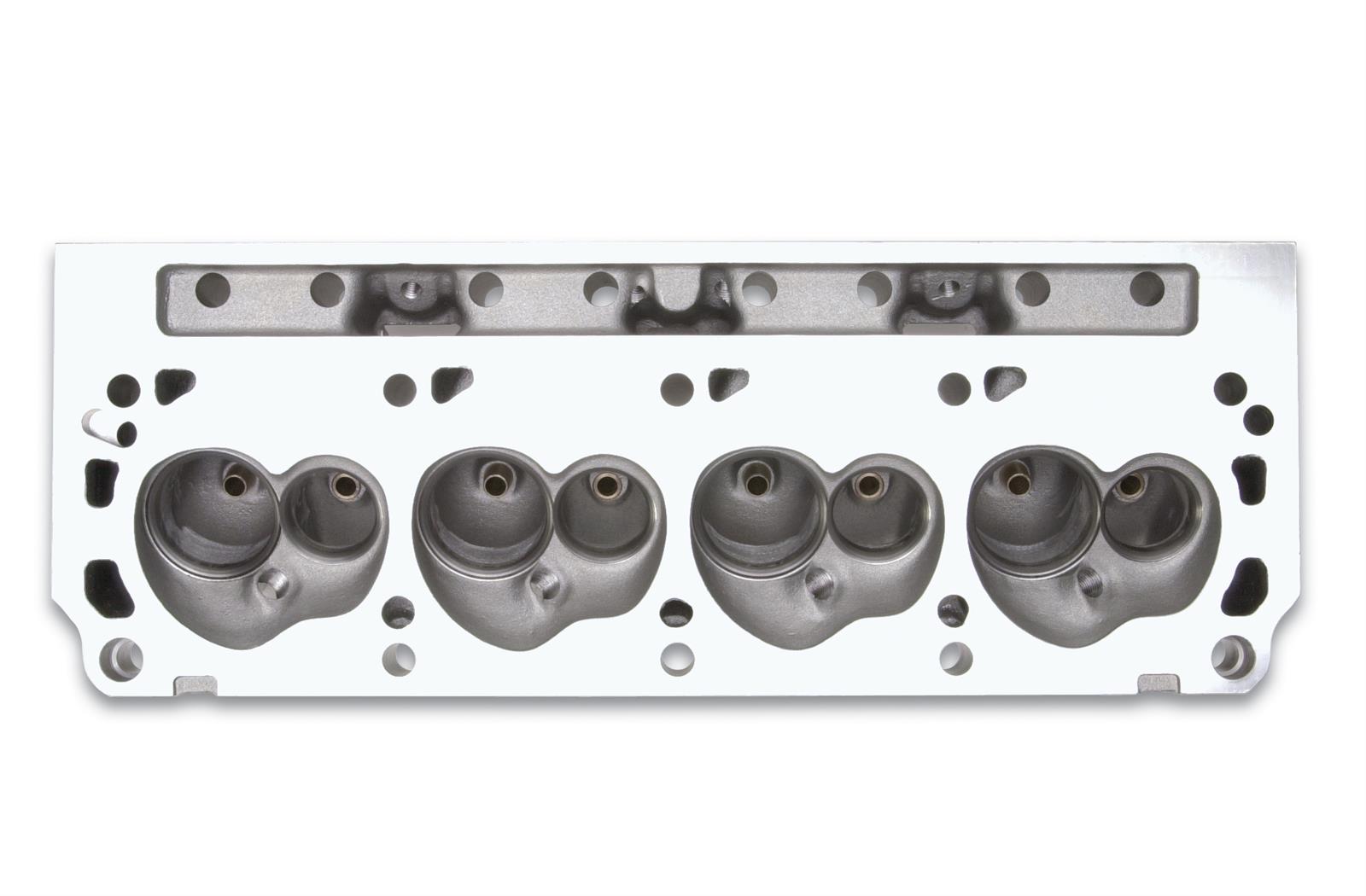

Edelbrock Single Victor Jr 289-351W Bare Head

SKU: EDE77169

Cylinder Heads

EDE Victor Cylinder Head...

Edelbrock

Edelbrock Single Victor Jr 289-351W Bare Head

SKU: EDE77169

Cylinder Heads

EDE Victor Cylinder Head...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

The Edelbrock 77169 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience.VICTOR JR. 20deg - 210cc FEATURES:500+ horsepower potential out-of-the-box using stock valve train geometryHigh-flowing 210cc intake ports and .130" raised 75cc exhaust portsAvailable with 60cc or 70cc combustion chambers70cc combustion chambers are ideal for turbocharged and supercharged applicationsCNC gasket-matched port entries/exits with blended valve bowlsSpark plug holes and valves are in the stock locationValve cover rail raised .150"A relief in the head allows most roller lifters to be changed without removing the head

Product Overview

The Edelbrock 77169 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head

Features and Benefits

Spark Plugs/Valves In The Stock Location

Product Details

CNC Ported:	No
Combustion Chamber Volume:	60
Construction Type:	Bare
Cylinder Head Type:	Standard
Deck Thickness:	0.625
Description:	Victor Jr. Series Cylinder Head
EGR Port:	No
Emission:	Non-Emissions
Engine Make/Size:	Ford 260-302
Exhaust Port Location:	+.125
Exhaust Runner Volume:	75
Family:	Victor Jr.
Finish:	Cast Aluminum
Grade Type:	Performance
Guide Material:	Manganese Bronze
Guide Plates Included:	Yes
Head Casting Number:	N/A
Intake Runner Volume:	210
Material:	Aluminum
Part Number:	ede77169
Preparation:	Requires Professional Preparation (Bare)
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Retainer Included:	No
Seat Angle:	Exhaust 45 deg/Intake 45
Seat Material:	Ductile Iron
Series:	Victor Jr.
Type:	Bare
Usage:	Racing
Valve Included:	No
Valve Springs Included:	No
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Ford:Small-Block:289 (4.7L)-351W (5.8L)

Part Type

Engine Cylinder Head

Data: v4.2 - Upd: 2026-10-13 23:11:33

Features

Spark Plugs/Valves In The Stock Location

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 77169
Product Attributes - Part Type: Cylinder Heads
Product Attributes - Product Line: Edelbrock Victor Jr. Cylinder Heads
Product Attributes - UPC: 085347771691
Product Attributes - Combustion Chamber Volume (cc): 60
Product Attributes - Intake Runner Volume (cc): 210cc
Product Attributes - Exhaust Runner Volume (cc): 75cc
Product Attributes - Cylinder Head Style: Bare
Product Attributes - Cylinder Head Material: Cast aluminum
Product Attributes - Intake Port Shape: Rectangular
Product Attributes - Intake Valve Diameter (in.): 2.050 in.
Product Attributes - CNC-Machined Combustion Chamber: No
Product Attributes - CNC-Machined Intake Runner: No
Product Attributes - CNC-Machined Exhaust Runner: No
Product Attributes - Intake Port Location: Standard
Product Attributes - Exhaust Port Shape: Square
Product Attributes - Exhaust Port Location: Raised
Product Attributes - Intake Valves Included: No
Product Attributes - Exhaust Valves Included: No
Product Attributes - Exhaust Valve Diameter (in.): 1.600 in.
Product Attributes - Valve Springs Included: No
Product Attributes - Damper Spring Included: No
Product Attributes - Retainers Included: No
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Rocker Arm Studs Included: No
Product Attributes - Rocker Arms Included: No
Product Attributes - Rocker Arm Nuts Included: No
Product Attributes - Guideplates Included: Yes
Product Attributes - Guideplate Pushrod Size: 5/16 in.
Product Attributes - Valve Cover Mounting Style: Perimeter bolt
Product Attributes - Accessory Bolt Holes Drilled: Yes
Product Attributes - Intake Valve Angle: 20
Product Attributes - Valve Guides Included: Yes
Product Attributes - Valve Guide Material: Manganese bronze
Product Attributes - Valve Seats Machined: No
Product Attributes - Valve Seat Material: Ductile iron
Product Attributes - Cylinder Head Color: Natural
Product Attributes - Steam Holes Drilled: No
Product Attributes - Oiling Style: Through pushrod
Product Attributes - Machined for O-Ring: No
Product Attributes - Heat Crossover: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Exhaust port raised 0.130 in., valve cover rail raised 0.150 in.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede77169
SFX Item ID	4237329
Supplier Item Code	4237329
Manufacturer SKU	77169
Manufacturer UPC	85347771691
Alternative References	a356;, v8;, EDB77169, EDL-77169, 289-351W
