Edelbrock Cylinder Head Performer RPM Chevy Gen V LT1/LT4
Edelbrock Cylinder Head Performer RPM Chevy Gen V LT1/LT4
A$3,862.11
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

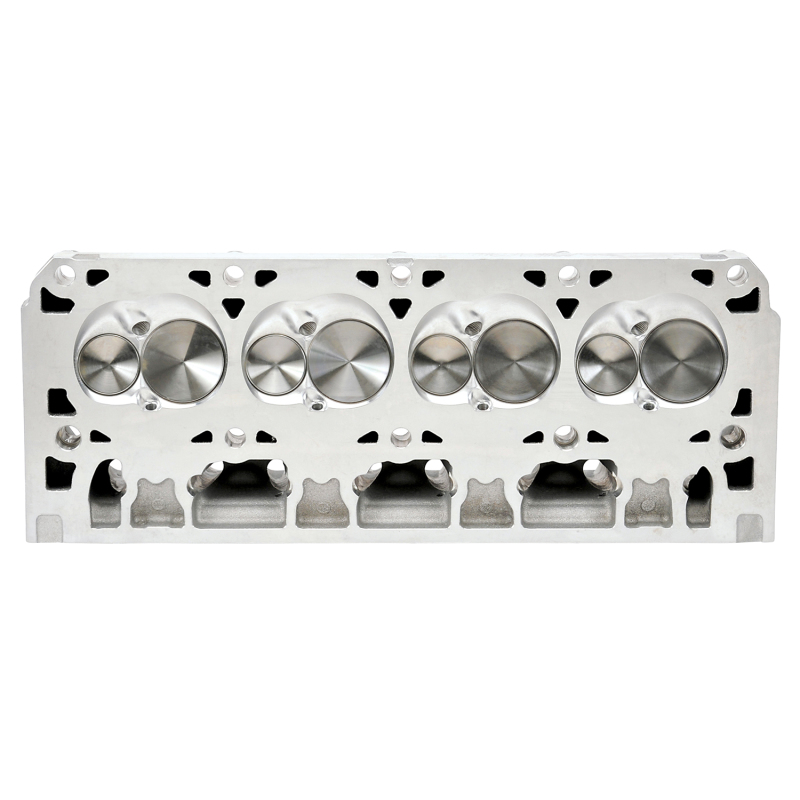

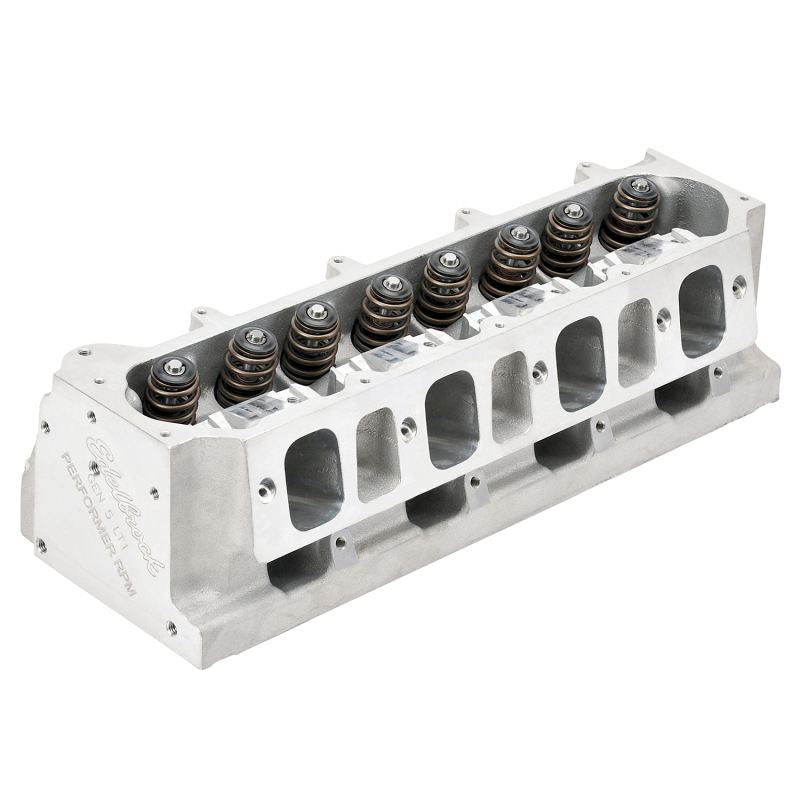

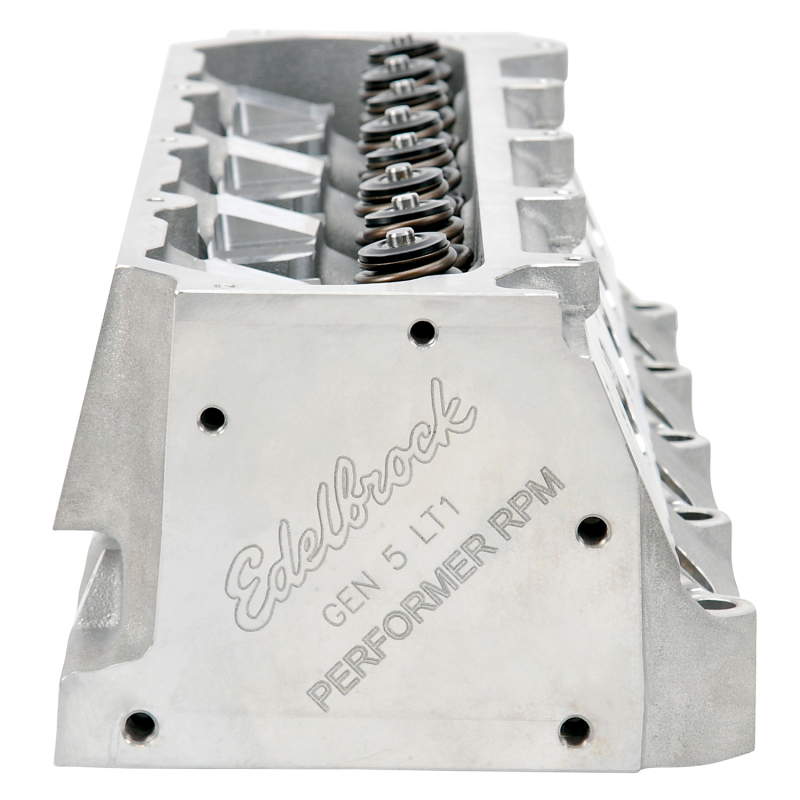

The Edelbrock part #77119 LT1 (Gen V) Performance RPM cylinder head is ideal for street engines and are engineered to be a great high-performance upgrade for stock GM Gen V LT1 engines. It has been designed with a thicker deck and more material in the intake, exhaust and port walls for improved strength and durability. This cylinder head features CNC machined chambers as well as CNC blended valve seats, intake and exhaust ports for consistency. They have been designed with high flow intake, exhaust ports and back cut intake valves for improved air flow. The valve position has also been revised to accommodate interlocking valve seat rings and larger valves. The Performer RPM retains the stock rocker arm, intake/exhaust ports and spark plug location for use with factory components. Like all the other cylinder head, this has been designed, tested and cast from 356 aluminum and heat treated to T-6 specs in our facilities in Southern California to guarantee you get the best from a name you can trust.- Combustion chamber volume: 58cc- Intake runner volume: 305cc- Exhaust runner volume: 115cc- Intake valve diameter: 2.165"- Exhaust valve diameter: 1.600"
Product Overview
The Edelbrock part #77119 LT1 (Gen V) Performance RPM cylinder head is ideal for street engines and are engineered to be a great high-performance upgrade for stock GM Gen V LT1 engines. It has been designed with a thicker deck and more material in the intake, exhaust and port walls for improved strength and durability. This cylinder head features CNC machined chambers as well as CNC blended valve seats, intake and exhaust ports for consistency. They have been designed with high flow intake, exhaust ports and back cut intake valves for improved air flow. The valve position has also been revised to accommodate interlocking valve seat rings and larger valves. The Performer RPM retains the stock rocker arm, intake/exhaust ports and spark plug location for use with factory components. Like all the other cylinder head, this has been designed, tested and cast from 356 aluminum and heat treated to T-6 specs in our facilities in Southern California to guarantee you get the best from a name you can trust. - Combustion chamber volume: 58cc - Intake runner volume: 305cc - Exhaust runner volume: 115cc - Intake valve diameter: 2.165" - Exhaust valve diameter: 1.600"
Features and Benefits
- Extra Thick 3/4 in. Deck For Improved Stability
Product Details
| CNC Ported: | Yes |
|---|---|
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 61 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.7500 |
| Description: | Performer Series RPM Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Chevy LT1 |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 115 |
| Exhaust Valve Diameter: | 1.60 |
| Family: | Performer RPM |
| Finish: | Cast |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Horsepower: | 600+ |
| Intake Runner Volume: | 305 |
| Intake Valve Diameter: | 2.165 |
| Material: | Aluminum |
| Part Number: | ede77119 |
| Preparation: | Bolt On (Not Required) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Performer RPM |
| Type: | Complete |
| Usage: | Street/Hi-Performance |
| Valve Angle: | Exhaust 11.8 X 1 deg/Intake 12 x 4 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.32 |
| Valve Spring Maximum Lift: | 0.650 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.314961 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen V LT1:376 (6.2L)
Part Type
Engine Cylinder Head
Features
- Extra Thick 3/4 in. Deck For Improved Stability
Specifications
- CNC Ported:
- Yes
- Camshaft Type:
- Hydraulic Roller
- Combustion Chamber Volume:
- 61
- Construction Type:
- Complete
- Cylinder Head Type:
- Standard
- Deck Thickness:
- 0.7500
- Description:
- Performer Series RPM Cylinder Head
- EGR Port:
- No
- Emission:
- Non-Emissions
- Engine Make/Size:
- Chevy LT1
- Exhaust Port Location:
- Standard
- Exhaust Runner Volume:
- 115
- Exhaust Valve Diameter:
- 1.60
- Family:
- Performer RPM
- Finish:
- Cast
- Grade Type:
- Performance
- Guide Material:
- Manganese Bronze
- Guide Plates Included:
- No
- Head Casting Number:
- N/A
- Horsepower:
- 600+
- Intake Runner Volume:
- 305
- Intake Valve Diameter:
- 2.165
- Material:
- Aluminum
- Part Number:
- ede77119
- Preparation:
- Bolt On (Not Required)
- Quantity:
- Sold Individually
- RGL:
- WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
- Retainer Included:
- Yes
- Seat Angle:
- Exhaust 45 deg/Intake 45
- Seat Material:
- Ductile Iron
- Series:
- Performer RPM
- Type:
- Complete
- Usage:
- Street/Hi-Performance
- Valve Angle:
- Exhaust 11.8 X 1 deg/Intake 12 x 4
- Valve Included:
- Yes
- Valve Spring Diameter:
- 1.32
- Valve Spring Maximum Lift:
- 0.650
- Valve Springs Included:
- Yes
- Valve Stem Diameter:
- 0.314961
- WARNING CA Proposition 65 Message:
- WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
- WARNING CA Proposition 65:
- Yes
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede77119 |
| SFX Item ID | 4237510 |
| Supplier Item Code | 4237510 |
| Manufacturer SKU | 77119 |
| Manufacturer UPC | 85347771196 |
| Alternative References | v8;, EDB77119, LT1/LT4 |
Brochures
Compatibility
Chevrolet:Small-Block Gen V LT1:376 (6.2L)
