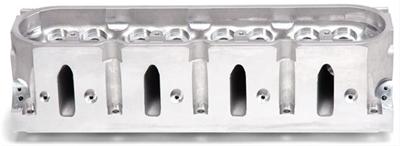

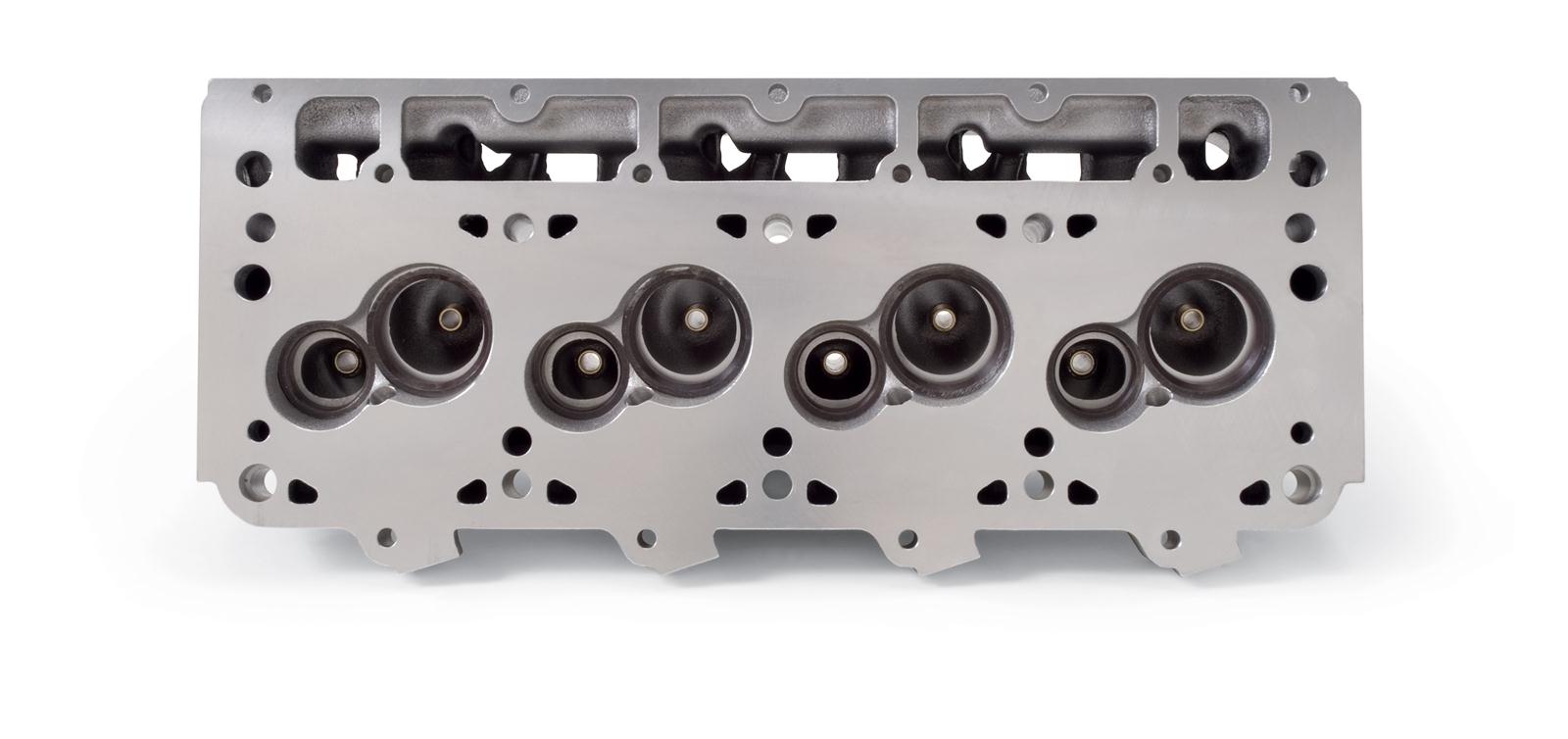

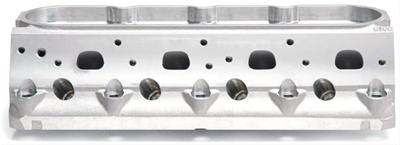

Edelbrock Cylinder Head Pro Port Victor Lsr Gen 3-4 (Ls Series) HipPed

SKU: EDE770469

Cylinder Heads

EDE Victor Cylinder Head...

Edelbrock

Edelbrock Cylinder Head Pro Port Victor Lsr Gen 3-4 (Ls Series) HipPed

SKU: EDE770469

Cylinder Heads

EDE Victor Cylinder Head...

Limited Availability from MFR Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.

We accept

Description

The Edelbrock 770469 Small Block Chevy LSR Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included- Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Product Overview

The Edelbrock 770469 Small Block Chevy LSR Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Features and Benefits

Requires Professional Preparation

Product Details

CNC Ported:	No
Combustion Chamber Volume:	Possible 25
Construction Type:	Pro-Port Raw
Cylinder Head Type:	Standard
Deck Thickness:	0.8000
Description:	Pro-Port™ Raw Cylinder Head
EGR Port:	No
Emission:	Non-Emissions
Engine Make/Size:	Chevy Small Block LS1
Exhaust Port Entry:	1.55 in x 1.30
Exhaust Valve Diameter:	(Suggested) 1.68
Exhaust Valve Pierce Points (X,Y)(C):	-1.178 in, -0.238
Family:	Victor
Finish:	Cast Aluminum
Grade Type:	Performance
Guide Material:	Manganese Bronze
Guide Plates Included:	No
Head Casting Number:	N/A
Intake Port Entry:	1.32 in x 1.97
Intake Valve Diameter:	(Suggested) 2.25
Intake Valve Pierce Points (X,Y)(C):	0.652 in, 0.448
Material:	Aluminum
Part Number:	ede770469
Preparation:	Requires Professional Preparation (Bare)
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Retainer Included:	No
Series:	Pro-Port
Specialty:	Hot Isostatic Pressing (HIP) Processing
Type:	Bare
Usage:	Racing
Valve Angle:	Exhaust 7.0 x 2.0 deg/Intake 8.7 x 3.2
Valve Guides Included:	Yes
Valve Included:	No
Valve Seats Included:	No
Valve Springs Included:	No
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Gen III LS-R Race:-;Chevrolet:Gen IV LS-R Race:-

Part Type

Engine Cylinder Head

Data: v4.2 - Upd: 2026-10-13 23:11:33

Features

Requires Professional Preparation

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 770469
Product Attributes - Part Type: Cylinder Heads
Product Attributes - Product Line: Edelbrock Victor LS-R Pro-Port Cylinder Heads
Product Attributes - UPC: 085347995219
Product Attributes - Combustion Chamber Volume (cc): 25
Product Attributes - Cylinder Head Style: Bare
Product Attributes - Cylinder Head Material: Cast aluminum
Product Attributes - Intake Valve Diameter (in.): 2.250 in.
Product Attributes - CNC-Machined Combustion Chamber: No
Product Attributes - CNC-Machined Intake Runner: No
Product Attributes - CNC-Machined Exhaust Runner: No
Product Attributes - Intake Port Location: Standard
Product Attributes - Exhaust Port Location: Standard
Product Attributes - Spark Plug Style: Angle
Product Attributes - Intake Valves Included: No
Product Attributes - Exhaust Valves Included: No
Product Attributes - Exhaust Valve Diameter (in.): 1.680 in.
Product Attributes - Valve Springs Included: No
Product Attributes - Damper Spring Included: No
Product Attributes - Retainers Included: No
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Rocker Arm Studs Included: No
Product Attributes - Rocker Arms Included: No
Product Attributes - Rocker Arm Nuts Included: No
Product Attributes - Guideplates Included: No
Product Attributes - Valve Cover Mounting Style: Centerbolt
Product Attributes - Accessory Bolt Holes Drilled: Yes
Product Attributes - Intake Valve Angle: 8.7/3.2
Product Attributes - Valve Guides Included: Yes
Product Attributes - Valve Guide Material: Manganese bronze
Product Attributes - Valve Seats Machined: No
Product Attributes - Cylinder Head Color: Natural
Product Attributes - Steam Holes Drilled: No
Product Attributes - Machined for O-Ring: No
Product Attributes - Heat Crossover: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Heads are Hot Isostatic Pressing or HIP processed for optimum strength. Valve guides included but not installed. Heads will require professional preparation, including CNC porting before use.
