Edelbrock Intake Manifold RPM Air Gap Vn Holden 1988-1998 EFI
Edelbrock Intake Manifold RPM Air Gap Vn Holden 1988-1998 EFI
Sale ends in Calculating...
A$1,508.35 A$2,052.41
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

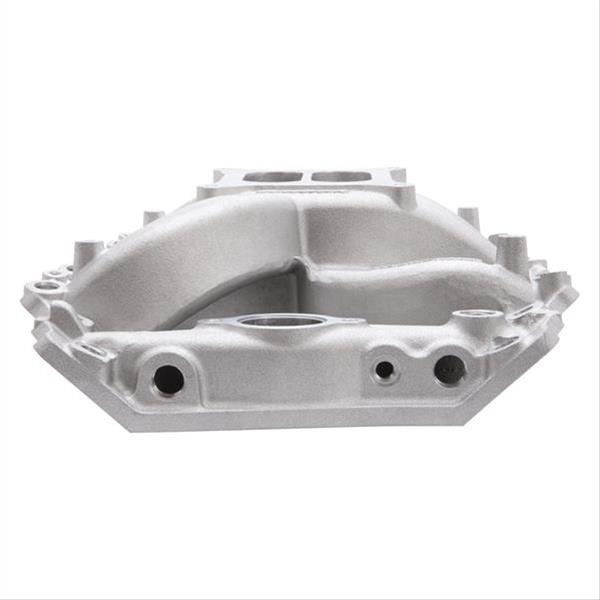

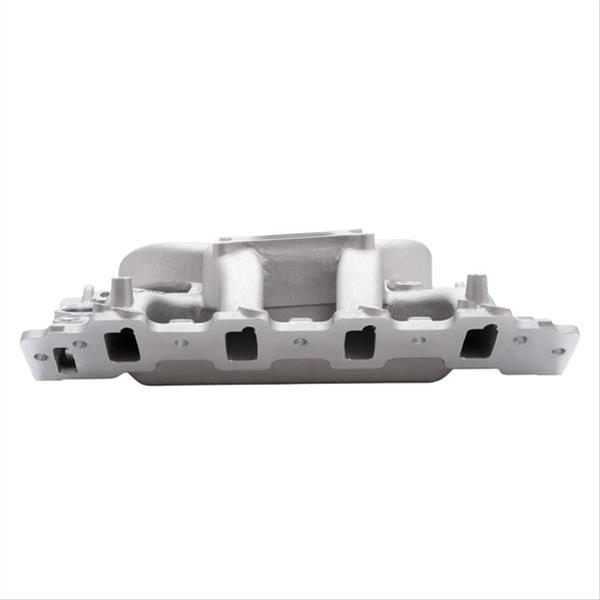

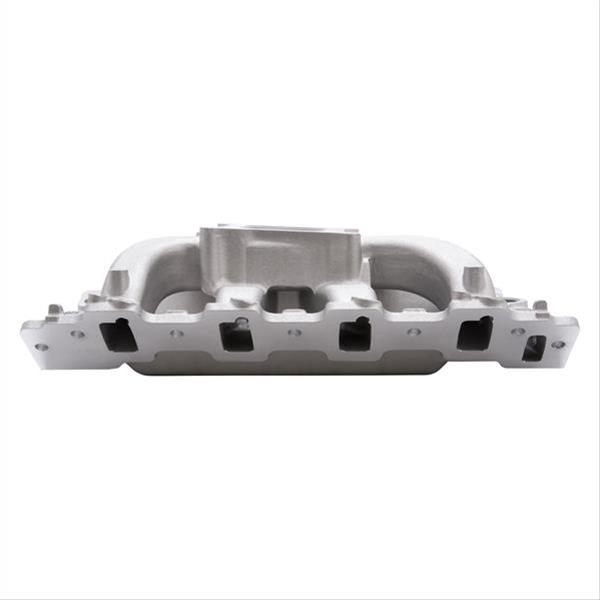

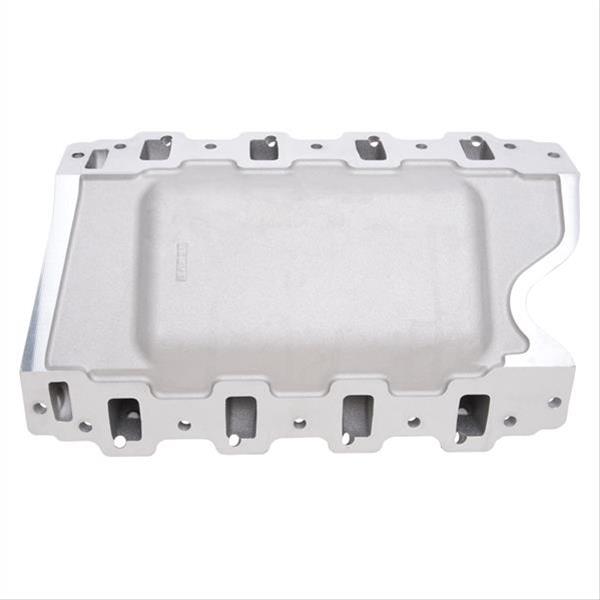

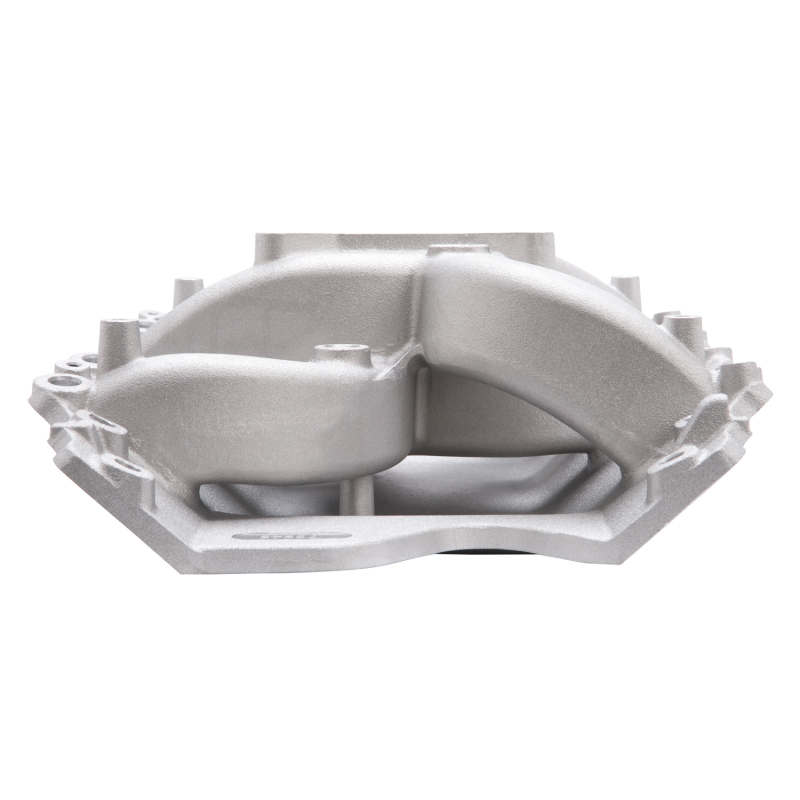

Edelbrock part #75945 RPM Air-Gap EFI intake manifold is designed for street and high performance 308-383 c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm. This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads.
Product Overview
Edelbrock part #75945 RPM Air-Gap EFI intake manifold is designed for street and high performance 308-383 c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm. This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads.
Features and Benefits
- Designed for 1500 to 6500 RPM Performance
Product Details
| Basic Operating RPM Range: | 1500-6500 |
|---|---|
| CNC Ported: | No |
| Center Maximum Height: | 5.310 |
| Cylinder Head Type: | Standard |
| Description: | RPM Air-Gap Intake Manifold |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Universal Engine |
| Finish: | Satin |
| Flange Type: | 4150 |
| Front Maximum Height: | 4.800 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | One |
| Part Number: | ede75945 |
| Position: | Upper |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Rear Maximum Height: | 5.820 |
| Series: | RPM Air-Gap |
| Single Or Dual Plane Type: | Dual |
| Usage: | Street/Hi-Performance |
| Vehicle Model: | Holden |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Holden:-:308 (5.0L)-383 (6.3L)
Part Type
Engine Intake Manifold
Features
- Designed for 1500 to 6500 RPM Performance
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 75945
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Edelbrock Performer RPM Air-Gap Intake Manifolds
- Product Attributes - UPC
- 085347759453
- Product Attributes - Fuel Injection Style
- Direct injection
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- Yes
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- Yes
- Product Attributes - Supplemental Bosses Machined
- Yes
- Product Attributes - Supplemental Boss Quantity
- Eight
- Product Attributes - Runners Included
- Yes
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Natural
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- This manifold has been designed to fit both stock 1988-1998 Holden EFI style heads and the Edelbrock Holden VN RPM cylinder heads.Do not use high performance or competition type intake gaskets for street application Recommended intake gasket: Stock gasket set or equivalent.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede75945 |
| SFX Item ID | 4236928 |
| Supplier Item Code | 4236928 |
| Manufacturer SKU | 75945 |
| Manufacturer UPC | 85347759453 |
| Alternative References | 10-lb;, 15-lb;, EDB75945, EDL-75945 |
Brochures
Compatibility
Holden:-:308 (5.0L)-383 (6.3L)
