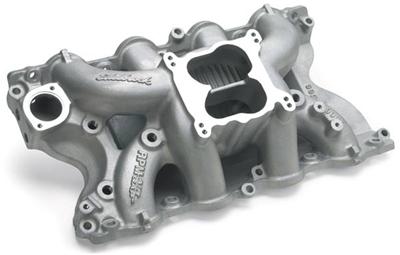

Edelbrock Performer RPM Air-Gap Ford 460 STD Flange/Sprd Bore

SKU: EDE7566

Intake Manifolds, Carbureted

EDE Performer Intake Manifold...

Edelbrock

Edelbrock Performer RPM Air-Gap Ford 460 STD Flange/Sprd Bore

SKU: EDE7566

Intake Manifolds, Carbureted

EDE Performer Intake Manifold...

LOW STOCK! Est Ship 4-7 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Edelbrock part #7566 RPM Air-Gap 460 intake manifold is designed for street and high performance 429/460+ c.i.d. Ford V8's with standard or Cobra Jet heads. The RPM Air-Gap 460 incorporates the same race-winning design that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. It also features a larger cross sectional area (3.3 square inches) than the Performer RPM 460 manifold #7166 intake manifold for even more power in high performance and large displacement engines. The carb mount flange accepts both square-bore and spread-bore carbs for Cobra Jet applications. Will not fit 1988 and later models. Note: Early Cobra Jets came with Quadrajets.

Product Overview

Features and Benefits

Excellent Throttle Response and Mid-Range Power

Product Details

Basic Operating RPM Range:	1500-6500
CNC Ported:	No
Center Maximum Height:	5.480
Cylinder Head Type:	Standard
Description:	Performer RPM Air-Gap 460 Intake Manifold
EGR Port:	No
Emission:	Without EGR
Engine Make/Size:	Ford 429-460
Finish:	Satin
Flange Type:	4150
Front Maximum Height:	4.810
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Number of Carbs:	One
Part Number:	ede7566
Position:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	1500-6500
Rear Maximum Height:	6.150
Series:	RPM Air-Gap
Single Or Dual Plane Type:	Dual
Usage:	Street/Hi-Performance
Vehicle Model:	Ford
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Ford:Big-Block:429 (7.0L )-460 (7.5L)

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-13 23:13:02

Features

Excellent Throttle Response and Mid-Range Power

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 7566
Product Attributes - Part Type: Intake Manifolds, Carbureted
Product Attributes - Product Line: Edelbrock Performer RPM Air-Gap Intake Manifolds
Product Attributes - UPC: 085347075669
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Carburetor Quantity: One
Product Attributes - Intake Style: Dual plane
Product Attributes - Basic Operating RPM Range: 1,500-6,500
Product Attributes - Intake Manifold Height: 5.480 in.
Product Attributes - Intake Color: Natural
Product Attributes - Intake Material: Aluminum
Product Attributes - EGR: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Please see the charts and guides tab for a comparison of square bore vs spread bore.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede7566
SFX Item ID	4236565
Supplier Item Code	4236565
Manufacturer SKU	7566
Manufacturer UPC	85347075669
Alternative References	EDB7566, EDL-7566
