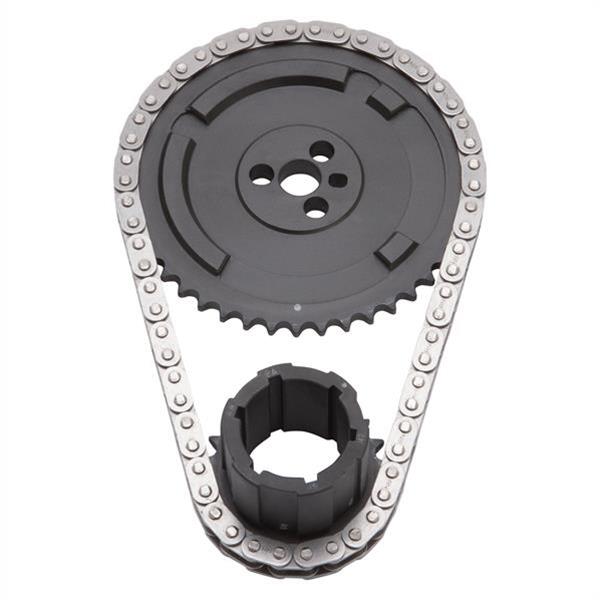

Edelbrock Timing Chain GM V8 LS3 Aftermarket Three Bolt Cams

SKU: EDE7338

Timing Chain and Gear Sets

EDE Timing Chain...

Edelbrock

Edelbrock Timing Chain GM V8 LS3 Aftermarket Three Bolt Cams

SKU: EDE7338

Timing Chain and Gear Sets

EDE Timing Chain...

Last Available from MFR. LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.

We accept

Description

Edelbrock part #7338 RPM-Link adjustable true-roller timing chain Set now, you can dial-in your camshaft with ease with our RPM-Link Roller Timing Chain Set. RPM-Link timing chain bolt onto your engine just like any other timing chain set, so there's no machining required and no need for special offset bushings for installation. Made from induction hardened billet steel, it allows for a quick cam timing adjustment to plus or minus six degrees. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

Product Overview

Edelbrock part #7338 RPM-Link adjustable true-roller timing chain Set now, you can dial-in your camshaft with ease with our RPM-Link Roller Timing Chain Set. RPM-Link timing chain bolt onto your engine just like any other timing chain set, so there's no machining required and no need for special offset bushings for installation. Made from induction hardened billet steel, it allows for a quick cam timing adjustment to plus or minus six degrees- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break

Features and Benefits

No Need For Special Offset Bushings

Product Details

Description:	RPM-Link True-Roller Timing Chain Set
Engine Make/Size:	Chevy LS3
Keyway Adjustable:	Yes
Maximum Advance At Camshaft:	4
Maximum Retard At Camshaft:	4
Part Number:	ede7338
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Timing Chain Type:	Single Roller
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Small-Block Gen IV LS3:376 (6.2L)

Part Type

Engine Timing Set

Data: v4.2 - Upd: 2026-10-13 23:13:07

Features

No Need For Special Offset Bushings

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 7338
Product Attributes - Part Type: Timing Chain and Gear Sets
Product Attributes - Product Line: Edelbrock Hex-A-Just Timing Sets
Product Attributes - UPC: 085347073382
Product Attributes - Timing Chain Included: Yes
Product Attributes - Timing Chain Style: Single roller
Product Attributes - Camshaft Gear Attachment: 3-bolt
Product Attributes - Maximum Advance/Retard at Camshaft: 4 degree
Product Attributes - Maximum Advance/Retard at Crankshaft: 4 degree
Product Attributes - Cam Gear Included: Yes
Product Attributes - Cam Gear Material: Steel
Product Attributes - Crank Gear Included: Yes
Product Attributes - Crank Gear Material: Steel
Product Attributes - VVT Gear Included: No
Product Attributes - Tensioner Included: No
Product Attributes - Thrust Bearing Included: No
Product Attributes - Bolts/Studs Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Offset Bushings Included: No
Product Attributes - Quantity: Sold as a set.
Product Attributes - Notes: Fits LS3 engines with aftermarket camshaft.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede7338
SFX Item ID	4236102
Supplier Item Code	4236102
Manufacturer SKU	7338
Manufacturer UPC	85347073382
Alternative References	351w;, EDB7338, EDL-7338, LS3
