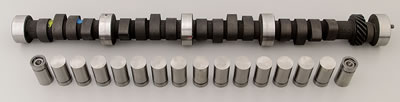

Edelbrock Perf RPM Cam and Lifters Kit Chrys 383-440

SKU: EDE7194

Camshaft Kits

EDE Performer RPM Camshaft...

Edelbrock

Edelbrock Perf RPM Cam and Lifters Kit Chrys 383-440

SKU: EDE7194

Camshaft Kits

EDE Performer RPM Camshaft...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

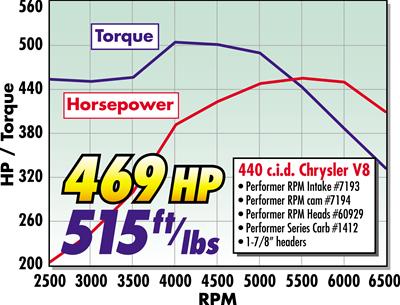

Edelbrock part #7194 Performer RPM Camshaft is designed for 1968 & Later Chrysler 383-400-440 V-8 applications. This Edelbrock cam kit produced 469 HP & 515 ft-lbs. of torque when used with #7193 intake and #60929 cylinder heads on a 440 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft.Camshaft Specifications:- Duration @ .050 Intake: 238 degrees - Duration @ .050 Exhaust: 246 degrees- Lift @ Valve Intake: .480"- Lift @ Valve Exhaust: .495"- Lobe Separation: 110 Degrees- Intake Centerline: 105 Degrees- Idle Vacuum @ 1000 RPM's: 10"

Product Overview

Edelbrock part #7194 Performer RPM Camshaft is designed for 1968 & Later Chrysler 383-400-440 V-8 applications. This Edelbrock cam kit produced 469 HP & 515 ft-lbs. of torque when used with #7193 intake and #60929 cylinder heads on a 440 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft. Camshaft Specifications: - Duration @ .050 Intake: 238 degrees - Duration @ .050 Exhaust: 246 degrees - Lift @ Valve Intake: .480" - Lift @ Valve Exhaust: .495" - Lobe Separation: 110 Degrees - Intake Centerline: 105 Degrees - Idle Vacuum @ 1000 RPM's: 10"

Features and Benefits

Take the Guesswork Out of Camshaft Selection!

Product Details

Advertised Exhaust Duration:	308
Advertised Intake Duration:	300
Cam Type:	Cast
Computer Controlled Compatible:	No
Description:	Performer RPM Camshaft Kit
Engine Make/Size:	Mopar 383-440
Exh. Duration @ .050 in. (Deg):	246
Exh. Duration Advertised (Deg):	308
Exhaust Duration at .050 inch Lift:	246
Exhaust Valve Lift (in.):	0.495
Exhaust Valve Lift:	0.495
Grade Type:	Performance
Int. Duration @ .050 in. (Deg):	238
Int. Duration Advertised (Deg):	300
Intake Duration .050 Inch Lift:	238
Intake Duration @ 0.050 in.:	238 Degree
Intake Duration Advertised:	300
Intake Valve Lift (in.):	0.480
Intake Valve Lift:	0.480
Lifter Materials:	Hardened Steel
Lifter Type:	Hydraulic
Lobe Separation:	110
Part Number:	ede7194
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	1000-7000
Usage:	Street/Performance
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chrysler:Big-Block RB Series:413 (6.8L)/426 (7.0L)/440 (7.2L)

Part Type

Engine Camshaft and Lifter Kit

Data: v4.2 - Upd: 2026-10-13 23:12:30

Features

Take the Guesswork Out of Camshaft Selection!

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 7194
Product Attributes - Part Type: Camshaft Kits
Product Attributes - Product Line: Edelbrock Performer RPM Cam and Lifter Kits
Product Attributes - UPC: 085347071944
Product Attributes - Cam Style: Hydraulic flat tappet
Product Attributes - Basic Operating RPM Range: 1,500-6,500
Product Attributes - Camshaft Use: Street/Strip
Product Attributes - Intake Duration at 050 inch Lift: 238
Product Attributes - Exhaust Duration at 050 inch Lift: 246
Product Attributes - Duration at 050 inch Lift: 238 int./246 exh.
Product Attributes - Advertised Intake Duration: 300
Product Attributes - Advertised Exhaust Duration: 308
Product Attributes - Advertised Duration: 300 int./308 exh.
Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.495 in.
Product Attributes - Valve Lift with Factory Rocker Arm Ratio: 0.480 int./0.495 exh.
Product Attributes - Lobe Separation (degrees): 110
Product Attributes - Camshaft Gear Attachment: 1-bolt
Product Attributes - Computer-Controlled Compatible: No
Product Attributes - Lifters Included: Yes
Product Attributes - Lifter Style: Hydraulic flat tappet
Product Attributes - Valve Springs Included: No
Product Attributes - Retainers Included: No
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Timing Chain and Gears Included: No
Product Attributes - Assembly Lubricant Included: Yes
Product Attributes - Pushrods Included: No
Product Attributes - Rocker Arms Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Valve Springs Required: Yes
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: Single-bolt camshaft. Although the advertised RPM range for these camshafts is 1,500 to 6,500 rpm, for best performance we recommend a minimum 3,000 rpm stall torque converter be used in applications with automatic transmissions.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede7194
SFX Item ID	4236675
Supplier Item Code	4236675
Manufacturer SKU	7194
Manufacturer UPC	85347071944
Alternative References	EDB7194, EDL-7194
