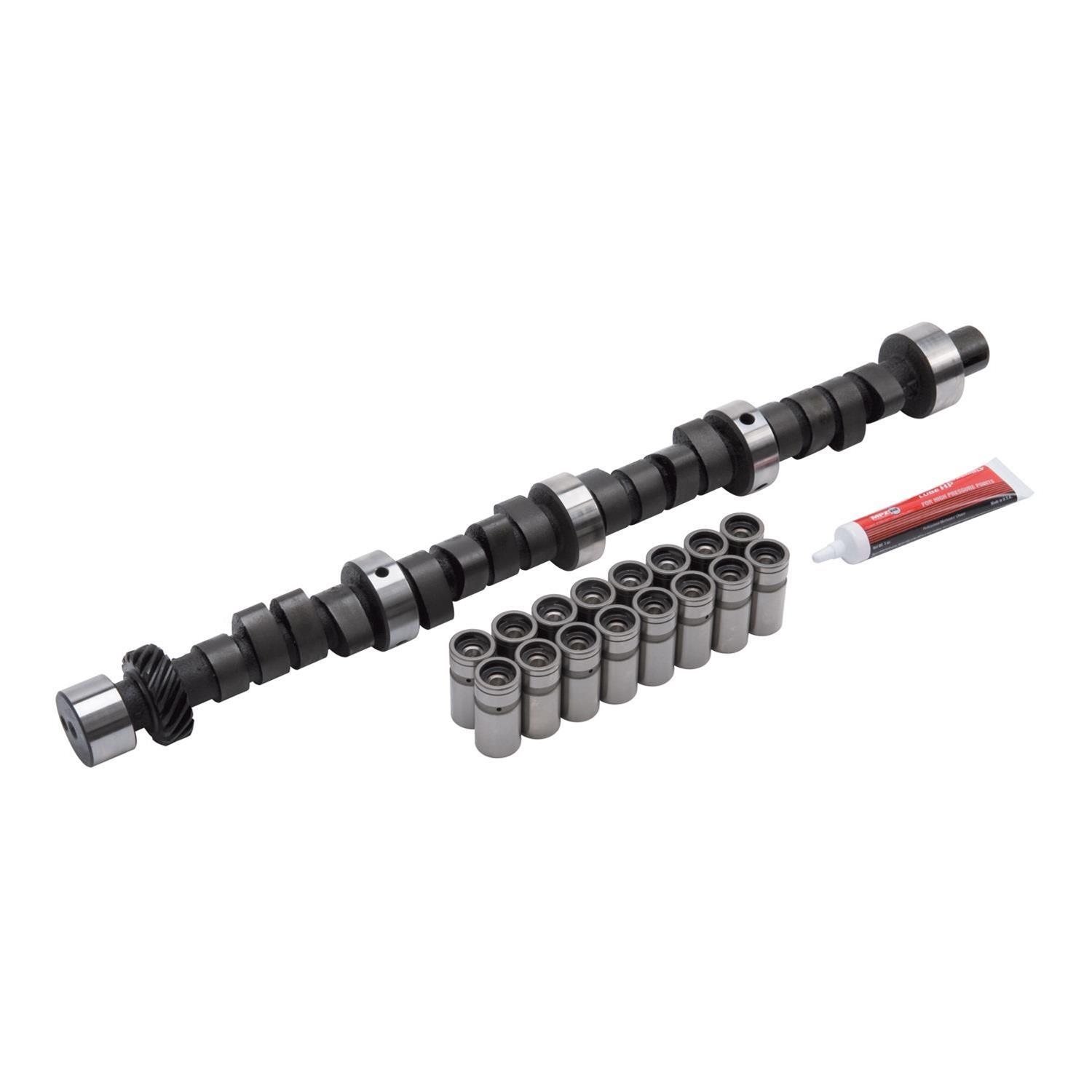

Edelbrock Perf RPM Cam and Lifters Kit Chrys 318-360

SKU: EDE7177

Camshaft Kits

EDE Performer RPM Camshaft...

Edelbrock

Edelbrock Perf RPM Cam and Lifters Kit Chrys 318-360

SKU: EDE7177

Camshaft Kits

EDE Performer RPM Camshaft...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

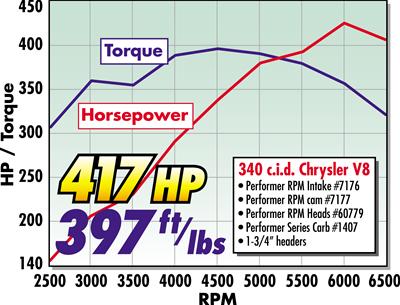

Edelbrock part #7177 Performer RPM Camshaft is designed for small-block Chrysler 318-340-360 V-8 applications. This Edelbrock cam kit produced 417 HP & 397 ft-lbs. of torque when used with #7176 intake and #60779 cylinder heads on a 340 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft.Camshaft Specifications:- Duration @ .050 Intake: 234 degrees - Duration @ .050 Exhaust: 244 degrees- Lift @ Valve Intake: .488"- Lift @ Valve Exhaust: .510"- Lobe Separation: 112 Degrees- Intake Centerline: 107 Degrees

Product Overview

Edelbrock part #7177 Performer RPM Camshaft is designed for small-block Chrysler 318-340-360 V-8 applications. This Edelbrock cam kit produced 417 HP & 397 ft-lbs. of torque when used with #7176 intake and #60779 cylinder heads on a 340 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft. Camshaft Specifications: - Duration @ .050 Intake: 234 degrees - Duration @ .050 Exhaust: 244 degrees - Lift @ Valve Intake: .488" - Lift @ Valve Exhaust: .510" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees

Features and Benefits

Take the Guesswork Out of Camshaft Selection!

Product Details

Advertised Exhaust Duration:	318
Advertised Intake Duration:	308
Cam Type:	Cast
Computer Controlled Compatible:	No
Description:	Performer RPM Camshaft Kit
Engine Make/Size:	Mopar 318-360
Exh. Duration @ .050 in. (Deg):	244
Exh. Duration Advertised (Deg):	318
Exhaust Duration at .050 inch Lift:	244
Exhaust Valve Lift (in.):	0.51
Exhaust Valve Lift:	0.510
Grade Type:	Performance
Int. Duration @ .050 in. (Deg):	234
Int. Duration Advertised (Deg):	308
Intake Duration .050 Inch Lift:	234
Intake Duration @ 0.050 in.:	234 Degree
Intake Duration Advertised:	308
Intake Valve Lift (in.):	0.488
Intake Valve Lift:	0.488
Lifter Materials:	Hardened Steel
Lifter Type:	Hydraulic
Lobe Separation:	112
Part Number:	ede7177
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	1000-7000
Usage:	Street/Performance
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)

Part Type

Engine Camshaft and Lifter Kit

Data: v4.2 - Upd: 2026-10-14 22:07:41

Features

Take the Guesswork Out of Camshaft Selection!

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 7177
Product Attributes - Part Type: Camshaft Kits
Product Attributes - Product Line: Edelbrock Performer RPM Cam and Lifter Kits
Product Attributes - UPC: 085347071777
Product Attributes - Cam Style: Hydraulic flat tappet
Product Attributes - Basic Operating RPM Range: 1,500-6,500
Product Attributes - Camshaft Use: Street/Strip
Product Attributes - Intake Duration at 050 inch Lift: 234
Product Attributes - Exhaust Duration at 050 inch Lift: 244
Product Attributes - Duration at 050 inch Lift: 234 int./244 exh.
Product Attributes - Advertised Intake Duration: 308
Product Attributes - Advertised Exhaust Duration: 318
Product Attributes - Advertised Duration: 308 int./318 exh.
Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio: 0.488 in.
Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.510 in.
Product Attributes - Valve Lift with Factory Rocker Arm Ratio: 0.488 int./0.510 exh.
Product Attributes - Lobe Separation (degrees): 112
Product Attributes - Computer-Controlled Compatible: No
Product Attributes - Lifters Included: Yes
Product Attributes - Lifter Style: Hydraulic flat tappet
Product Attributes - Valve Springs Included: No
Product Attributes - Retainers Included: No
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Timing Chain and Gears Included: No
Product Attributes - Assembly Lubricant Included: Yes
Product Attributes - Pushrods Included: No
Product Attributes - Rocker Arms Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Valve Springs Required: Yes
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: Although the advertised RPM range for these camshafts is 1,500 to 6,500 rpm, for best performance we recommend a minimum 3,000 rpm stall torque converter be used in applications with automatic transmissions.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede7177
SFX Item ID	4236674
Supplier Item Code	4236674
Manufacturer SKU	7177
Manufacturer UPC	85347071777
Alternative References	EDB7177, EDL-7177
