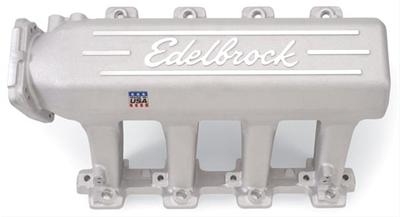

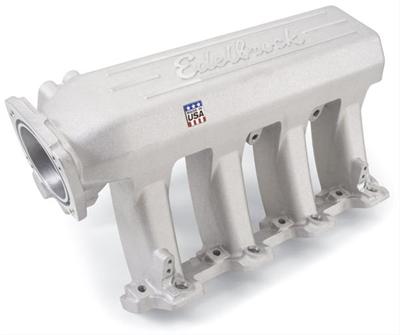

Edelbrock Manifold EFI Pro-Flo XT LS2 As Cast

SKU: EDE7140

Intake Manifolds, Fuel Injected

EDE Pro-Flo XT Intake Manifold...

Edelbrock

Edelbrock Manifold EFI Pro-Flo XT LS2 As Cast

SKU: EDE7140

Intake Manifolds, Fuel Injected

EDE Pro-Flo XT Intake Manifold...

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Edelbrock part #7140 Pro-Flo XT LS2 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. This Pro-Flo XT LS2 intake manifold accepts GM OEM 90mm or Edelbrock #3869 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately), which features -6 AN inlet and outlet.

Product Overview

Features and Benefits

As-Cast Finish

Product Details

Basic Operating RPM Range:	1500-7000
CNC Ported:	No
Center Maximum Height:	10.200
Cylinder Head Type:	Standard
Description:	Pro-Flo XT EFI Intake Manifold
EGR Port:	No
Emission:	Without EGR
Engine Make/Size:	Chevy LS2
Finish:	Satin
Flange Type:	Throttle Body XT
Front Maximum Height:	10.200
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Number of Carbs:	One
Part Number:	ede7140
Position:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	1500-6500
Rear Maximum Height:	10.000
Series:	Pro-Flo XT
Single Or Dual Plane Type:	Single
Usage:	Racing
Vehicle Model:	Chevrolet
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Small-Block Corvette Gen IV LS2:364 (6.0L)

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-13 23:12:18

Features

As-Cast Finish

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 7140
Product Attributes - Part Type: Intake Manifolds, Fuel Injected
Product Attributes - Product Line: Edelbrock Pro-Flo XT EFI Intake Manifolds
Product Attributes - UPC: 085347071401
Product Attributes - Cylinder Head Configuration: Cathedral Port LS1/LS2/LS6
Product Attributes - Fuel Injection Style: Multi-port
Product Attributes - Basic Operating RPM Range: 1,500-7,000
Product Attributes - Intake Section Included: Complete
Product Attributes - Throttle Body Bore Size: 90mm
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Injectors Included: No
Product Attributes - Multi-Port Fuel Rails Included: No
Product Attributes - EGR: No
Product Attributes - Aftermarket Fuel Rail Required: Yes
Product Attributes - Throttle Body Included: No
Product Attributes - Supplemental Bosses Cast-In: Yes
Product Attributes - Supplemental Bosses Machined: Yes
Product Attributes - Supplemental Boss Quantity: Eight
Product Attributes - Runners Included: Yes
Product Attributes - Runners Removable: No
Product Attributes - Plenum Material: Aluminum
Product Attributes - Plenum Finish: Natural
Product Attributes - Base Material: Aluminum
Product Attributes - Base Color: Natural
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Designed for LS2 with OE LS2 or equivalent throttle body.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede7140
SFX Item ID	4236852
Supplier Item Code	4236852
Manufacturer SKU	7140
Manufacturer UPC	85347071401
Alternative References	edl-7140, EDB7140, LS2
