Edelbrock AMC Performer RPM Camshaft for 66-92 (343/360/390/401) CI Engines
Edelbrock AMC Performer RPM Camshaft for 66-92 (343/360/390/401) CI Engines
A$977.08
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description

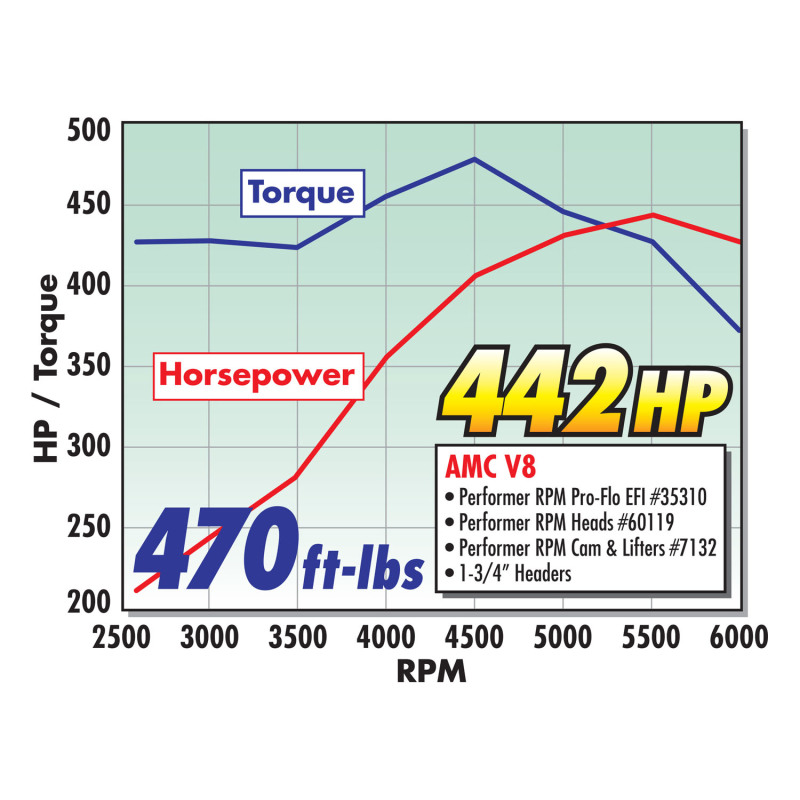

Edelbrock part #7132 Performer RPM Camshaft is designed for AMC 343-401 V-8 applications. This Edelbrock cam kit produced 433 HP & 489 ft-lbs. of torque when used with #7531 intake and #60119 cylinder heads on a 401 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft.Camshaft Specifications:- Duration @ .050 Intake: 234 degrees - Duration @ .050 Exhaust: 244 degrees- Lift @ Valve Intake: .520"- Lift @ Valve Exhaust: .544"- Lobe Separation: 112 Degrees- Intake Centerline: 107 Degrees- Idle Vacuum @ 1000 RPM's: 11"
Product Overview
Edelbrock part #7132 Performer RPM Camshaft is designed for AMC 343-401 V-8 applications. This Edelbrock cam kit produced 433 HP & 489 ft-lbs. of torque when used with #7531 intake and #60119 cylinder heads on a 401 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft. Camshaft Specifications: - Duration @ .050 Intake: 234 degrees - Duration @ .050 Exhaust: 244 degrees - Lift @ Valve Intake: .520" - Lift @ Valve Exhaust: .544" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 11"
Features and Benefits
- Take the Guesswork Out of Camshaft Selection!
Product Details
| Cam Type: | Cast |
|---|---|
| Computer Controlled Compatible: | No |
| Description: | Performer RPM Camshaft Kit |
| Engine Make/Size: | AMC 290-401 |
| Exh. Duration @ .050 in. (Deg): | 244 |
| Exh. Duration Advertised (Deg): | 320 |
| Exhaust Duration at .050 inch Lift: | 244 |
| Exhaust Valve Lift (in.): | 0.544 |
| Exhaust Valve Lift: | 0.544 |
| Grade Type: | Performance |
| Int. Duration @ .050 in. (Deg): | 234 |
| Int. Duration Advertised (Deg): | 310 |
| Intake Duration .050 Inch Lift: | 234 |
| Intake Duration @ 0.050 in.: | 234 Degree |
| Intake Duration Advertised: | 310 |
| Intake Valve Lift (in.): | 0.520 |
| Intake Valve Lift: | 0.520 |
| Lifter Materials: | Hardened Steel |
| Lifter Type: | Hydraulic |
| Lobe Separation: | 112 |
| Part Number: | ede7132 |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1000-7000 |
| Usage: | Street/Performance |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
AMC:-:290 (4.7L)/304 (5.0L)/360 (5.9L)/390 (6.4L)/401 (6.6L)
Part Type
Engine Camshaft and Lifter Kit
Features
- Take the Guesswork Out of Camshaft Selection!
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 7132
- Product Attributes - Part Type
- Camshaft Kits
- Product Attributes - Product Line
- Edelbrock Performer RPM Cam and Lifter Kits
- Product Attributes - UPC
- 085347071326
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Intake Duration at 050 inch Lift
- 234
- Product Attributes - Exhaust Duration at 050 inch Lift
- 244
- Product Attributes - Duration at 050 inch Lift
- 234 int./244 exh.
- Product Attributes - Advertised Intake Duration
- 310
- Product Attributes - Advertised Exhaust Duration
- 320
- Product Attributes - Advertised Duration
- 310 int./320 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.520 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.544 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.520 int./0.544 exh.
- Product Attributes - Lobe Separation (degrees)
- 112
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Lifters Included
- Yes
- Product Attributes - Lifter Style
- Hydraulic flat tappet
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Timing Chain and Gears Included
- No
- Product Attributes - Assembly Lubricant Included
- No
- Product Attributes - Pushrods Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Although the advertised RPM range for these camshafts is 1,500 to 6,500 rpm, for best performance we recommend a minimum 3,000 rpm stall torque converter be used in applications with automatic transmissions.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede7132 |
| SFX Item ID | 4236664 |
| Supplier Item Code | 4236664 |
| Manufacturer SKU | 7132 |
| Manufacturer UPC | 85347071326 |
| Alternative References | EDB7132, EDL-7132 |
Brochures
Compatibility
AMC:-:290 (4.7L)/304 (5.0L)/360 (5.9L)/390 (6.4L)/401 (6.6L)
