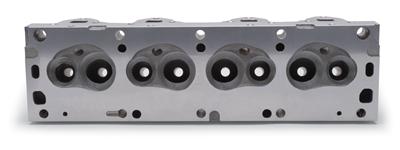

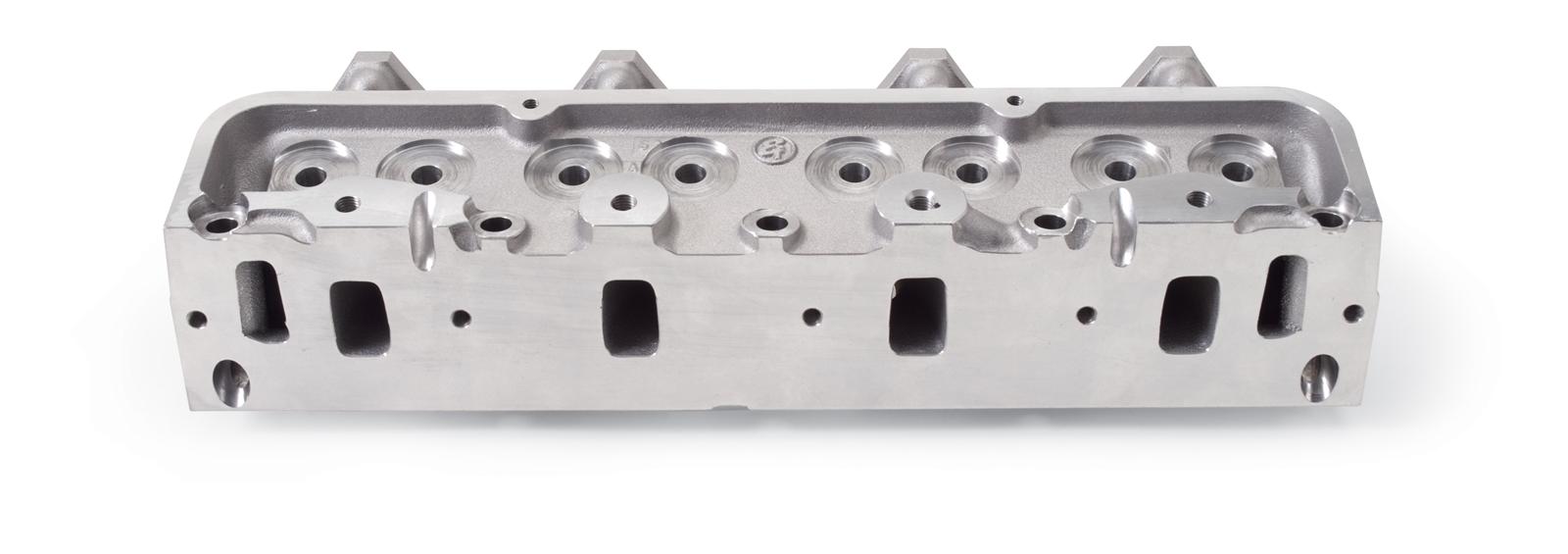

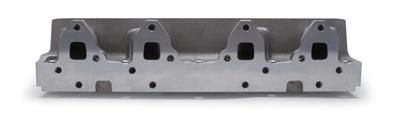

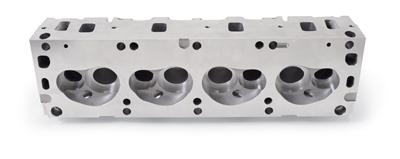

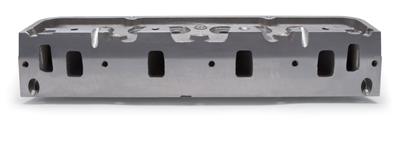

Edelbrock Cylinder Head Ford FE Pro-Port NHRA Super Stock

SKU: EDE61857

Cylinder Heads

EDE Pro-Port Cylinder Head...

Edelbrock

Edelbrock Cylinder Head Ford FE Pro-Port NHRA Super Stock

SKU: EDE61857

Cylinder Heads

EDE Pro-Port Cylinder Head...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

The Edelbrock 61857 Ford FE NHRA Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included- Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Product Overview

The Edelbrock 61857 Ford FE NHRA Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Features and Benefits

Ductile Iron Seats

Product Details

CNC Ported:	No
Combustion Chamber Volume:	Possible 45
Construction Type:	Pro-Port Raw
Cylinder Head Type:	Standard
Deck Thickness:	0.625
Description:	Performer Series RPM NHRA Super Stock Cylinder Head
EGR Port:	No
Emission:	Non-Emissions
Engine Make/Size:	Ford Big Block 390-428 FE
Exhaust Port Entry:	1.55 in x 1.00
Exhaust Valve Diameter:	(Suggested) 1.66
Exhaust Valve Pierce Points (X,Y)(C):	1.160 in, 0.220
Family:	Performer RPM
Finish:	Satin
Grade Type:	Performance
Guide Material:	Manganese Bronze
Guide Plates Included:	No
Head Casting Number:	N/A
Intake Port Entry:	1.49 in x 0.94
Intake Valve Diameter:	(Suggested) 2.09
Intake Valve Pierce Points (X,Y)(C):	0.885 in, 0.220
Material:	Aluminum
Part Number:	ede61857
Preparation:	Requires Professional Preparation (Bare)
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Retainer Included:	No
Seat Angle:	Exhaust 45 deg/Intake 60
Seat Material:	Ductile Iron
Series:	Pro-Port
Specialty:	Hot Isostatic Pressing (HIP) Processing
Type:	Bare
Usage:	Racing
Valve Angle:	13
Valve Guides Included:	Yes
Valve Included:	No
Valve Seats Included:	Yes
Valve Spacing:	2.045
Valve Springs Included:	No
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L)

Part Type

Engine Cylinder Head

Data: v4.2 - Upd: 2026-10-13 23:12:18

Features

Ductile Iron Seats

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 61857
Product Attributes - Part Type: Cylinder Heads
Product Attributes - Product Line: Edelbrock Pro-Port Raw Ford FE Cylinder Heads
Product Attributes - UPC: 085347618576
Product Attributes - Combustion Chamber Volume (cc): 45
Product Attributes - Cylinder Head Style: Bare
Product Attributes - Cylinder Head Material: Cast aluminum
Product Attributes - CNC-Machined Combustion Chamber: No
Product Attributes - CNC-Machined Intake Runner: No
Product Attributes - CNC-Machined Exhaust Runner: No
Product Attributes - Intake Valves Included: No
Product Attributes - Exhaust Valves Included: No
Product Attributes - Valve Springs Included: No
Product Attributes - Damper Spring Included: No
Product Attributes - Retainers Included: No
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Rocker Arm Studs Included: No
Product Attributes - Rocker Arms Included: No
Product Attributes - Rocker Arm Nuts Included: No
Product Attributes - Guideplates Included: No
Product Attributes - Accessory Bolt Holes Drilled: Yes
Product Attributes - Intake Valve Angle: 13.00
Product Attributes - Valve Guides Included: Yes
Product Attributes - Valve Guide Material: Manganese bronze
Product Attributes - Valve Seats Machined: No
Product Attributes - Valve Seat Material: Ductile iron
Product Attributes - Cylinder Head Color: Natural
Product Attributes - Steam Holes Drilled: No
Product Attributes - Oiling Style: Through pushrod
Product Attributes - Machined for O-Ring: No
Product Attributes - Heat Crossover: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: NHRA Super Stock legal. Cast with added material in the runners and chambers to allow for a wide variety of CNC porting to be performed. Valve seats and guides are included but not installed. Professional preparation will be required for these heads prior to installation.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede61857
SFX Item ID	4236858
Supplier Item Code	4236858
Manufacturer SKU	61857
Manufacturer UPC	85347618576
Alternative References	lt1, v8;, 54cc;, EDB61857, EDL-61857
