Edelbrock Cyl Head Perf RPM Chrys Magnum V8 92Up 5 2L 93Up 5 9L Complete
Edelbrock Cyl Head Perf RPM Chrys Magnum V8 92Up 5 2L 93Up 5 9L Complete
A$2,980.34
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

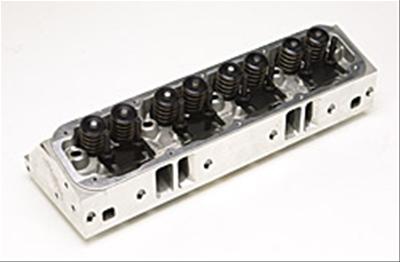

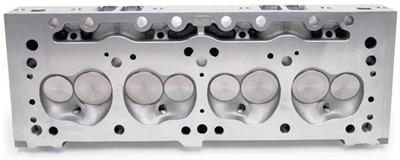

The Edelbrock #61779 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61779 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Product Overview
The Edelbrock #61779 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61779 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Features and Benefits
- For Bare Version of This Head Use PN[61769]
Product Details
| CNC Ported: | No |
|---|---|
| Camshaft Type: | Flat Tappet |
| Combustion Chamber Volume: | 58 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | Performer Series RPM Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Mopar 318/360 Magnum |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 75 |
| Exhaust Valve Diameter: | 1.60 |
| Family: | Performer RPM |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Head Casting Number: | N/A |
| Horsepower: | 350-500 |
| Intake Runner Volume: | 176 |
| Intake Valve Diameter: | 2.02 |
| Material: | Aluminum |
| Part Number: | ede61779 |
| Preparation: | Bolt On (Not Required) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.375 |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Performer RPM |
| Type: | Complete |
| Usage: | Street/Performance |
| Valve Angle: | 18 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.46 |
| Valve Spring Maximum Lift: | 0.580 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
Part Type
Engine Cylinder Head
Features
- For Bare Version of This Head Use PN[61769]
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 61779
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Performer RPM Chrysler Magnum Cylinder Heads
- Product Attributes - UPC
- 085347617791
- Product Attributes - Combustion Chamber Volume (cc)
- 58
- Product Attributes - Intake Runner Volume (cc)
- 176cc
- Product Attributes - Exhaust Runner Volume (cc)
- 75cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic flat tappet
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 2.020 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.600 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.580 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.460 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arm Nut Thread Size
- 3/8 in.-24
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 5/16 in.
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 18
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through head
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- With springs for hydraulic flat tappet cams, Requires hardened pushrods, EDL-9638. Match with Edelbrock head gasket sets. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). Exhaust flanges in stock location to allow use of stock exhaust if desired. Accepts widely available small-block Chevy adjustable rockers 1.6 ratio and classic valve covers EDL-4177 and EDL-41773
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede61779 |
| SFX Item ID | 4236711 |
| Supplier Item Code | 4236711 |
| Manufacturer SKU | 61779 |
| Manufacturer UPC | 85347617791 |
| Alternative References | t-6;, v8;, EDB61779, EDL-61779, 92Up, 93Up |
Brochures
Compatibility
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
