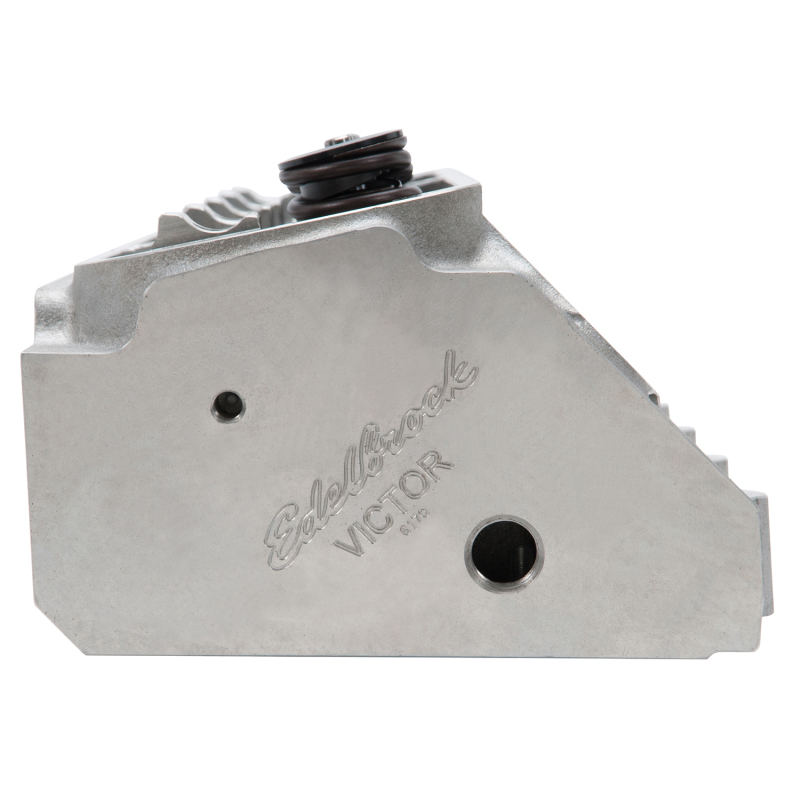

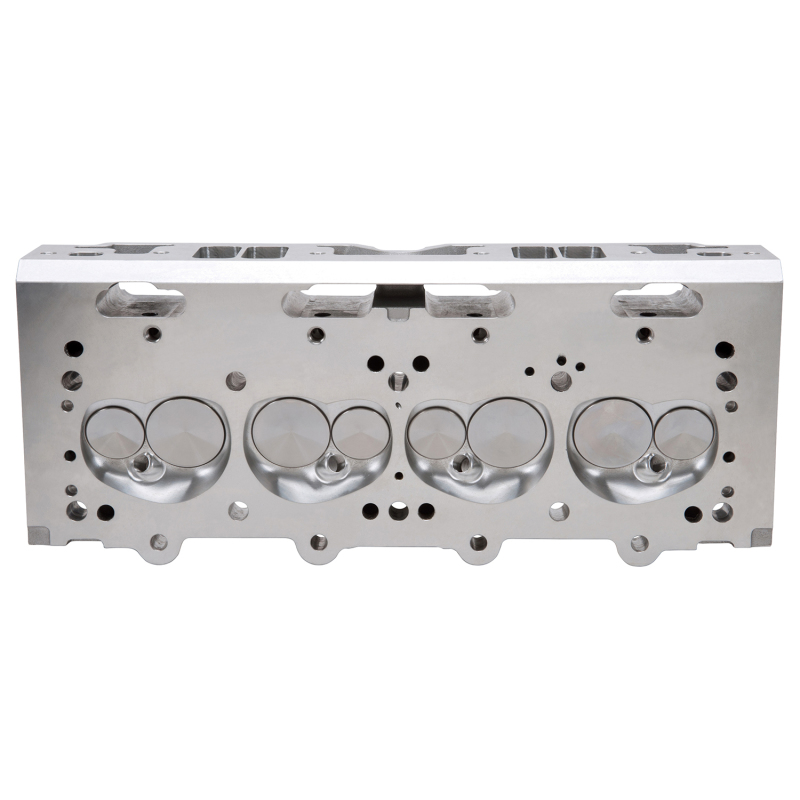

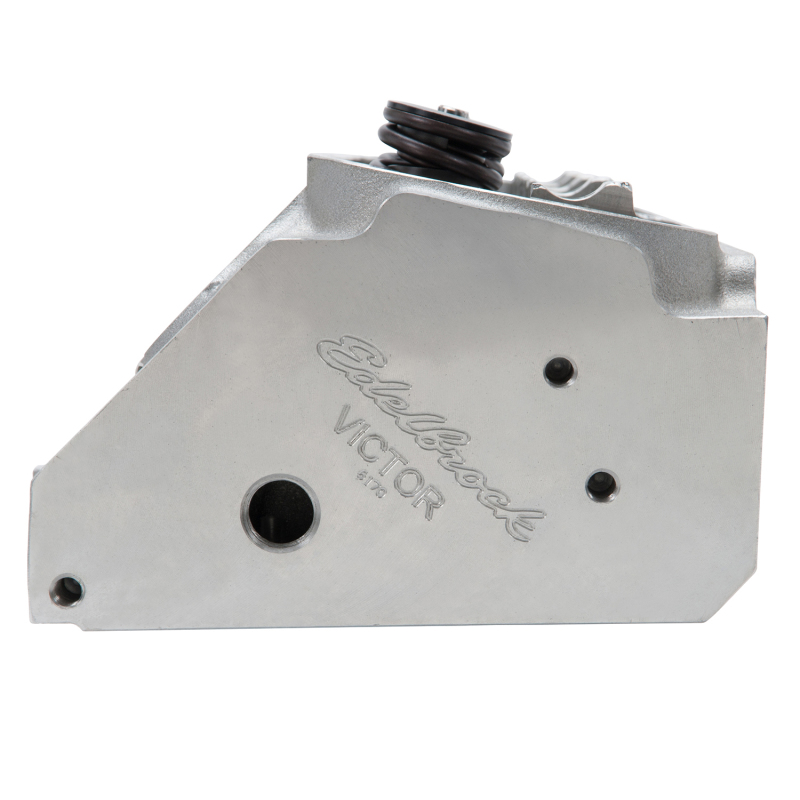

Edelbrock Cylinder Head SB Chrysler Victor In-Line 16 Complete w/ Solid Roller Springs
Edelbrock Cylinder Head SB Chrysler Victor In-Line 16 Complete w/ Solid Roller Springs
A$4,971.43
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
Product Overview
These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
Features and Benefits
- Works With Existing Edelbrock NASCAR SB2 Manifold
Product Details
| CNC Ported: | No |
|---|---|
| Camshaft Type: | Solid Roller |
| Combustion Chamber Volume: | 60 |
| Construction Type: | Complete |
| Cylinder Head Type: | 16 Degree |
| Deck Thickness: | 0.625 |
| Description: | Victor Series Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Mopar 318-360 |
| Exhaust Port Location: | +.500 |
| Exhaust Runner Volume: | 62 |
| Exhaust Valve Diameter: | 1.60 |
| Family: | Victor |
| Finish: | Satin |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Horsepower: | 500-650 |
| Intake Runner Volume: | 225 |
| Intake Valve Diameter: | 2.15 |
| Material: | Aluminum |
| Part Number: | ede61729 |
| Preparation: | Bolt On (Not Required) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Victor |
| Type: | Complete |
| Usage: | Racing |
| Valve Angle: | 16 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.55 |
| Valve Spring Maximum Lift: | 0.670 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
Part Type
Engine Cylinder Head
Features
- Works With Existing Edelbrock NASCAR SB2 Manifold
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 61729
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Victor Series Race Cylinder Heads
- Product Attributes - UPC
- 085347617296
- Product Attributes - Combustion Chamber Volume (cc)
- 58
- Product Attributes - Intake Runner Volume (cc)
- 225cc
- Product Attributes - Exhaust Runner Volume (cc)
- 62cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Solid roller
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 2.150 in.
- Product Attributes - CNC-Machined Combustion Chamber
- Yes
- Product Attributes - CNC-Machined Intake Runner
- Yes
- Product Attributes - CNC-Machined Exhaust Runner
- Yes
- Product Attributes - Combustion Chamber Style
- Heart
- Product Attributes - Intake Port Location
- Raised
- Product Attributes - Exhaust Port Shape
- Round
- Product Attributes - Exhaust Port Location
- Raised
- Product Attributes - Spark Plug Style
- Angle
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.600 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.650 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.550 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 16
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede61729 |
| SFX Item ID | 4237314 |
| Supplier Item Code | 4237314 |
| Manufacturer SKU | 61729 |
| Manufacturer UPC | 85347617296 |
| Alternative References | v8;, EDB61729, EDL-61729 |
Brochures
Compatibility
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
