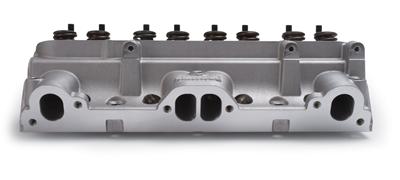

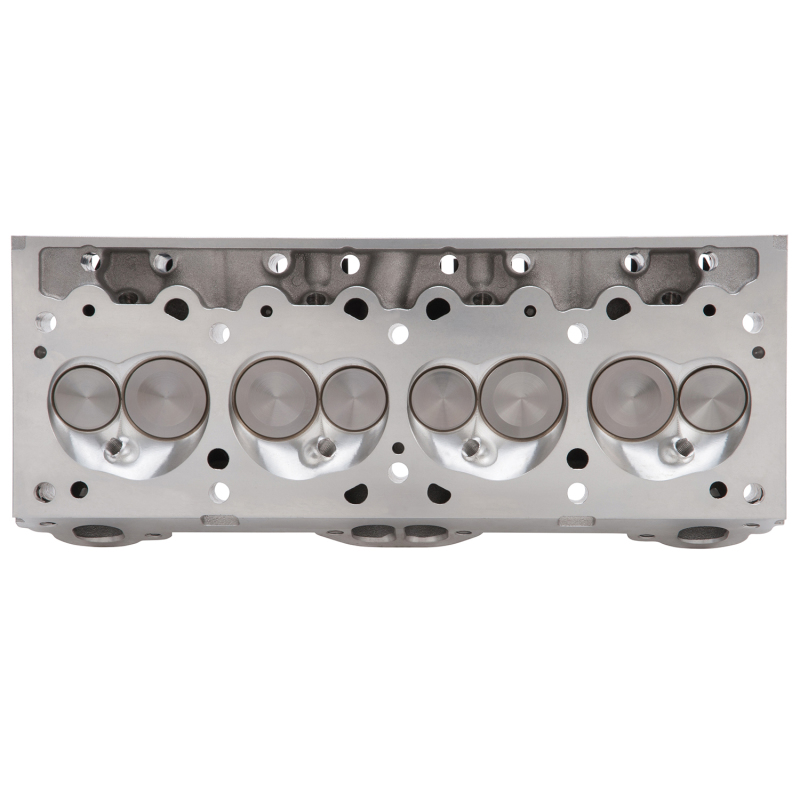

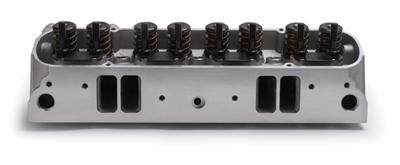

Edelbrock Cylinder Head Pontiac Performer D-Port 72cc Chambers for Hydraulic Roller Cam Complete
Edelbrock Cylinder Head Pontiac Performer D-Port 72cc Chambers for Hydraulic Roller Cam Complete
A$3,876.33
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The Edelbrock #61595 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.
Product Overview
The Edelbrock #61595 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.
Features and Benefits
- Thicker Deck Surfaces Than Other Brands
Product Details
| 9040: | D-215-94 |
|---|---|
| CNC Ported: | Yes |
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 72 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | Performer Series RPM Cylinder Head |
| EGR Port: | Yes |
| Emission: | N/A |
| Engine Make/Size: | Pontiac 326-455 |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 145 |
| Exhaust Valve Diameter: | 1.66 |
| Family: | Performer |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Head Casting Number: | N/A |
| Horsepower: | 400-500 |
| Intake Runner Volume: | 204 |
| Intake Valve Diameter: | 2.11 |
| Material: | Aluminum |
| Part Number: | ede61595 |
| Preparation: | Bolt On (Not Required) |
| Push Rod Diameter: | (Suggested) 0.3125 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.4375 |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Performer |
| Type: | Complete |
| Usage: | Street/Performance |
| Valve Angle: | 14 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.46 |
| Valve Spring Maximum Lift: | 0.575 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)
Part Type
Engine Cylinder Head
Features
- Thicker Deck Surfaces Than Other Brands
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 61595
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Performer Cylinder Heads
- Product Attributes - UPC
- 085347615957
- Product Attributes - Combustion Chamber Volume (cc)
- 72
- Product Attributes - Intake Runner Volume (cc)
- 204cc
- Product Attributes - Exhaust Runner Volume (cc)
- 145cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic roller
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 2.110 in.
- Product Attributes - CNC-Machined Combustion Chamber
- Yes
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Combustion Chamber Style
- Heart
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- D-port
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Angle
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.660 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.600 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.460 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Umbrella
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arm Nut Thread Size
- 7/16 in.-20
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 5/16 in.
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 14
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for 4.060 in and larger bore diameters. Requires Edelbrock head bolt kit EDL-8561 for installation. 350 c.i.d. engines may require notching the block for valve clearance. With springs for hydraulic roller cams.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede61595 |
| SFX Item ID | 4236523 |
| Supplier Item Code | 4236523 |
| Manufacturer SKU | 61595 |
| Manufacturer UPC | 85347615957 |
| Alternative References | t-6;, v8;, EDB61595, EDL-61595, 72cc |
Brochures
Compatibility
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)
