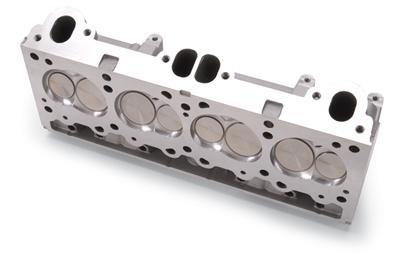

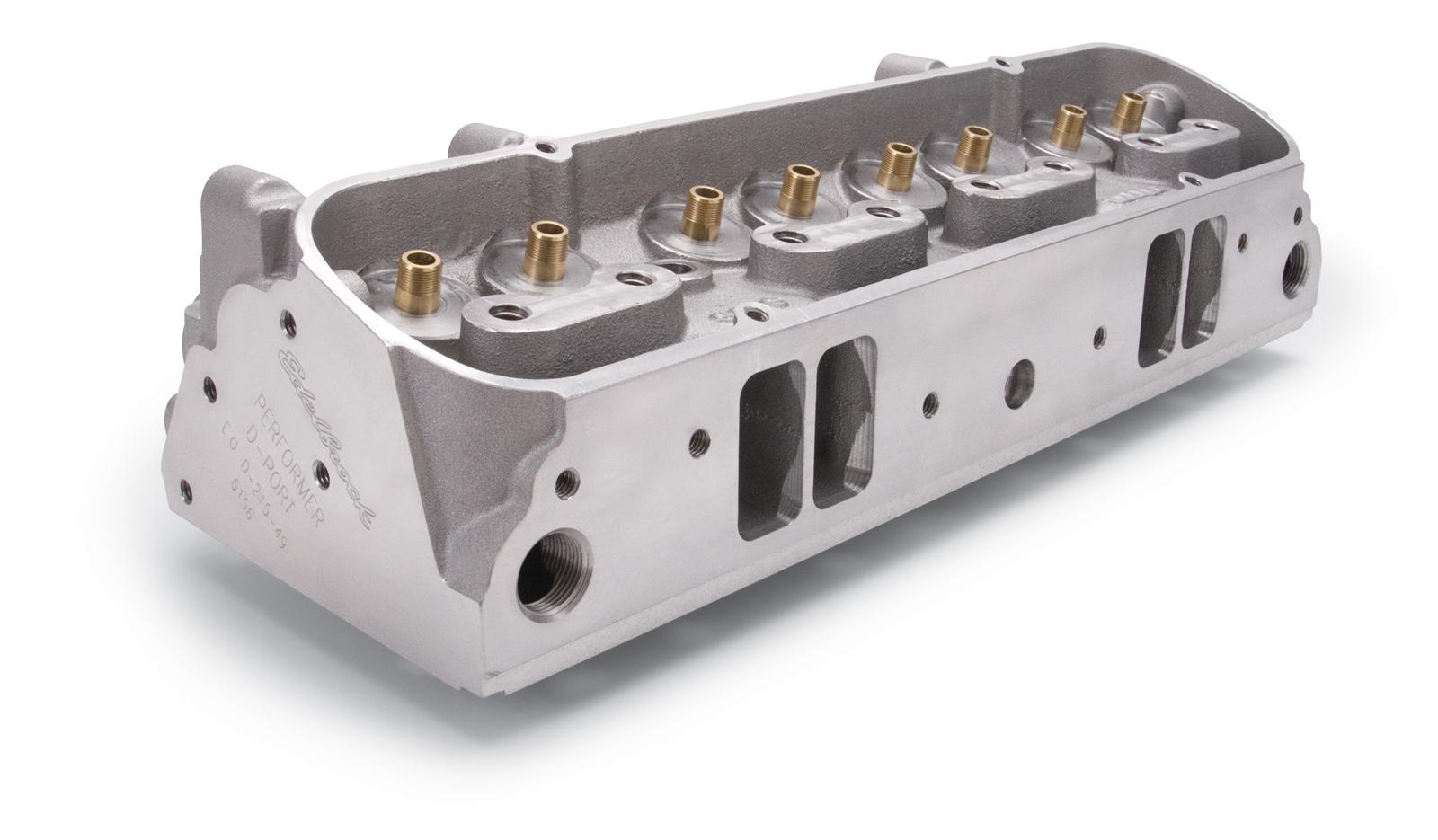

Edelbrock Performer D-Port Bare 87cc

SKU: EDE61569

Cylinder Heads

EDE Performer Cylinder Head...

Edelbrock

Edelbrock Performer D-Port Bare 87cc

SKU: EDE61569

Cylinder Heads

EDE Performer Cylinder Head...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

The Edelbrock #61569 Performer Pontiac Bare Cylinder Head utilizes a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.

Product Overview

Features and Benefits

Machined And Assembled In The U.S.A.

Product Details

9040:	D-215-94
CNC Ported:	Yes
Combustion Chamber Volume:	87
Construction Type:	Bare
Cylinder Head Type:	Pontiac D-Port
Deck Thickness:	0.625
Description:	Performer Series D-Port Cylinder Head
EGR Port:	Yes
Emission:	50 State Legal
Engine Make/Size:	Pontiac 455
Exhaust Port Location:	Standard
Exhaust Runner Volume:	145
Family:	Performer
Finish:	Cast Aluminum
Grade Type:	Performance
Guide Material:	Manganese Bronze
Guide Plate Material:	Hardened Steel
Guide Plates Included:	Yes
Head Casting Number:	N/A
Horsepower:	400-500
Intake Runner Volume:	204
Material:	Aluminum
Part Number:	ede61569
Preparation:	Requires Professional Preparation (Bare)
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Retainer Included:	No
Seat Angle:	Exhaust 45 deg/Intake 45
Seat Material:	Ductile Iron
Series:	Performer
Type:	Bare
Usage:	Street/Performance
Valve Angle:	14
Valve Included:	No
Valve Springs Included:	No
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)

Part Type

Engine Cylinder Head

Data: v4.2 - Upd: 2026-10-16 20:11:36

Features

Machined And Assembled In The U.S.A.

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 61569
Product Attributes - Part Type: Cylinder Heads
Product Attributes - Product Line: Edelbrock Performer Cylinder Heads
Product Attributes - UPC: 085347615698
Product Attributes - Combustion Chamber Volume (cc): 87
Product Attributes - Intake Runner Volume (cc): 204cc
Product Attributes - Exhaust Runner Volume (cc): 145cc
Product Attributes - Cylinder Head Style: Bare
Product Attributes - Cylinder Head Material: Cast aluminum
Product Attributes - Intake Port Shape: Rectangular
Product Attributes - Intake Valve Diameter (in.): 2.110 in.
Product Attributes - CNC-Machined Combustion Chamber: Yes
Product Attributes - CNC-Machined Intake Runner: No
Product Attributes - CNC-Machined Exhaust Runner: No
Product Attributes - Combustion Chamber Style: Heart
Product Attributes - Intake Port Location: Standard
Product Attributes - Exhaust Port Shape: D-port
Product Attributes - Exhaust Port Location: Standard
Product Attributes - Spark Plug Style: Angle
Product Attributes - Intake Valves Included: No
Product Attributes - Exhaust Valves Included: No
Product Attributes - Exhaust Valve Diameter (in.): 1.660 in.
Product Attributes - Valve Springs Included: No
Product Attributes - Damper Spring Included: No
Product Attributes - Retainers Included: No
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Rocker Arm Studs Included: No
Product Attributes - Rocker Arms Included: No
Product Attributes - Rocker Arm Nuts Included: No
Product Attributes - Guideplates Included: No
Product Attributes - Valve Cover Mounting Style: Perimeter bolt
Product Attributes - Accessory Bolt Holes Drilled: Yes
Product Attributes - Intake Valve Angle: 14
Product Attributes - Exhaust Valve Angle: 14
Product Attributes - Valve Guides Included: Yes
Product Attributes - Valve Guide Material: Manganese bronze
Product Attributes - Valve Seats Machined: No
Product Attributes - Valve Seat Material: Ductile iron
Product Attributes - Cylinder Head Color: Natural
Product Attributes - Steam Holes Drilled: No
Product Attributes - Oiling Style: Through pushrod
Product Attributes - Machined for O-Ring: No
Product Attributes - Heat Crossover: Yes
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Designed for 4.060 in and larger bore diameters. Requires Edelbrock head bolt kit EDL-8561 for installation. 350 c.i.d. engines may require notching the block for valve clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.
Product Attributes - CARB EO Number(s): D-215-94
Product Attributes - Emissions: California EO Approved

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede61569
SFX Item ID	4236540
Supplier Item Code	4236540
Manufacturer SKU	61569
Manufacturer UPC	85347615698
Alternative References	87cc, t-6;, v8;, EDB61569, EDL-61569
