Edelbrock Cylinder Head BB Chevy Marine Performer RPM Rectangular Port Complete w/ Springs
Edelbrock Cylinder Head BB Chevy Marine Performer RPM Rectangular Port Complete w/ Springs
A$4,157.26
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

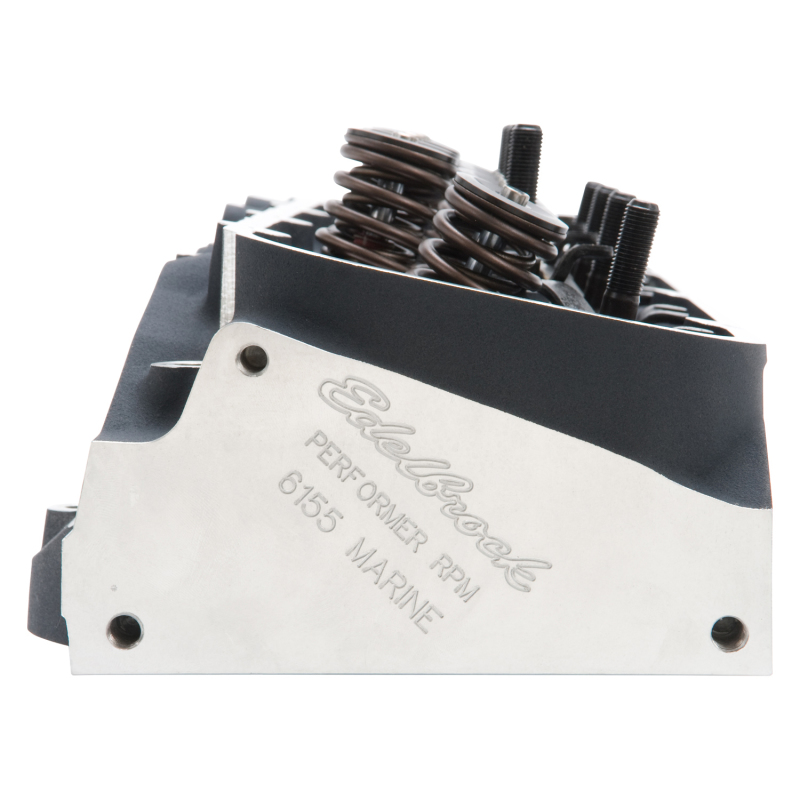

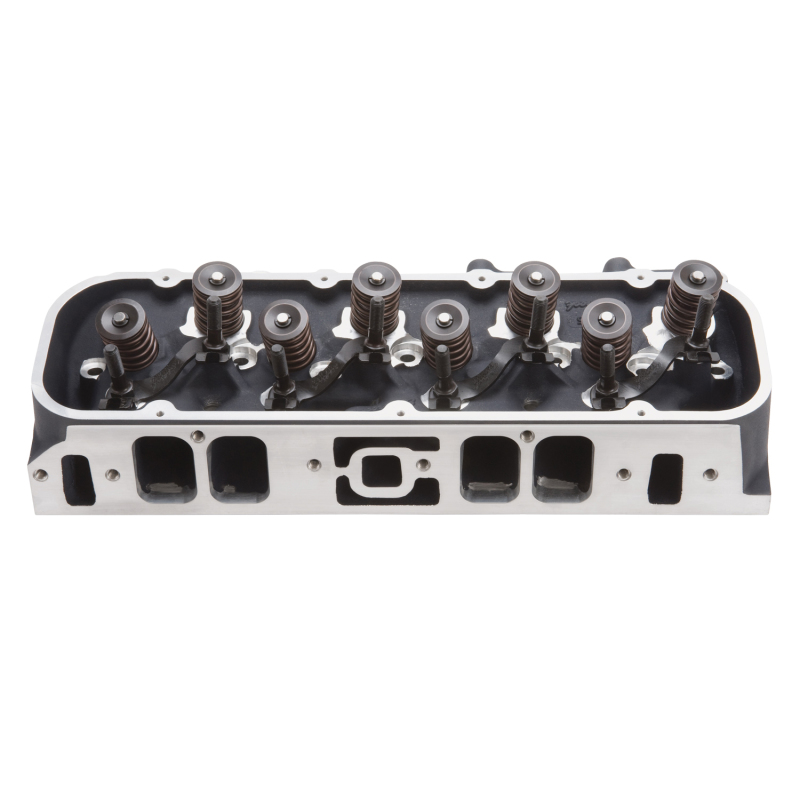

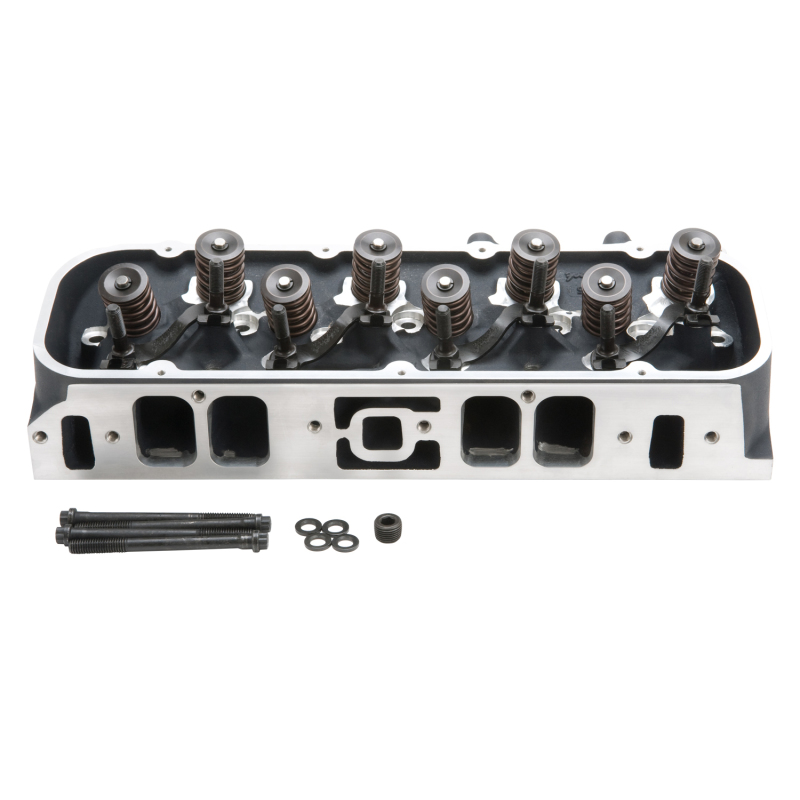

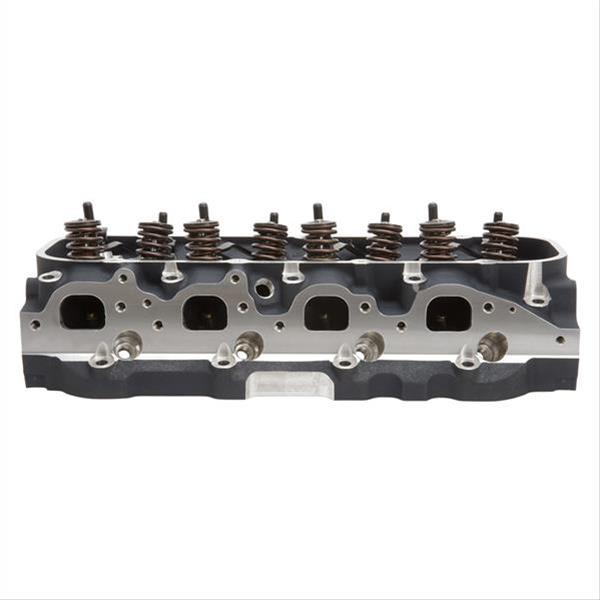

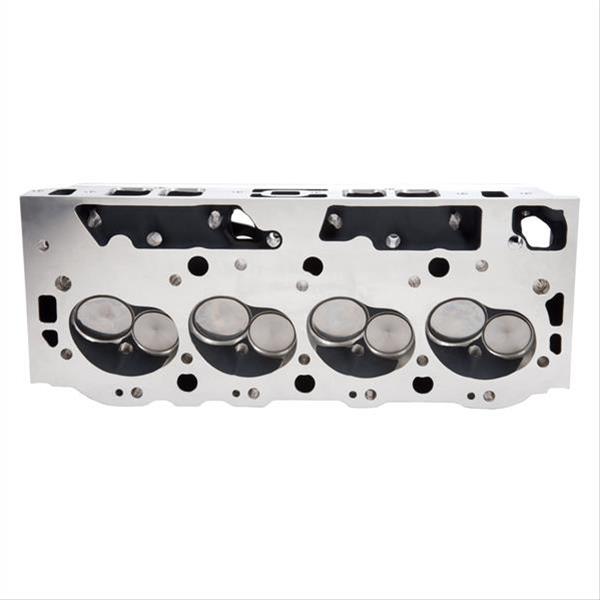

The Edelbrock #61555 Performer RPM Marine-Duty cylinder head is designed for use with Rectangular Port Big-Block Chevy Marine applications. The Edelbrock #61555 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Product Overview
The Edelbrock #61555 Performer RPM Marine-Duty cylinder head is designed for use with Rectangular Port Big-Block Chevy Marine applications. The Edelbrock #61555 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Features and Benefits
- Polished Finish
Product Details
| CNC Ported: | No |
|---|---|
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 118 |
| Construction Type: | Complete |
| Cylinder Head Type: | Chevy Small Block |
| Deck Thickness: | 0.5625 |
| Description: | Performer Series RPM Marine Cylinder Head |
| EGR Port: | No |
| Emission: | N/A |
| Engine Make/Size: | Chevy Big Block (396-502) |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 110 |
| Exhaust Valve Diameter: | 1.89 |
| Family: | Performer RPM |
| Finish: | Satin |
| Flange Type: | Rectangle Intake |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Head Casting Number: | N/A |
| Horsepower: | 500-600 |
| Intake Runner Volume: | 315 |
| Intake Valve Diameter: | 2.25 |
| Material: | Aluminum |
| Part Number: | ede61555 |
| Preparation: | Requires Professional Preparation (Bare) |
| Push Rod Diameter: | (Suggested) 0.375 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.4375 |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Performer RPM |
| Type: | Complete |
| Usage: | Marine |
| Valve Angle: | 26 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.50 |
| Valve Spring Maximum Lift: | 0.650 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Part Type
Engine Cylinder Head
Features
Polished Finish
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 61555
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Marine-Duty Performer RPM 454 Cylinder Heads
- Product Attributes - UPC
- 085347615551
- Product Attributes - Combustion Chamber Volume (cc)
- 118
- Product Attributes - Intake Runner Volume (cc)
- 315cc
- Product Attributes - Exhaust Runner Volume (cc)
- 110cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic roller
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 2.250 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Combustion Chamber Style
- Heart
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Round
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Angle
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.890 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.700 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.500 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arm Nut Thread Size
- 7/16 in.-20
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 3/8 in.
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 26
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Black
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Sold with valves only to allow for valve spring choices. Marine applications only.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede61555 |
| SFX Item ID | 4236697 |
| Supplier Item Code | 4236697 |
| Manufacturer SKU | 61555 |
| Manufacturer UPC | 85347615551 |
| Alternative References | 87cc;, v8;, EDB61555, EDL-61555 |
Brochures
Compatibility
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
