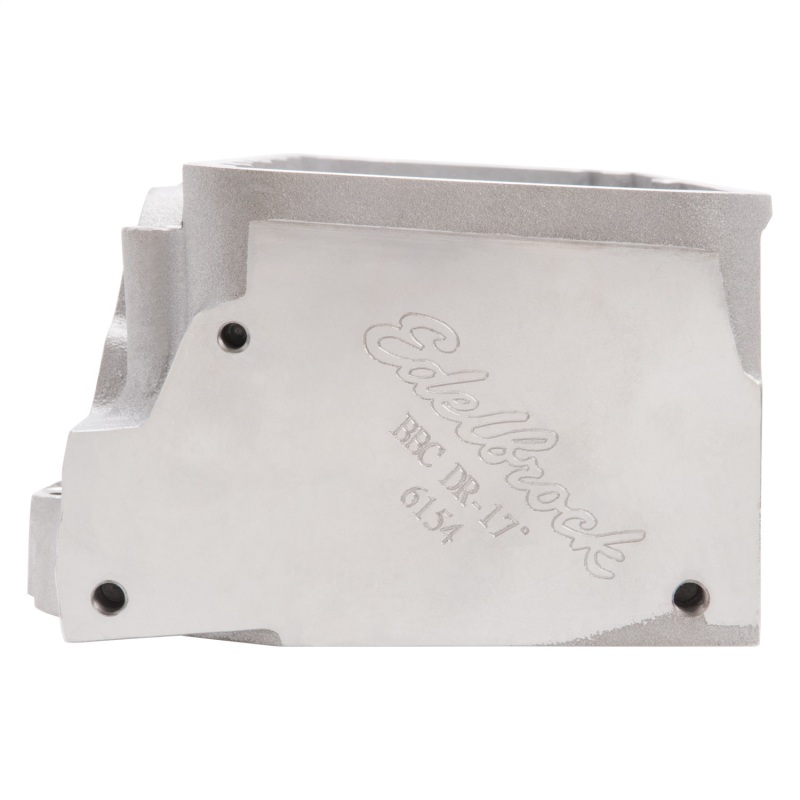

Edelbrock Victor DR-17 E-CNC Cylinder Heads 615468 Head, E-CNC, Bare, Aluminum, 92cc Chamber, Angle Plug Style, Chevy, Big Block, Each
Edelbrock Victor DR-17 E-CNC Cylinder Heads 615468 Head, E-CNC, Bare, Aluminum, 92cc Chamber, Angle Plug Style, Chevy, Big Block, Each
A$6,541.34
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The Edelbrock 614 Big Block Chevy 24 Deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder - Pro-Port cylinder heads are cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only heads designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process.
Part Type
Engine Cylinder Head
Features
- Polished Then Hard Anodized For Use w/Racing Fuel
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 615468
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Victor DR-17 E-CNC Cylinder Heads
- Product Attributes - UPC
- 085347997947
- Product Attributes - Combustion Chamber Volume (cc)
- 92
- Product Attributes - Intake Runner Volume (cc)
- 425cc
- Product Attributes - Exhaust Runner Volume (cc)
- 90cc
- Product Attributes - Cylinder Head Style
- Bare
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - CNC-Machined Combustion Chamber
- Yes
- Product Attributes - CNC-Machined Intake Runner
- Yes
- Product Attributes - CNC-Machined Exhaust Runner
- Yes
- Product Attributes - Intake Port Location
- Raised
- Product Attributes - Exhaust Port Location
- Raised
- Product Attributes - Spark Plug Style
- Angle
- Product Attributes - Intake Valves Included
- No
- Product Attributes - Exhaust Valves Included
- No
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 17
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Features a 0.400 in. raised intake port.. Tall deck engines will require manifold spacers.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede615468 |
| SFX Item ID | 4810073 |
| Supplier Item Code | 4810073 |
| Manufacturer SKU | 615468 |
| Manufacturer UPC | 85347997947 |
| Alternative References | EDL-615468, DR-17, 92cc |
