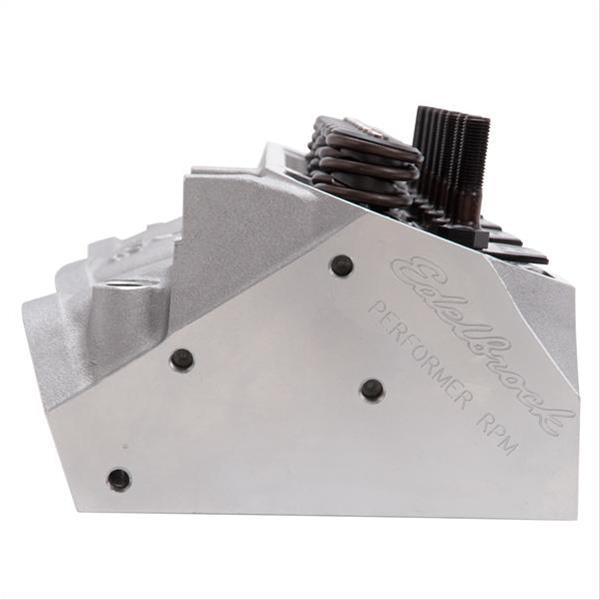

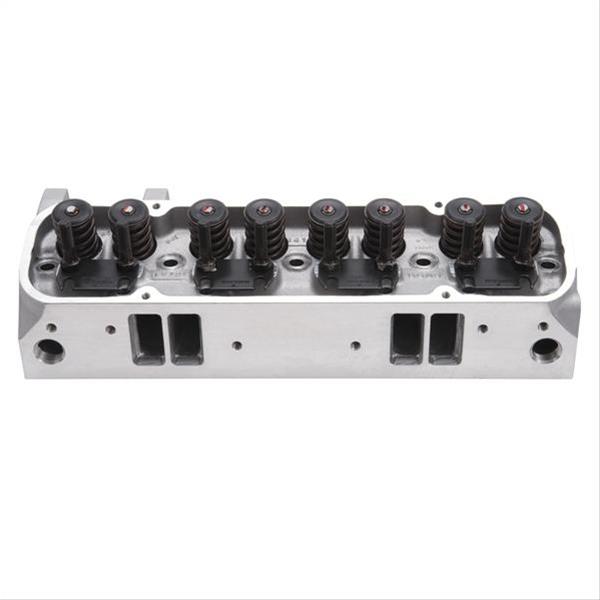

Edelbrock Cylinder Head Performer RPM CNC Pontiac 1962-1969 455 CI C8 72 cc Combustion Chamber
Edelbrock Cylinder Head Performer RPM CNC Pontiac 1962-1969 455 CI C8 72 cc Combustion Chamber
A$3,595.26
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The Edelbrock #61515 Performer RPM CNC Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. Performer RPM CNC cylinder head with 72cc chambers are best for higher compression engines. The Edelbrock #61515 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.
Product Overview
The Edelbrock #61515 Performer RPM CNC Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. Performer RPM CNC cylinder head with 72cc chambers are best for higher compression engines. The Edelbrock #61515 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.
Features and Benefits
- Thicker Deck Surfaces Than Other Brands
Product Details
| CNC Ported: | Yes |
|---|---|
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 72 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | Performer Series RPM Cylinder Head |
| EGR Port: | No |
| Emission: | N/A |
| Engine Make/Size: | Pontiac 326-455 |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 175 |
| Exhaust Valve Diameter: | 1.66 |
| Family: | Performer RPM |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Head Casting Number: | N/A |
| Horsepower: | 450-650 |
| Intake Runner Volume: | 215 |
| Intake Valve Diameter: | 2.11 |
| Material: | Aluminum |
| Part Number: | ede61515 |
| Preparation: | Bolt On (Not Required) |
| Push Rod Diameter: | (Suggested) 0.3125 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.4375 |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Performer RPM |
| Type: | Complete |
| Usage: | Street/Strip |
| Valve Angle: | 14 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.46 |
| Valve Spring Maximum Lift: | 0.575 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)
Part Type
Engine Cylinder Head
Features
- Thicker Deck Surfaces Than Other Brands
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 61515
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Performer RPM Pontiac CNC Cylinder Heads
- Product Attributes - UPC
- 085347615155
- Product Attributes - Combustion Chamber Volume (cc)
- 72
- Product Attributes - Intake Runner Volume (cc)
- 215cc
- Product Attributes - Exhaust Runner Volume (cc)
- 175cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic roller
- Product Attributes - Intake Valve Diameter (in.)
- 2.110 in.
- Product Attributes - CNC-Machined Combustion Chamber
- Yes
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Ram Air IV
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Straight
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.660 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.575 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.460 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Locks Included
- Yes
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 5/16 in.
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 14
- Product Attributes - Exhaust Valve Angle
- 14
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through head
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Equipped with springs for use in hydraulic roller camshafts applications. These heads require Ram Air IV (round port) style exhaust manifolds or headers and Edelbrock head bolt kit 8549.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede61515 |
| SFX Item ID | 4236691 |
| Supplier Item Code | 4236691 |
| Manufacturer SKU | 61515 |
| Manufacturer UPC | 85347615155 |
| Alternative References | 87cc;, v8;, EDB61515, EDL-61515 |
Brochures
Compatibility
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)
