Edelbrock Race Cyl Head Musi CNC BBC Victor 24Deg Complete

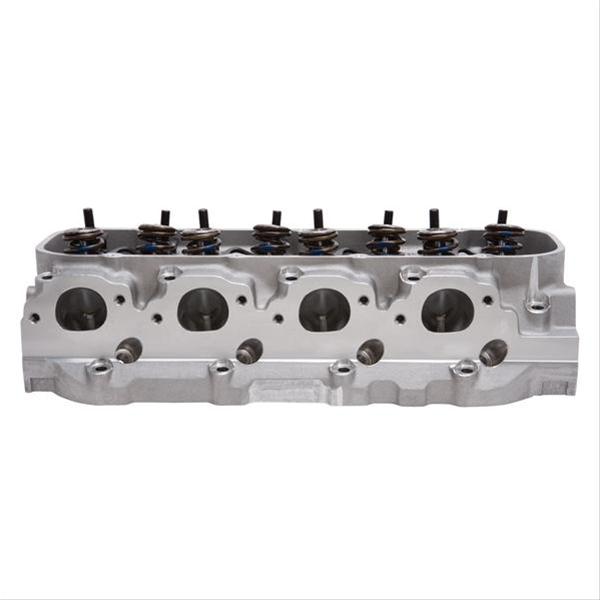

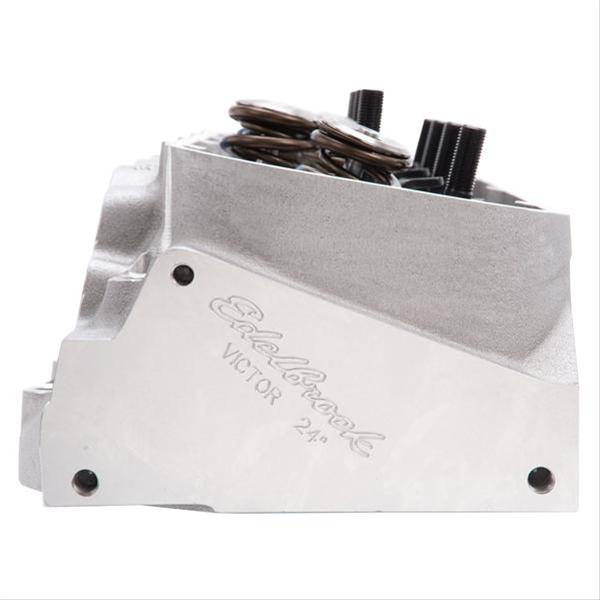

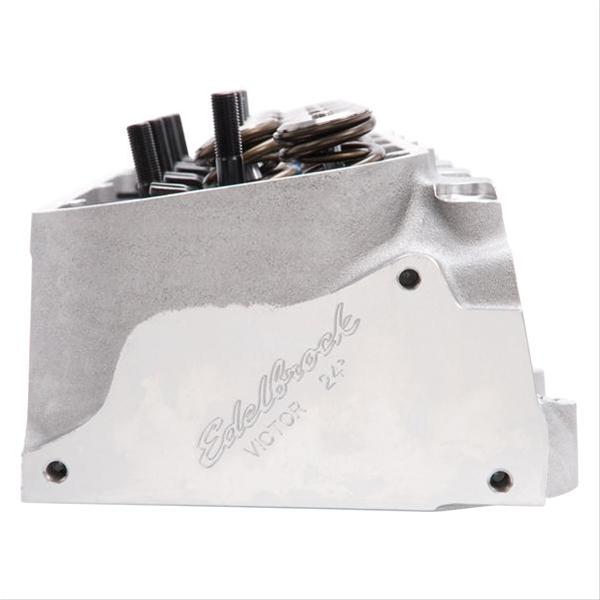

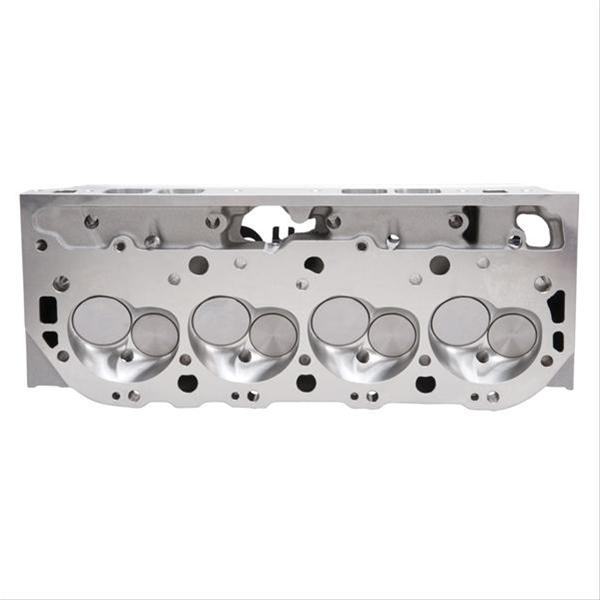

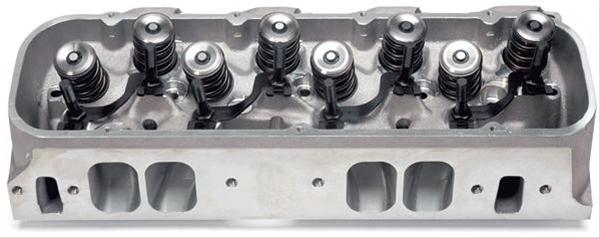

Edelbrock Race Cyl Head Musi CNC BBC Victor 24Deg Complete
Sale ends in Calculating...
A$3,895.28
A$6,266.82
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. The Edelbrock #61409 Victor 24deg CNC cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete cylinder head with Manley dual-spring valve springs and titanium retainers good for up to .880" lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flow - out-of-the-box. The exhaust port exits are raised .750" to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock.
Product Overview
Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. The Edelbrock #61409 Victor 24deg CNC cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete cylinder head with Manley dual-spring valve springs and titanium retainers good for up to .880" lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flow - out-of-the-box. The exhaust port exits are raised .750" to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock.
Features and Benefits
- 118cc Chamber; 367cc-377cc Intake Port
Product Details
| CNC Ported: | Yes |
|---|---|
| Camshaft Type: | Mechanical Roller |
| Combustion Chamber Volume: | 119 |
| Construction Type: | Complete |
| Cylinder Head Type: | Rectangular Port |
| Deck Thickness: | 0.5625 |
| Description: | Edelbrock/Musi Victor CNC Cylinder Head |
| EGR Port: | Yes |
| Emission: | Non-Emissions |
| Engine Make/Size: | Chevy Big Block (396-502) |
| Exhaust Port Location: | +0.500 |
| Exhaust Runner Volume: | 128 |
| Exhaust Valve Diameter: | 1.90 |
| Family: | Edelbrock/Musi |
| Finish: | Cast Aluminum |
| Flange Type: | Rectangle Intake |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Head Casting Number: | N/A |
| Horsepower: | 600-900 |
| Intake Runner Volume: | 377 |
| Intake Valve Diameter: | 2.30 |
| Material: | Aluminum |
| Part Number: | ede61409 |
| Preparation: | Factory CNC Ported |
| Push Rod Diameter: | (Suggested) 0.375 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.4375 |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Edelbrock/Musi |
| Type: | Complete |
| Usage: | Competition |
| Valve Angle: | 24 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.635 |
| Valve Spring Maximum Lift: | 0.880 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Big-Block Race
Part Type
Engine Cylinder Head
Features
- 118cc Chamber; 367cc-377cc Intake Port
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 61409
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Musi/Victor 24 Degree CNC-Machined Cylinder Heads
- Product Attributes - UPC
- 085347614097
- Product Attributes - Combustion Chamber Volume (cc)
- 119
- Product Attributes - Intake Runner Volume (cc)
- 367cc/377cc
- Product Attributes - Exhaust Runner Volume (cc)
- 128cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Solid roller
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 2.300 in.
- Product Attributes - CNC-Machined Combustion Chamber
- Yes
- Product Attributes - CNC-Machined Intake Runner
- Yes
- Product Attributes - CNC-Machined Exhaust Runner
- Yes
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Round
- Product Attributes - Exhaust Port Location
- Raised
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.900 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.880 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.635 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Titanium
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 10 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arm Nut Thread Size
- 7/16 in.-20
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 3/8 in.
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 24
- Product Attributes - Exhaust Valve Angle
- 24
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede61409 |
| SFX Item ID | 4237323 |
| Supplier Item Code | 4237323 |
| Manufacturer SKU | 61409 |
| Manufacturer UPC | 85347614097 |
| Alternative References | v8;, EDB61409, EDL-61409, 24Deg |
