Edelbrock Cylinder Head BBC BV3 Pro Port Hipd 11 Deg Intake Valve Extended Exhaust Flange

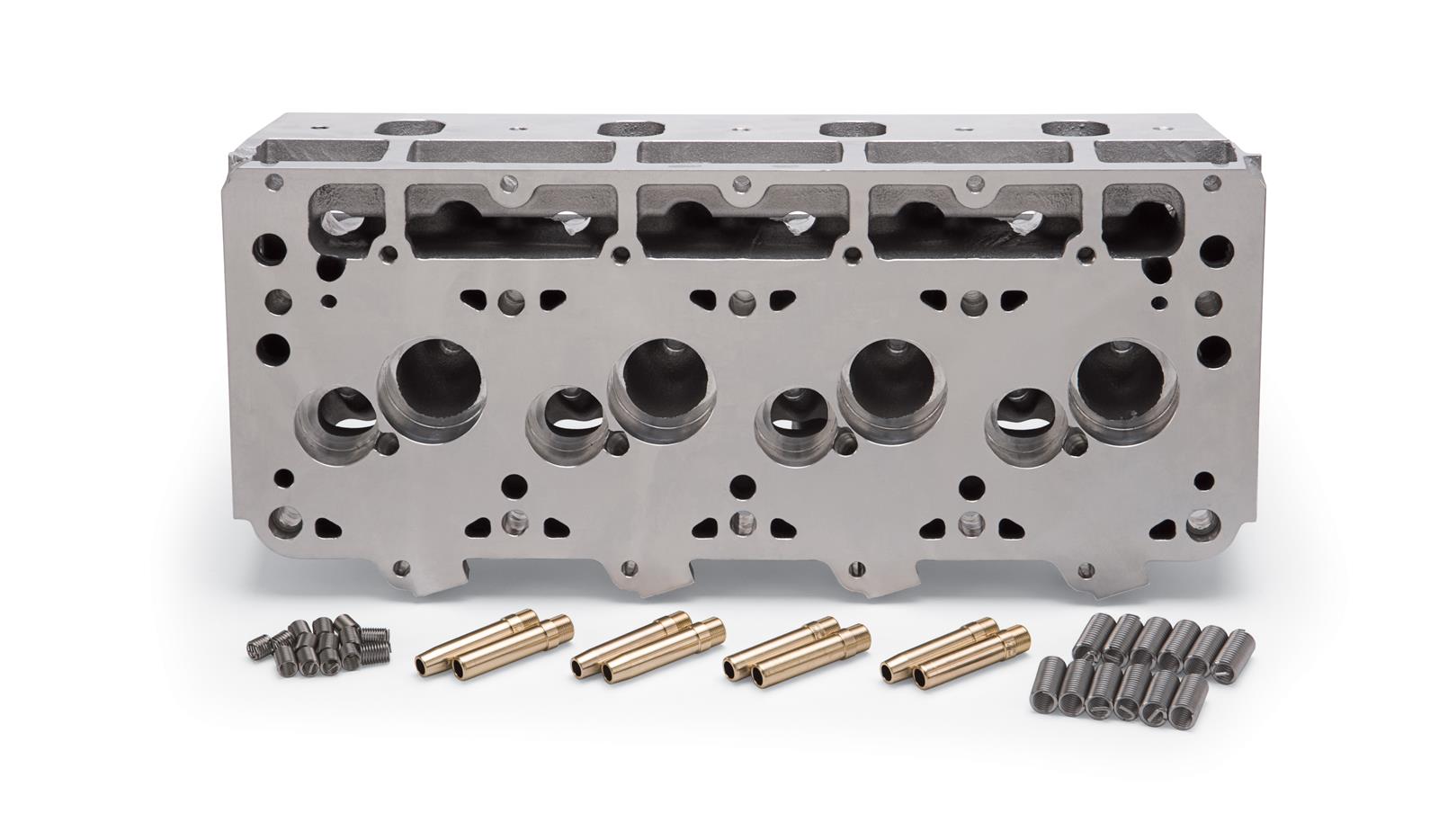

Edelbrock Cylinder Head BBC BV3 Pro Port Hipd 11 Deg Intake Valve Extended Exhaust Flange
A$5,923.23
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Edelbrock Part #613669 is a Pro Port head that requires professional porting prior to use since the ports and chambers are deliberately undersize to permit a wide variety of end applications. The head has an 11" intake valve angle and is intended for high output, large cubic inch, 4.84" bore spacing (stock) big block Chevrolet racing engines. The 613669 employs a symmetrical port head architecture similar to the Pro Stock DRCE3. The head is treated with the HIP strengthening process, prior to machining, to insure the finest casting possible. This version has an extended flange which will likely require a new exhaust system or changes to a standard flange header.FEATURES:- Port Entry Int. / Exh 2.52" x 2.15" / 1.84" x 1.50"- Exhaust runner volume: 80cc- Intake valve diameter: 2.600"- Exhaust valve diameter: 1.94"- Deck thickness: 5/8"- Valve spring diameter: 1.30"- Valve spring maximum lift: .680"- Valve angle: 11deg- Exhaust port location: 0.125" Raised Port- Spark plug fitment: 14mm x 3/4 reach, gasket seat- Heli-coiled exhaust bolt holes- Tipped entry oval intake port opening- Unique cooling flow for better durability and consistency- Intake manifold and valley cover plates available for regular and tall deck blocks- Hot Isostatic Pressed (HIP process) for improved strength- Effective internal oil drainage plus available external oil drains- Versatile cooling system options for a variety of applications- Seats installed with underside guide bores at .375".502" Guides are included but will not be installed.
Product Overview
Edelbrock Part #613669 is a Pro Port head that requires professional porting prior to use since the ports and chambers are deliberately undersize to permit a wide variety of end applications. The head has an 11" intake valve angle and is intended for high output, large cubic inch, 4.84" bore spacing (stock) big block Chevrolet racing engines. The 613669 employs a symmetrical port head architecture similar to the Pro Stock DRCE3. The head is treated with the HIP strengthening process, prior to machining, to insure the finest casting possible. This version has an extended flange which will likely require a new exhaust system or changes to a standard flange header. FEATURES: - Port Entry Int. / Exh 2.52" x 2.15" / 1.84" x 1.50" - Exhaust runner volume: 80cc - Intake valve diameter: 2.600" - Exhaust valve diameter: 1.94" - Deck thickness: 5/8" - Valve spring diameter: 1.30" - Valve spring maximum lift: .680" - Valve angle: 11deg - Exhaust port location: 0.125" Raised Port - Spark plug fitment: 14mm x 3/4 reach, gasket seat - Heli-coiled exhaust bolt holes - Tipped entry oval intake port opening - Unique cooling flow for better durability and consistency - Intake manifold and valley cover plates available for regular and tall deck blocks - Hot Isostatic Pressed (HIP process) for improved strength - Effective internal oil drainage plus available external oil drains - Versatile cooling system options for a variety of applications - Seats installed with underside guide bores at .375".502" Guides are included but will not be installed.
Features and Benefits
- Big Victor Raw Cylinder Head
Product Details
| Cylinder Head Type: | Standard |
|---|---|
| Description: | Big Victor 3 Pro-Port™ Raw Cylinder Head |
| Emission: | Non-Emissions |
| Engine Make/Size: | Chevy Big Block (396-502) |
| Finish: | Cast |
| Part Number: | ede613669 |
| Preparation: | Requires Professional Preparation (Bare) |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Type: | Bare |
| Usage: | Racing |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Big-Block Race
Part Type
Engine Cylinder Head
Features
- Big Victor Raw Cylinder Head
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 613669
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Big Victor 3 Pro-Port 11 Degree HIP Cylinder Heads
- Product Attributes - UPC
- 085347996605
- Product Attributes - Cylinder Head Style
- Bare
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Intake Valve Diameter (in.)
- 2.600 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Valves Included
- No
- Product Attributes - Exhaust Valves Included
- No
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.940 in.
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- No
- Product Attributes - Intake Valve Angle
- 11
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Bronze
- Product Attributes - Valve Seats Machined
- No
- Product Attributes - Valve Seat Machine Style
- Un-machined seat
- Product Attributes - Valve Seat Material
- Copper bronze alloy
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- These heads have an extended exhaust flange and will require Professional CNC machining, Valve guides are included but not installed. intended for high output, large cubic inch, 4.84” bore spacing (stock) big block Chevrolet racing engines.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede613669 |
| SFX Item ID | 4237526 |
| Supplier Item Code | 4237526 |
| Manufacturer SKU | 613669 |
| Manufacturer UPC | 85347996605 |
| Alternative References | v8;, EDB613669, EDL-613669, BV3 |
