Edelbrock Cylinder Head Chrysler 426-572 Hemi Bare Single
Edelbrock Cylinder Head Chrysler 426-572 Hemi Bare Single
A$3,160.99
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description

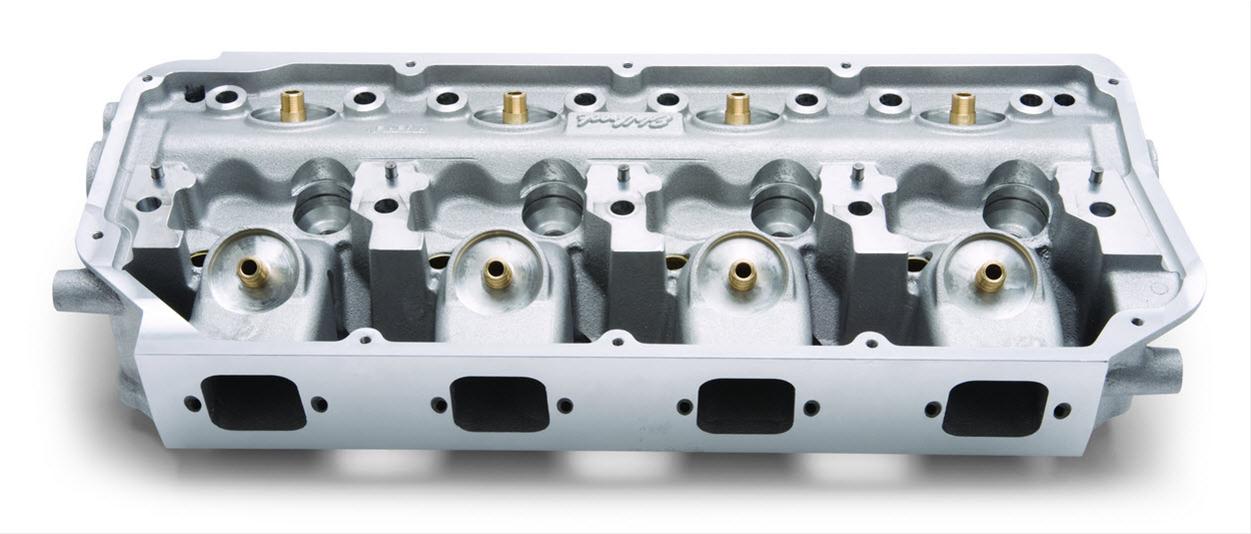

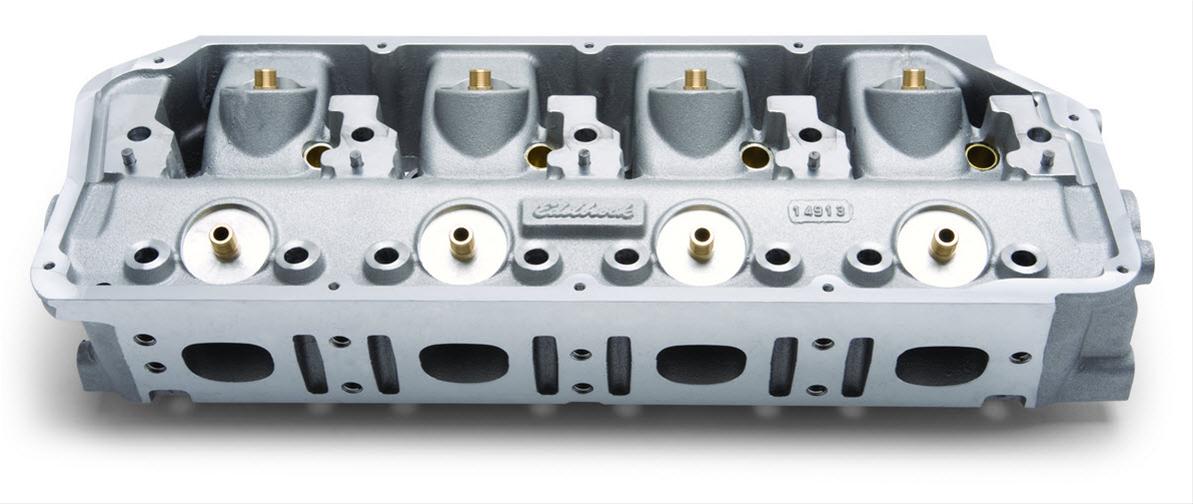

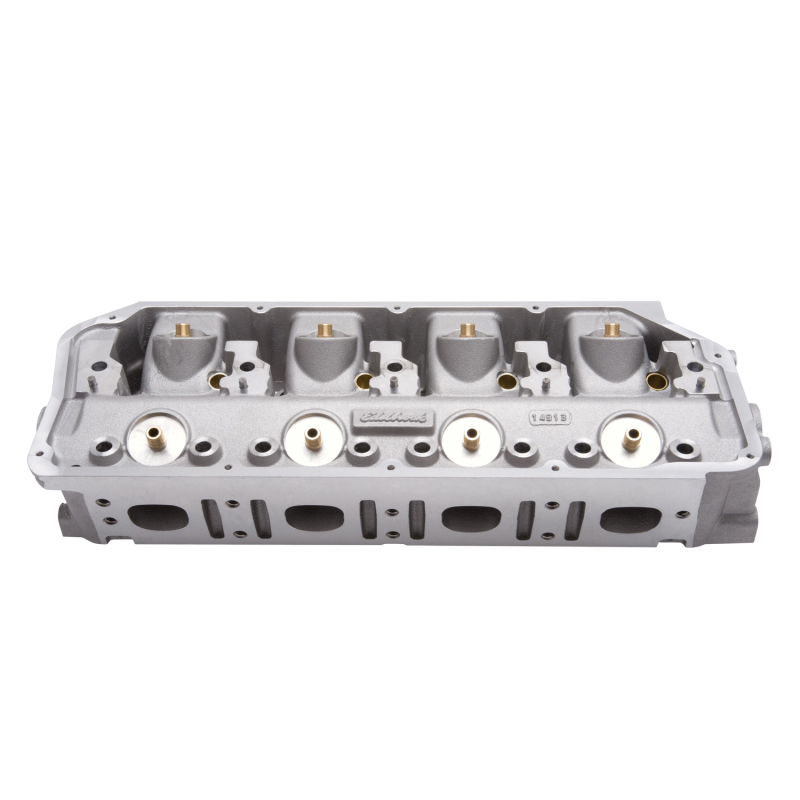

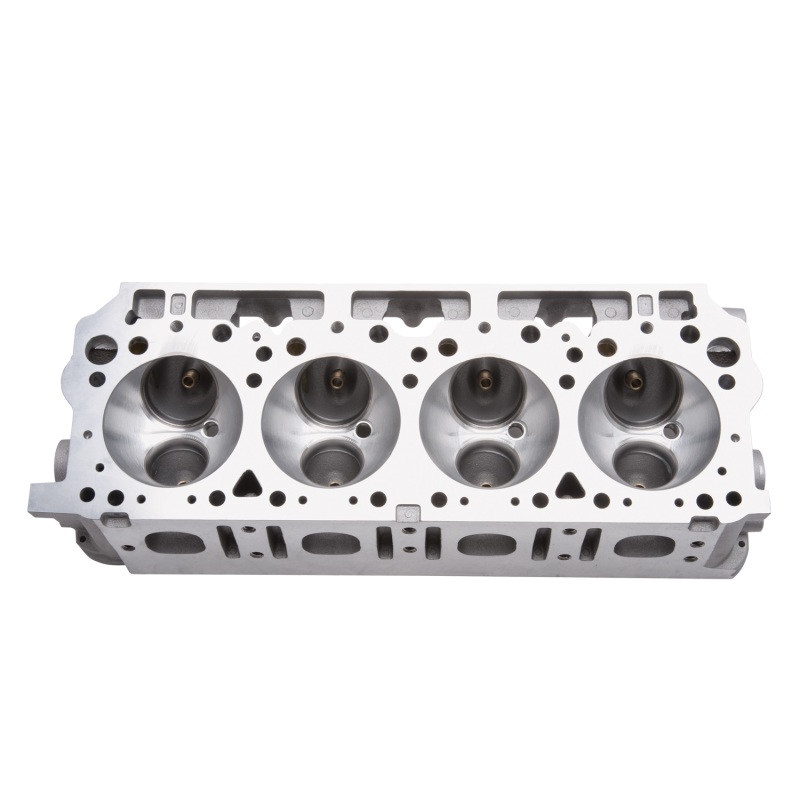

Our new Edelbrock #61169 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Product Overview
Our new Edelbrock #61169 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Features and Benefits
- Revised Exhaust Valve Angle
Product Details
| CNC Ported: | Yes |
|---|---|
| Combustion Chamber Volume: | 170 |
| Construction Type: | Bare |
| Cylinder Head Type: | Rectangular Port |
| Deck Thickness: | 0.625 |
| Description: | Victor Jr. Series Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Mopar 426-572 Hemi |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 105 |
| Family: | Victor Jr. |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Intake Runner Volume: | 245 |
| Material: | Aluminum |
| Part Number: | ede61169 |
| Preparation: | Requires Professional Preparation (Bare) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | No |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Victor Jr. |
| Type: | Bare |
| Usage: | Racing |
| Valve Angle: | Exhaust (Tipped) 1.5-21.5 deg/Intake Stock |
| Valve Included: | No |
| Valve Springs Included: | No |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chrysler:Big-Block Gen II HEMI:426 (7.0L)
Part Type
Engine Cylinder Head
Features
- Revised Exhaust Valve Angle
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 61169
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Victor Jr. CNC Chrysler Cylinder Heads
- Product Attributes - UPC
- 085347611690
- Product Attributes - Combustion Chamber Volume (cc)
- 170
- Product Attributes - Intake Runner Volume (cc)
- 245cc
- Product Attributes - Exhaust Runner Volume (cc)
- 105cc
- Product Attributes - Cylinder Head Style
- Bare
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - CNC-Machined Combustion Chamber
- Yes
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Square
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Straight
- Product Attributes - Intake Valves Included
- No
- Product Attributes - Exhaust Valves Included
- No
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Valve Guides Included
- No
- Product Attributes - Valve Seats Machined
- No
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- These heads are supplied with reamed and semi-finished valve stem guides. They will require finishing on the valve stem guides and a valve job before installation.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede61169 |
| SFX Item ID | 4236859 |
| Supplier Item Code | 4236859 |
| Manufacturer SKU | 61169 |
| Manufacturer UPC | 85347611690 |
| Alternative References | v8;, EDB61169, EDL-61169 |
Brochures
Compatibility
Chrysler:Big-Block Gen II HEMI:426 (7.0L)
